Exhaust Gas Recirculation (EGR) Valve - 5.4L (2V): Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The EGR valve sealing surfaces are soft metals.

Carefully clean both sealing surfaces.
- Install a new EGR gasket and the EGR valve.
Install the EGR valve.
- Tighten the bolts in two stages.
  - Stage 1: Tighten the bolts to 20 Nm (15 lb-ft).
  - Stage 2: Tighten the bolts an additional 90 degrees.

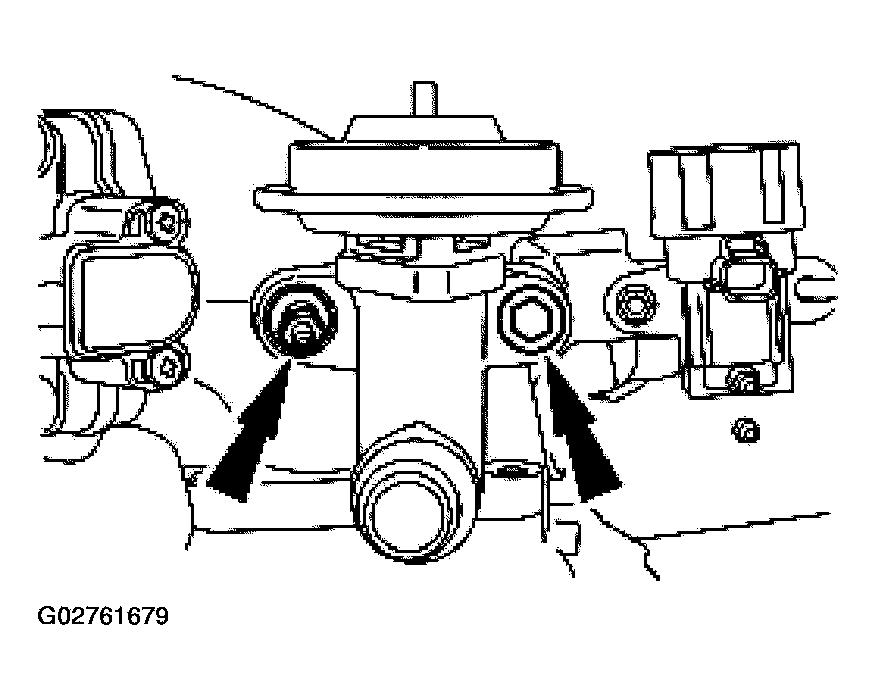

Fig 1: Tightening EGR Valve Bolts
Courtesy of FORD MOTOR CO.
Connect the EGR valve tube upper fitting and EGR vacuum hose.

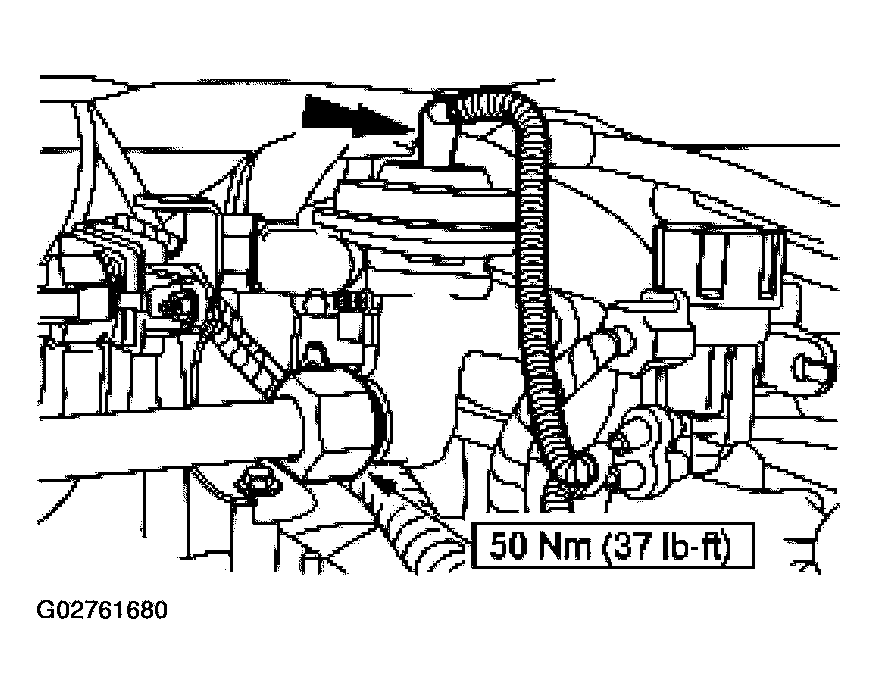

Fig 2: Connecting EGR Valve Tube Upper Fitting
Courtesy of FORD MOTOR CO.
Install the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
