Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the differential pressure feedback exhaust gas recirculation (EGR) system.
1. Disconnect the electrical connector.
2. Disconnect the hoses.
3. Remove the bolts (nuts if applicable).

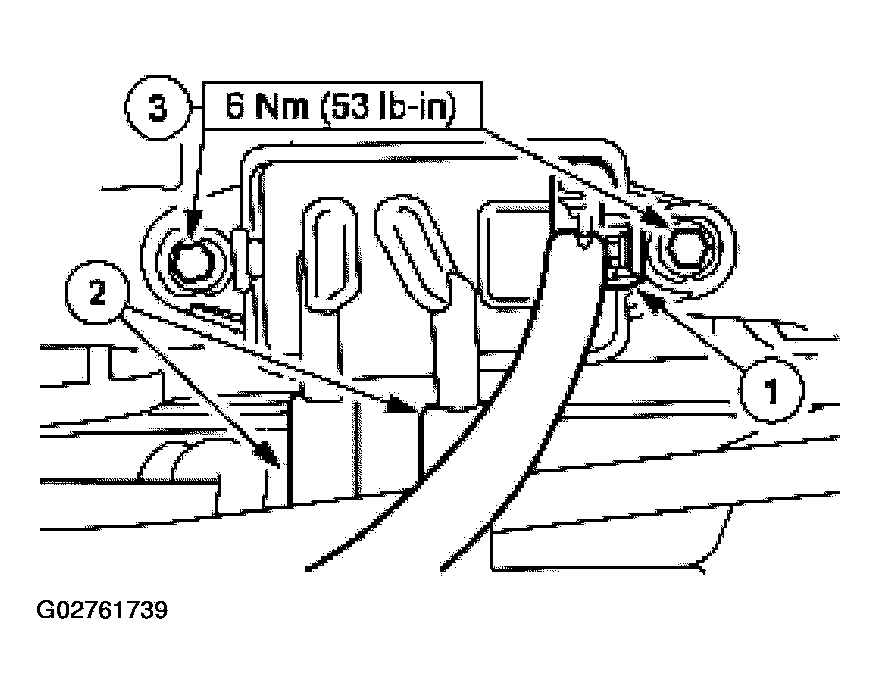

Fig 1: Removing Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
