Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Disconnect the ignition coil electrical connector.

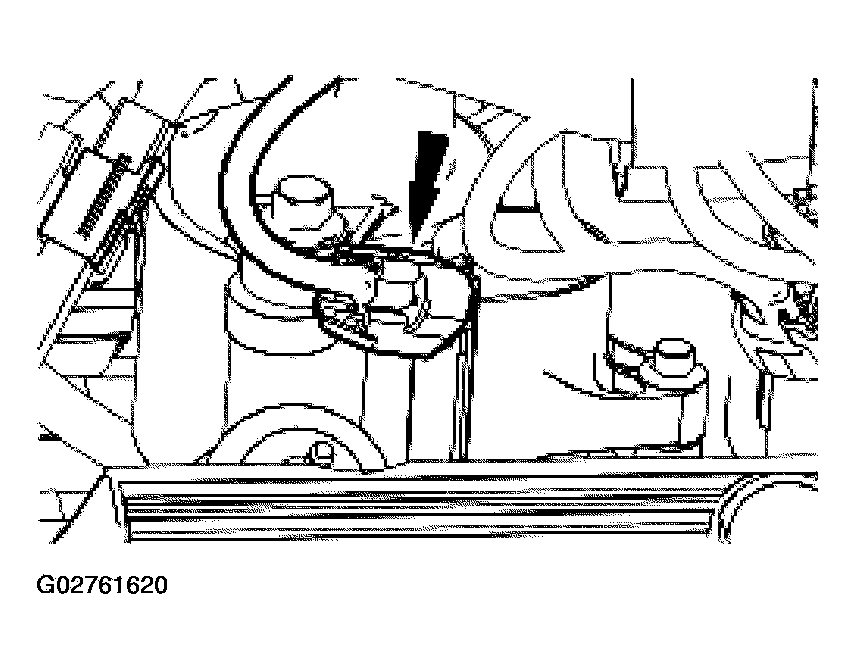

    Fig 1: Disconnecting Ignition Coil Electrical Connector
    G02761620Courtesy of FORD MOTOR CO.
  4. Remove the bolt and the ignition coil.

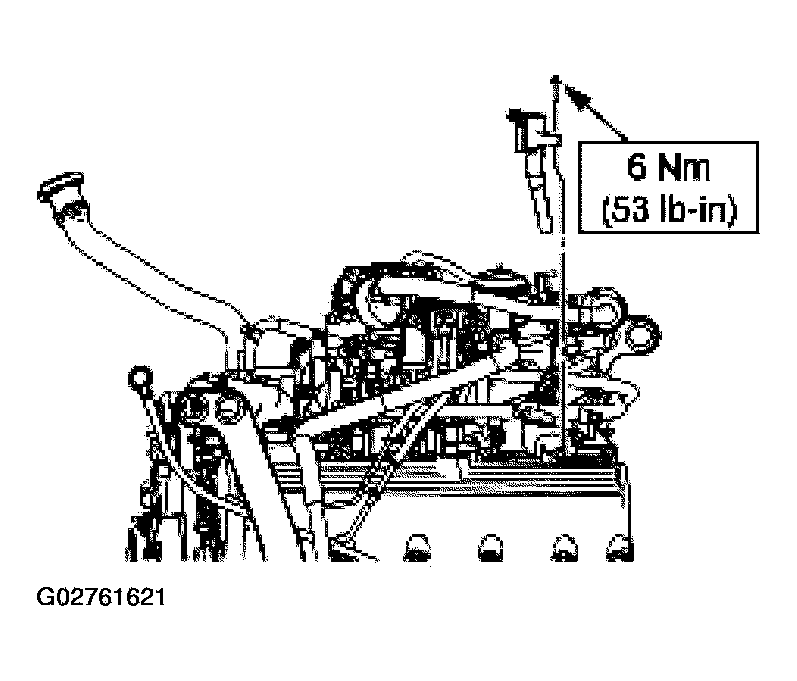

    Fig 2: Removing Bolt And Ignition Coil
    G02761621Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    • Apply Dielectric compound to the inside of the coil boots.
