Inspection and Verification

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern.
  2. Inspect the entire turbocharger system for obvious signs of damage, using the following chart.

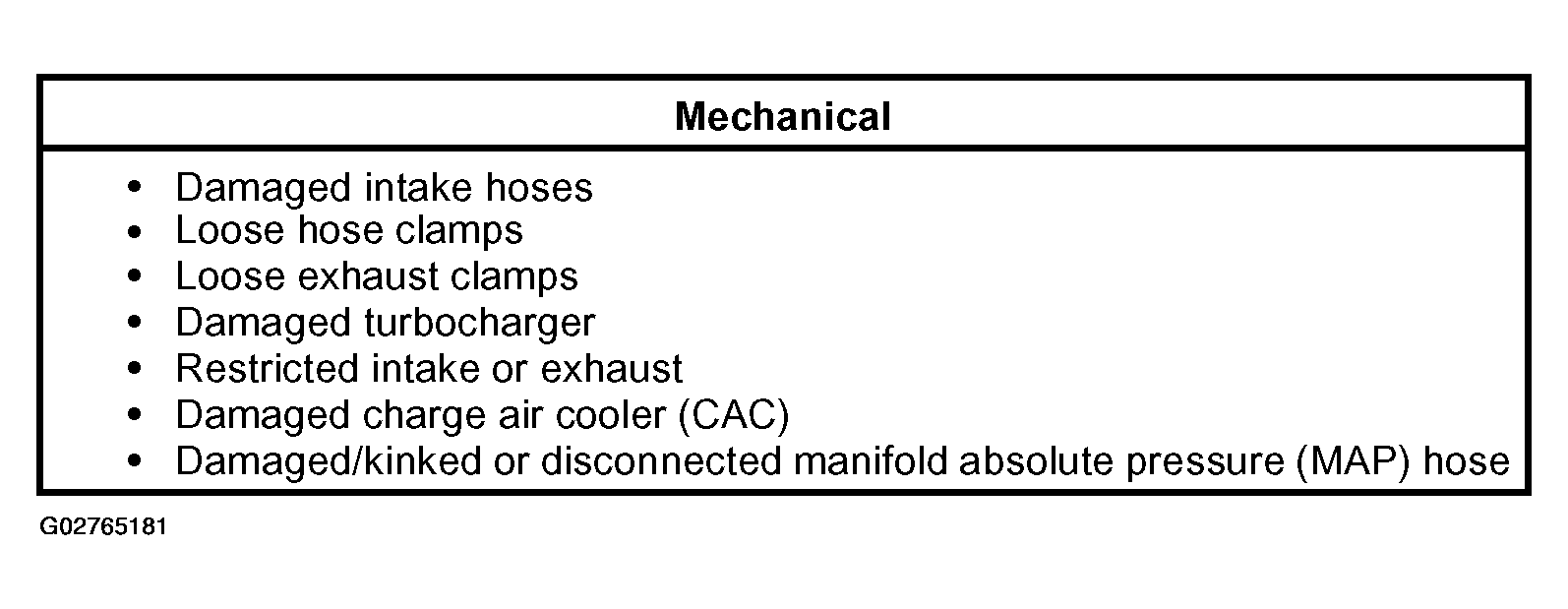

    Fig 1: Visual Inspection Chart
    G02765181Courtesy of FORD MOTOR CO.
  3. If the concern(s) remains after the inspection, GO to SYMPTOM CHART .
