Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

NOTE: Gas engines will only have one coolant hose.

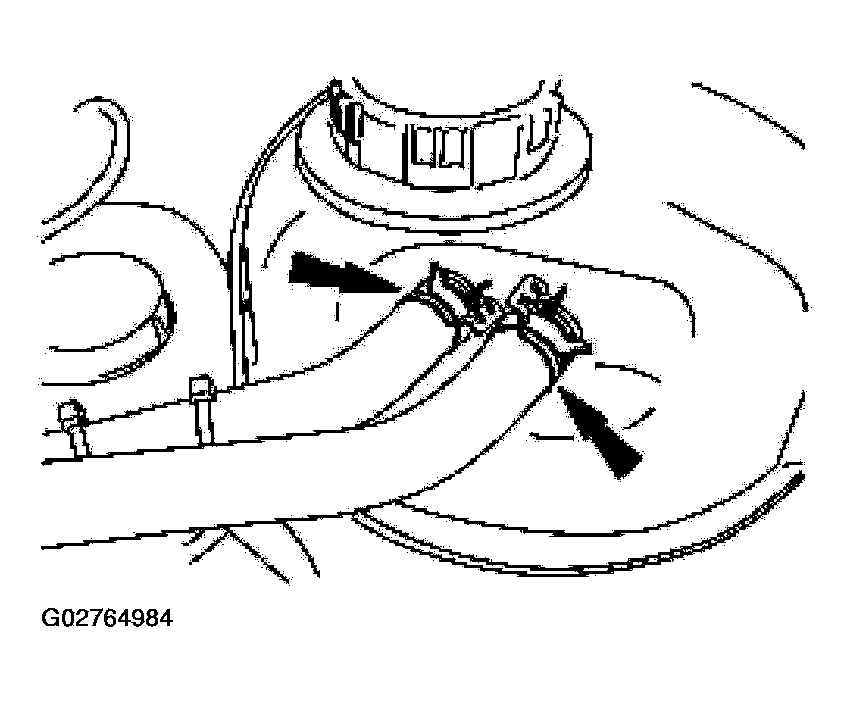

Fig 1: Disconnecting Coolant Hoses At Degas Bottle

Courtesy of FORD MOTOR CO.

Disconnect the coolant hoses at the degas bottle.
Remove the bolts and position out the degas bottle.

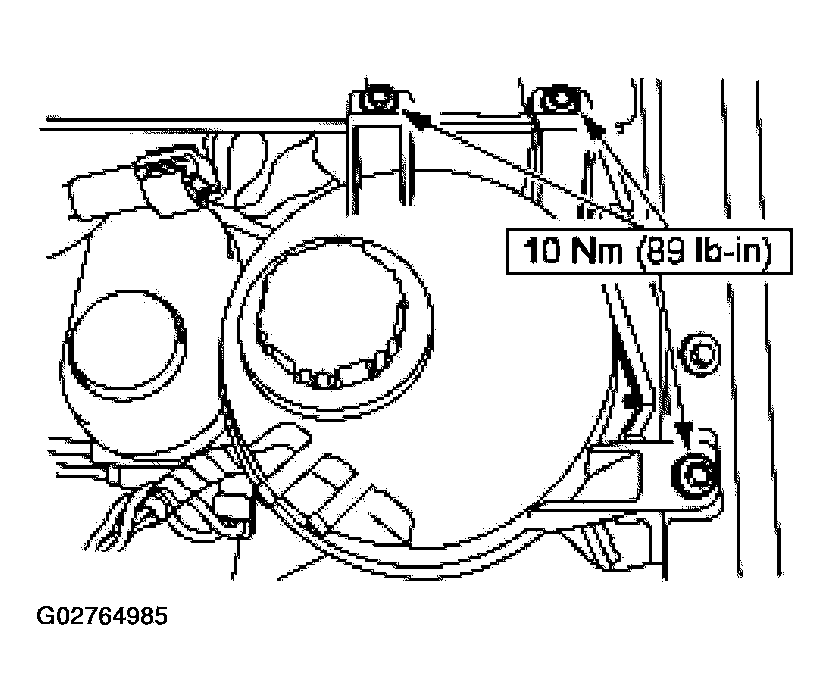

Fig 2: Identifying Loosening Torque Of Degas Bottle Bolts
Courtesy of FORD MOTOR CO.
Disconnect the engine fill tube and remove the degas bottle.

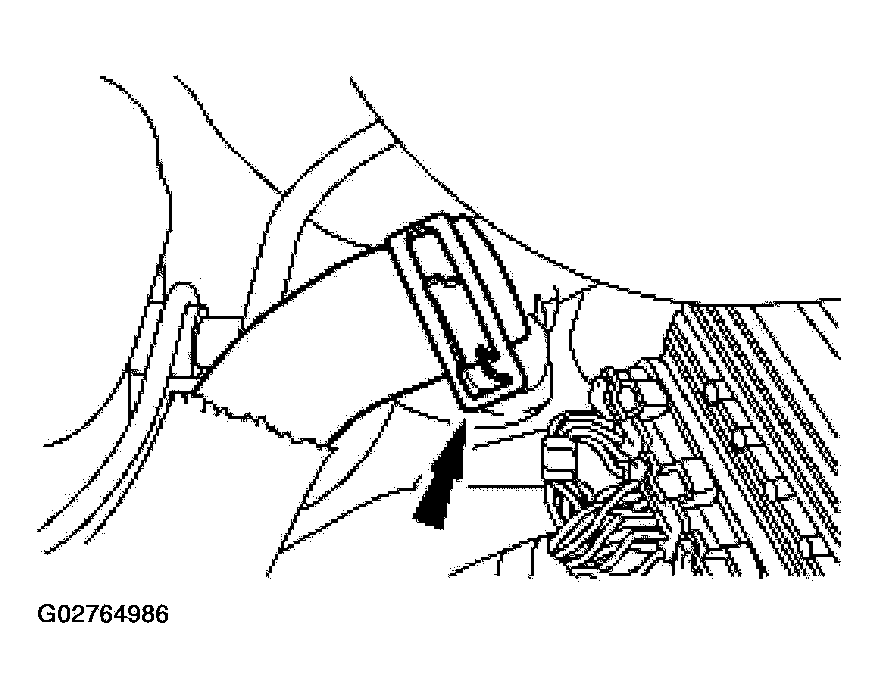

Fig 3: Disconnecting Engine Fill Tube
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
