Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator. For additional information, refer to RADIATOR - 6.0L Diesel .
Disconnect the electrical connector. Release the wiring from the stator.

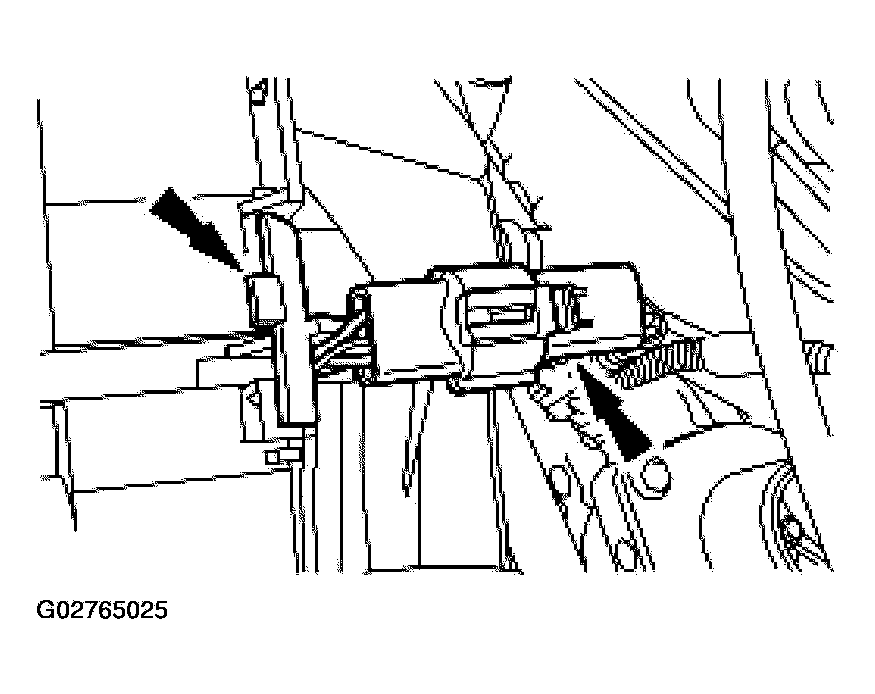

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Use a hole in the fan hub to prevent the fan from turning.

Fig 2: Identifying Loosening Torque Of Cooling Fan & Clutch (6.0L Diesel)

Courtesy of FORD MOTOR CO.

Using the special tool, loosen the fan clutch by turning the wrench counterclockwise. Remove the cooling fan and clutch.
Remove the bolts and cooling fan stator assembly.

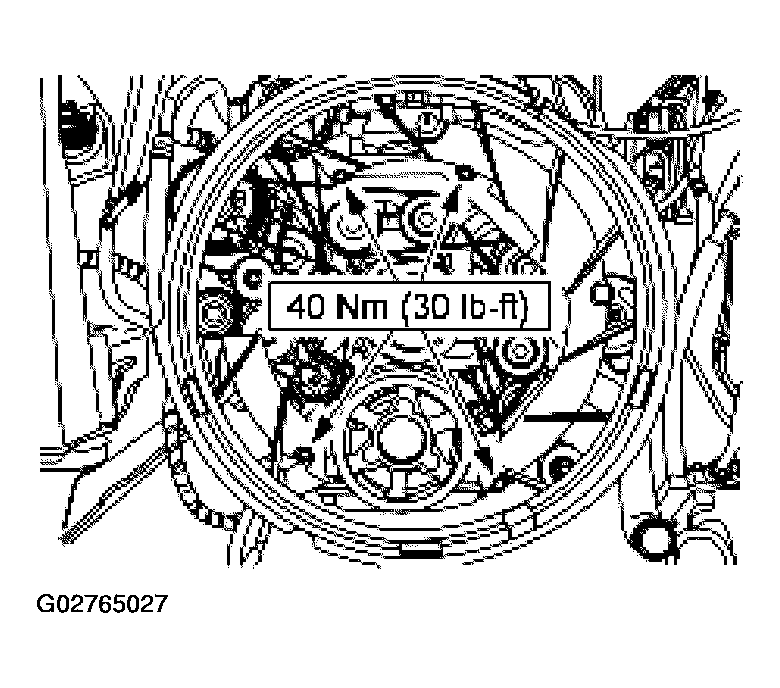

Fig 3: Identifying Loosening Torque Of Cooling Fan Stator Assembly (6.0L Diesel)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
