Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cooling fan stator. For additional information, refer to COOLING FAN STATOR - 6.0L DIESEL .
Remove the accessory drive belt.

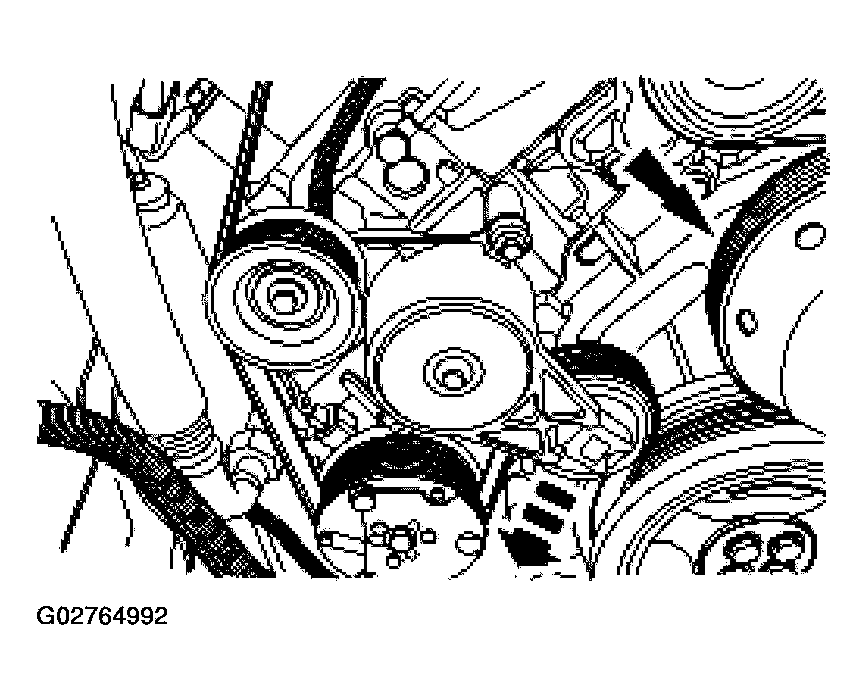

Fig 1: Removing Accessory Drive Belt (6.0L Diesel)
Courtesy of FORD MOTOR CO.
Remove the bolts and the coolant pump pulley.

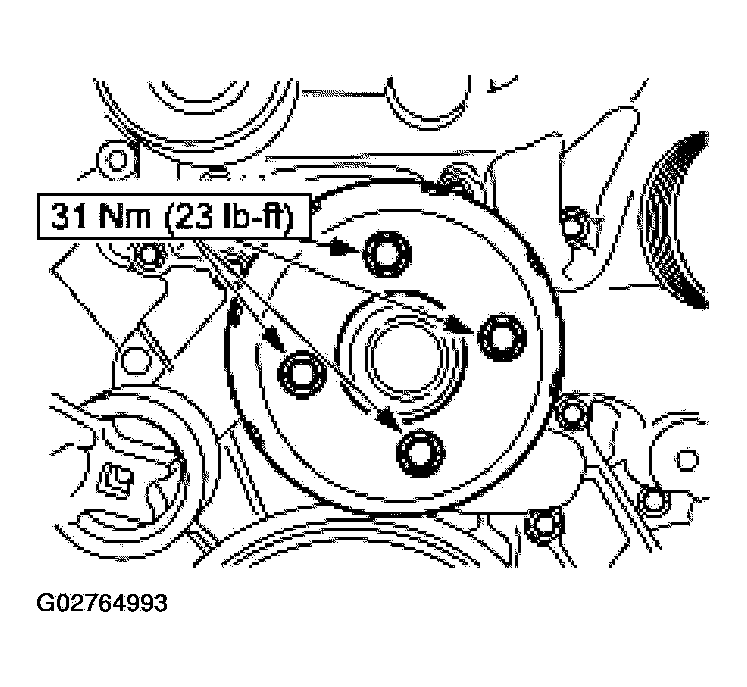

Fig 2: Identifying Loosening Torque Of Coolant Pump Pulley Bolt (6.0L Diesel)
Courtesy of FORD MOTOR CO.
Remove the bolts and the coolant pump.
- Remove and discard the O-ring seal.

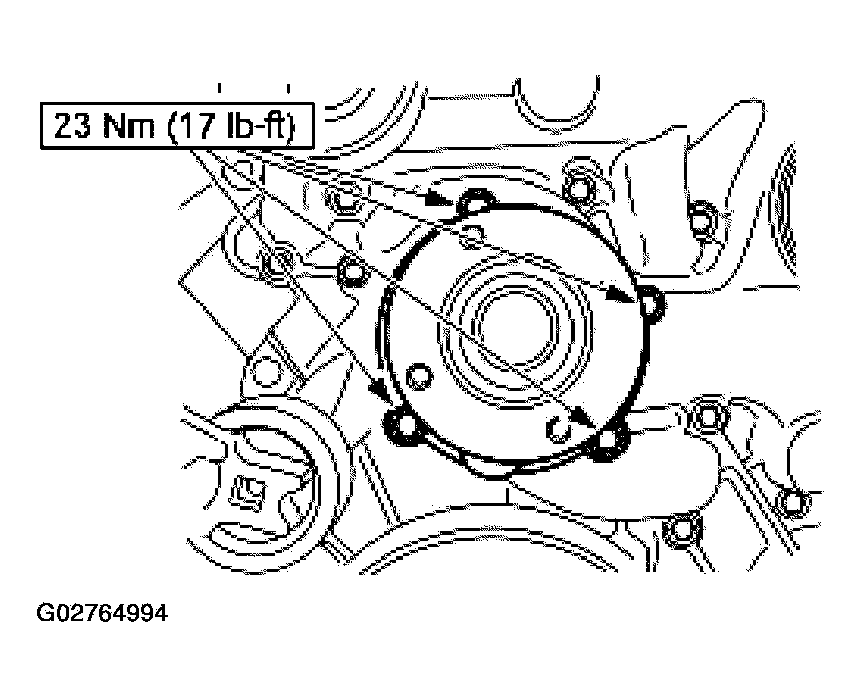

Fig 3: Identifying Loosening Torque Of Coolant Pump Bolts (6.0L Diesel)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Clean and inspect the coolant pump mounting.
