Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator. For additional information, refer to RADIATOR - 6.0L DIESEL .
Remove the push pin and radiator air deflector.

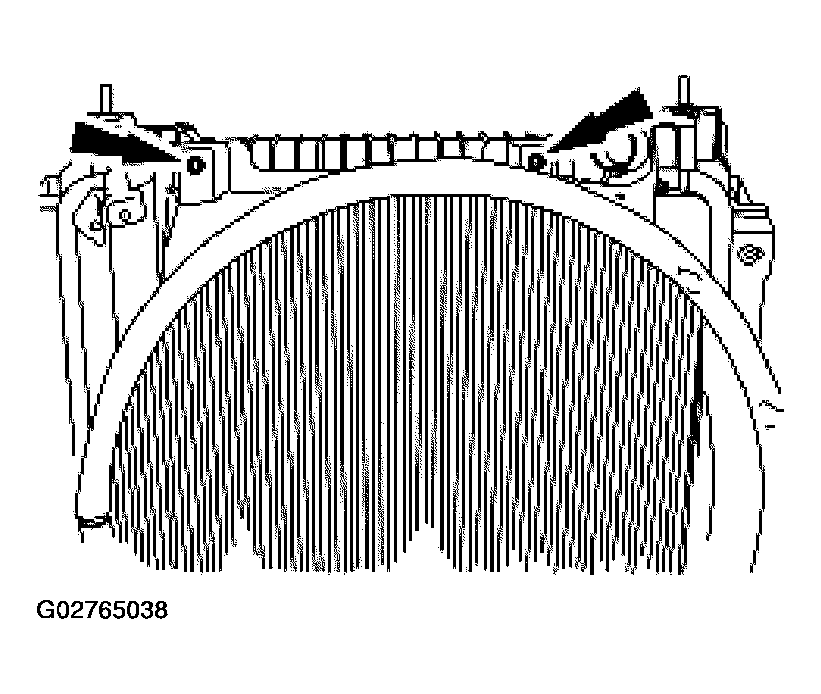

Fig 1: Removing Push Pin & Radiator Air Deflector (6.0L Diesel)
Courtesy of FORD MOTOR CO.
Remove the bolts and fan shroud.

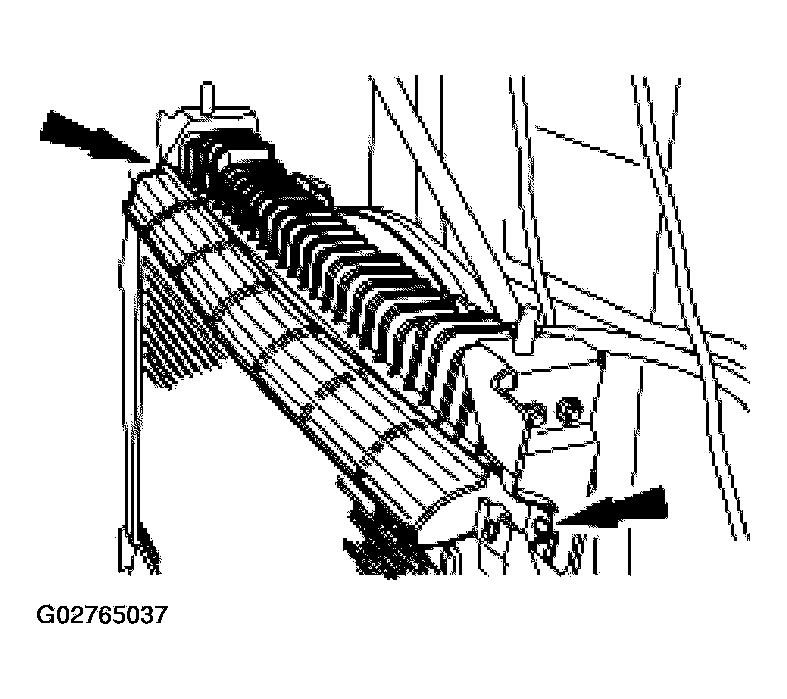

Fig 2: Removing Fan Shroud (6.0L Diesel)
Courtesy of FORD MOTOR CO.
Remove the bolts and separate the charge air cooler from the radiator.

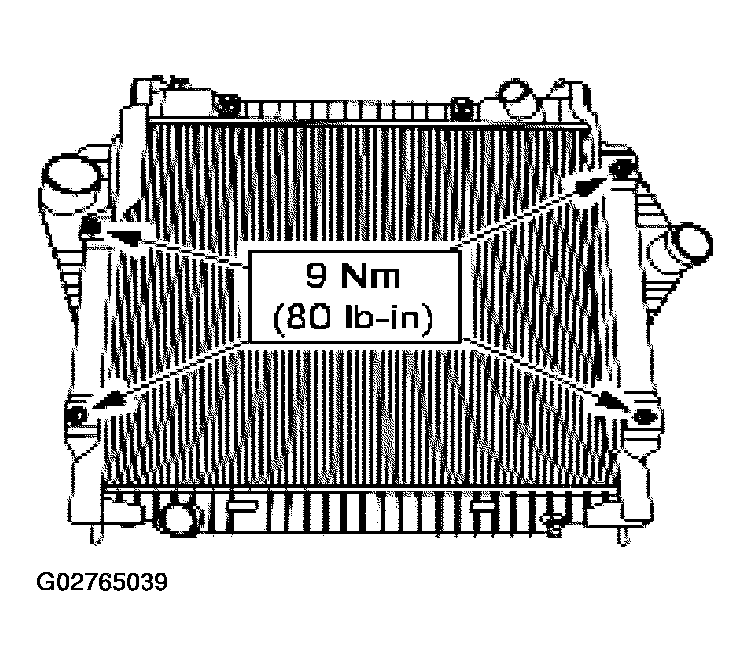

Fig 3: Loosening Torque For Bolts Separating Air Cooler From Radiator (6.0L Diesel)
Courtesy of FORD MOTOR CO.

NOTE: Right side shown, left side similar.

Fig 4: Loosening Torque For Radiator Bracket Bolts

Courtesy of FORD MOTOR CO.

Remove the bolts and brackets from the radiator.
To assemble, reverse the disassembly procedure.
- Install the LH bolts first, for alignment of the charge air cooler to the radiator.
