Pinpoint Test B: The Engine Overheats

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

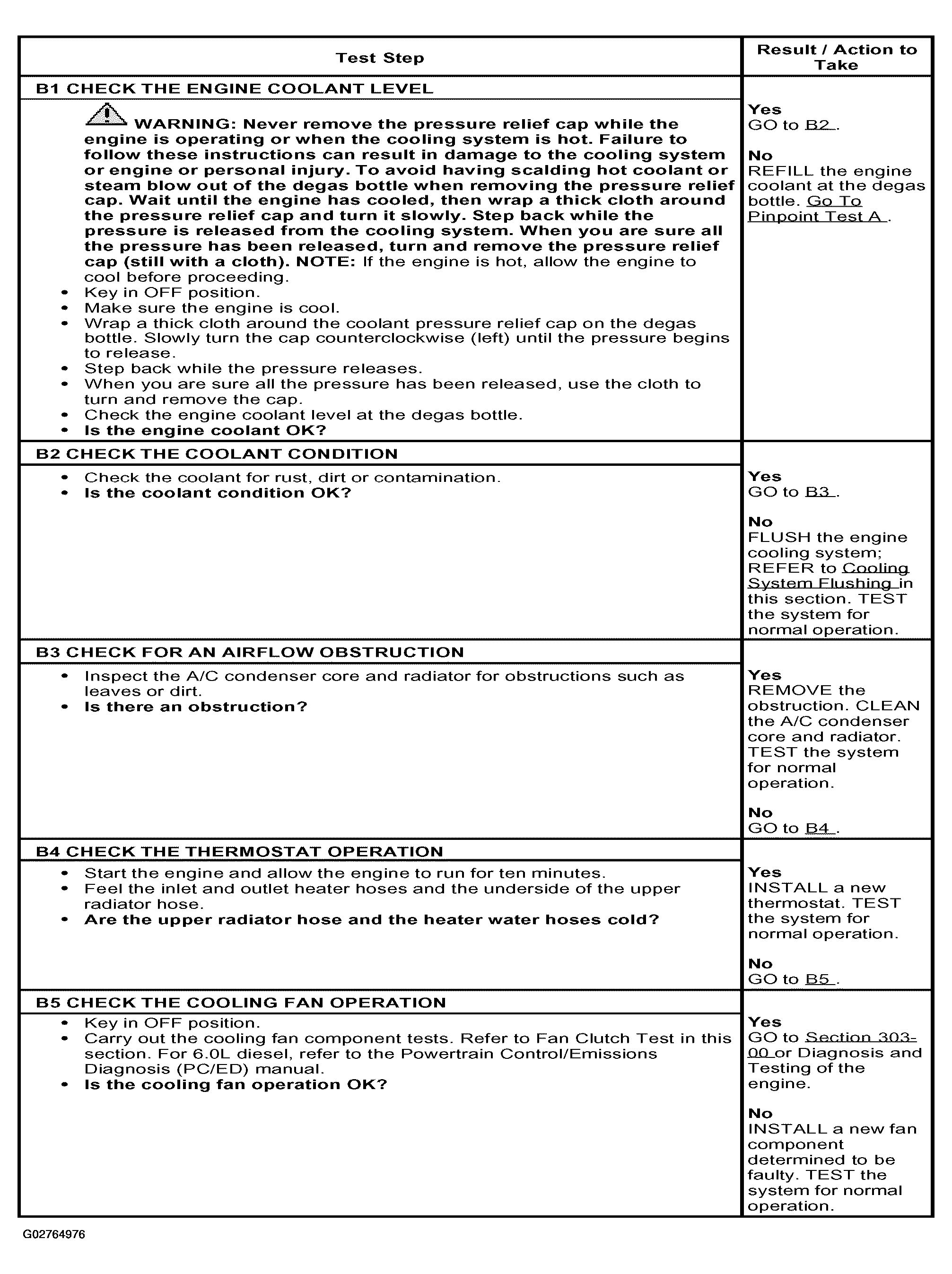

Fig 1: Pinpoint Test B: The Engine Overheats
G02764976Courtesy of FORD MOTOR CO.
