Valve Cover - RH: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Remove the engine air cleaner and the air cleaner outlet tube. For additional information, Refer to INTAKE AIR DISTRIBUTION & FILTERING .
  4. Disconnect the oil fill tube from the RH valve cover.

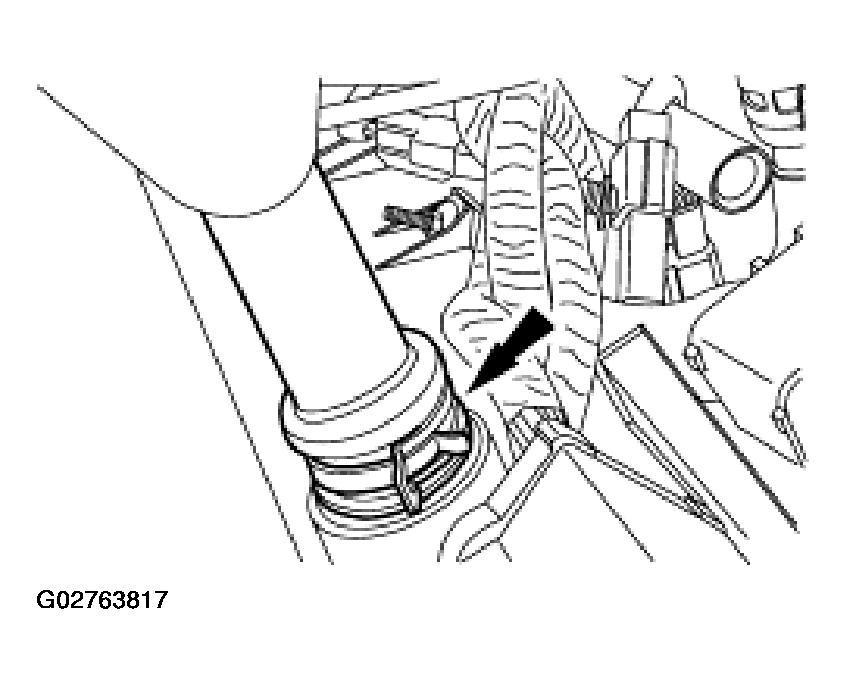

    Fig 1: Disconnecting Oil Fill Tube From RH Valve Cover
    G02763817Courtesy of FORD MOTOR CO.
  5. Remove the bolt and the oil fill tube.

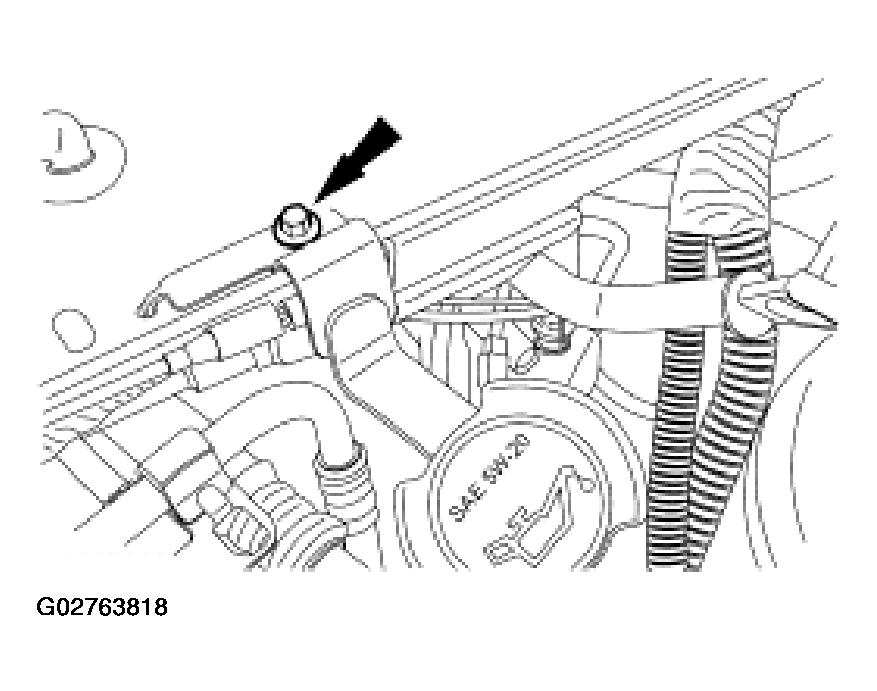

    Fig 2: Removing Bolt And Oil Fill Tube
    G02763818Courtesy of FORD MOTOR CO.
  6. Disconnect the positive crankcase ventilation (PCV) electrical connector and tube.

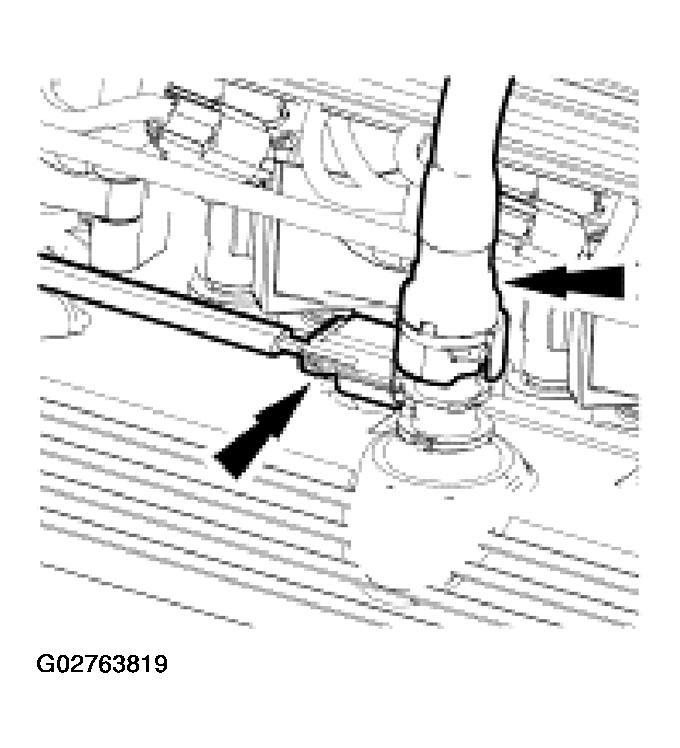

    Fig 3: Disconnecting Positive Crankcase Ventilation (PCV) Electrical Connector And Tube
    G02763819Courtesy of FORD MOTOR CO.
  7. Disconnect the wiring harness retainer from the RH valve cover stud.

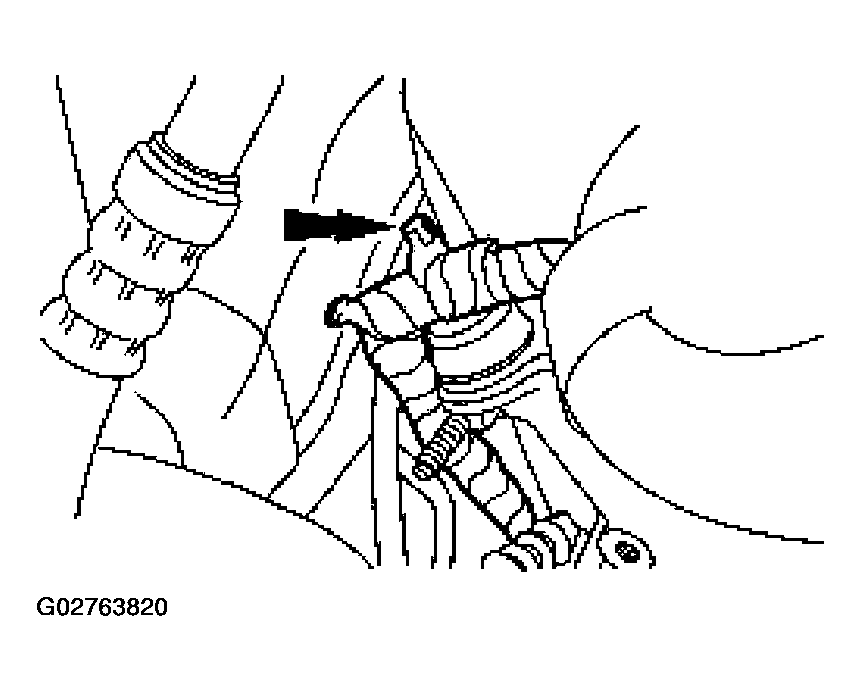

    Fig 4: Disconnecting Wiring Harness Retainer From RH Valve Cover Stud
    G02763820Courtesy of FORD MOTOR CO.
  8. Remove the nuts and position the RH fuel charge wiring harness aside.

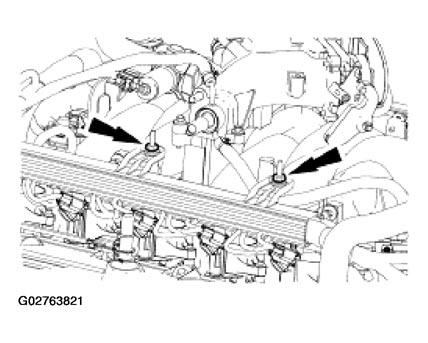

    Fig 5: Removing Fuel Charge Wiring Harness Nuts
    G02763821Courtesy of FORD MOTOR CO.
    9. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    NOTE: The bolts are part of the valve cover and cannot be removed.

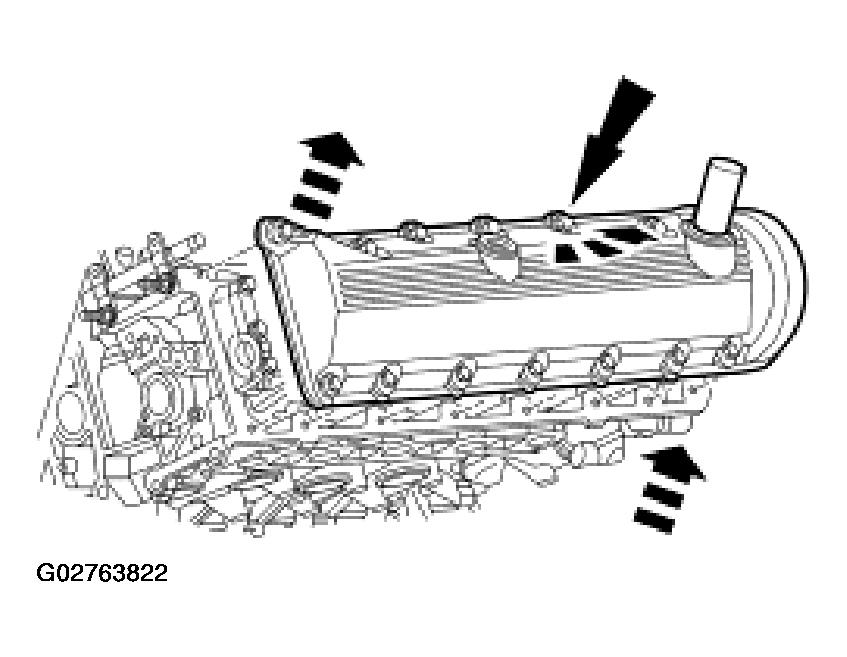

    Fig 6: Removing LH Valve Cover
    G02763822Courtesy of FORD MOTOR CO.
  9. Remove the RH valve cover.
    • Fully loosen the bolts and remove the valve cover.
    • Clean the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Discard the valve cover gasket. Clean the valve cover gasket groove with soap and water or a suitable solvent.
