Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine air cleaner and the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Remove the oil level indicator and the nut retaining the oil level indicator tube and bracket assembly.

Fig 1: Removing Engine Air Cleaner And Air Cleaner Outlet Tube
Courtesy of FORD MOTOR CO.
Remove the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD LH .
Remove the bolt and the oil level indicator tube.

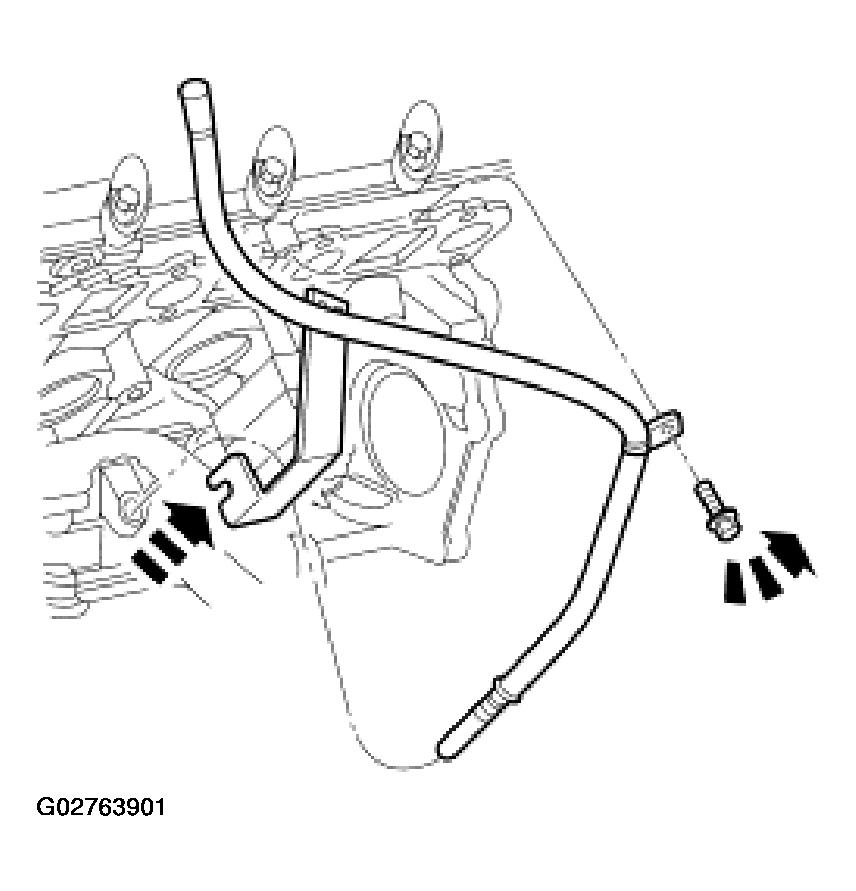

Fig 2: Removing Bolt And Oil Level Indicator Tube
Courtesy of FORD MOTOR CO.
Inspect the oil level indicator tube for damage.
To install, reverse the removal procedure.
- Install new O-ring seals and lubricate them with clean engine oil.

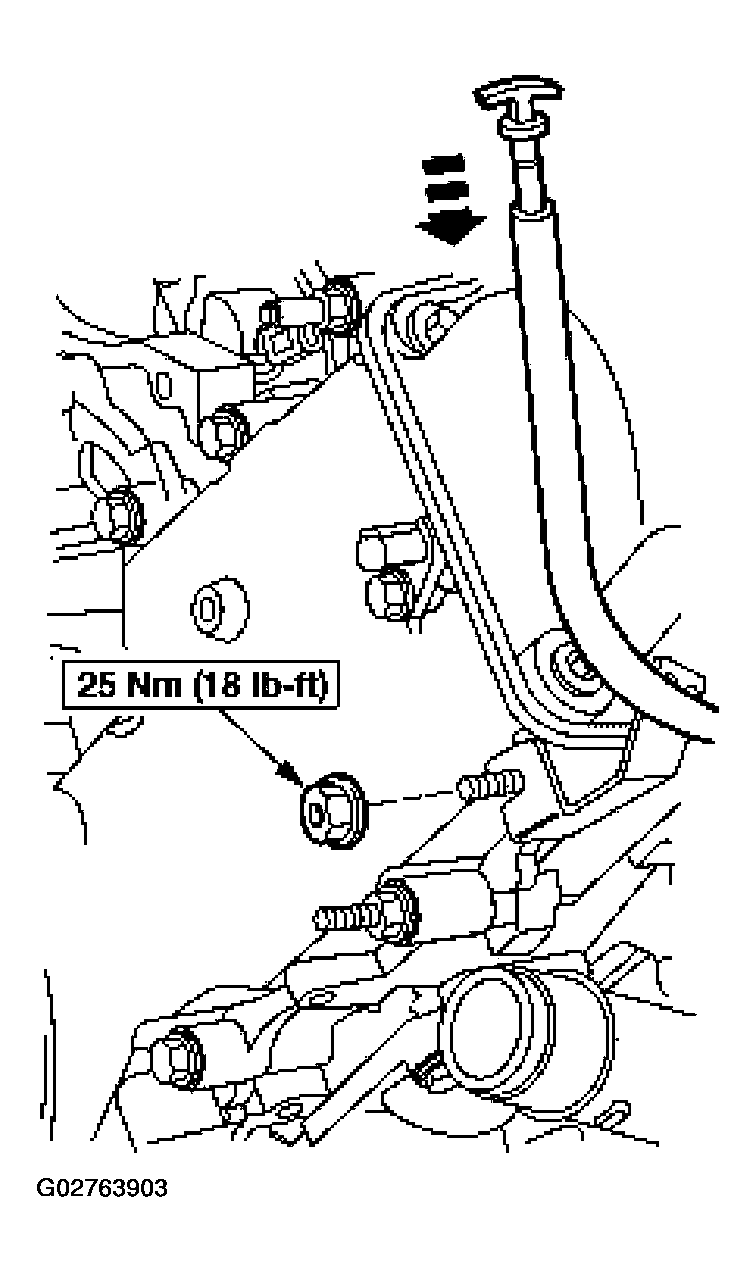

Fig 3: Installing New O-Ring Seals And Lubricate With Clean Engine Oil (1 Of 2)
Courtesy of FORD MOTOR CO.

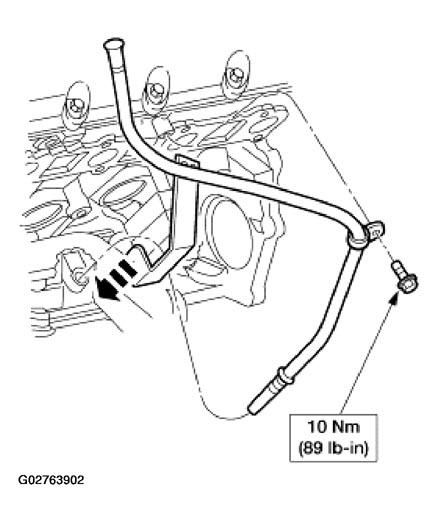

Fig 4: Installing New O-Ring Seals And Lubricate With Clean Engine Oil (2 Of 2)
Courtesy of FORD MOTOR CO.
