Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
  2. Drain the engine oil.
  3. Disconnect the coolant hoses.

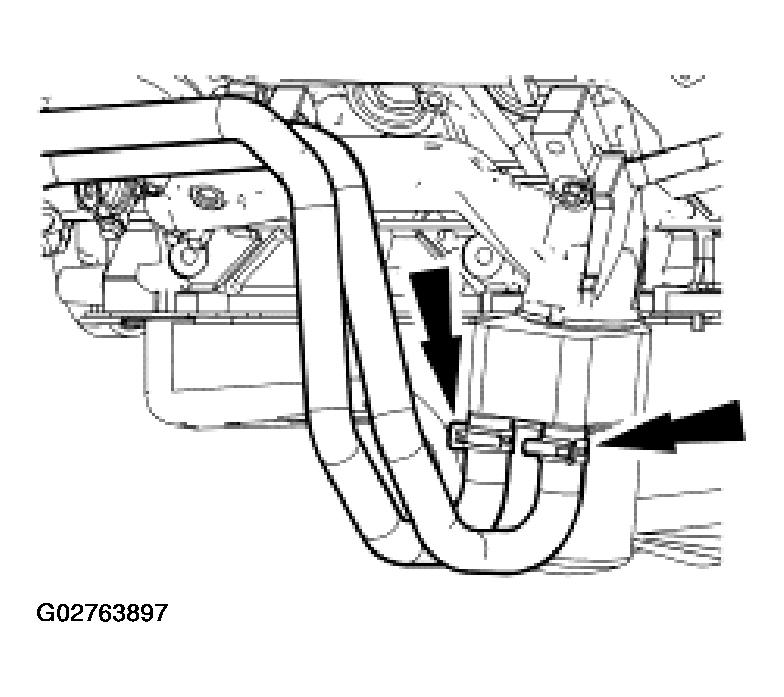

    Fig 1: Disconnecting Coolant Hoses
    G02763897Courtesy of FORD MOTOR CO.
  4. Remove the oil filter.

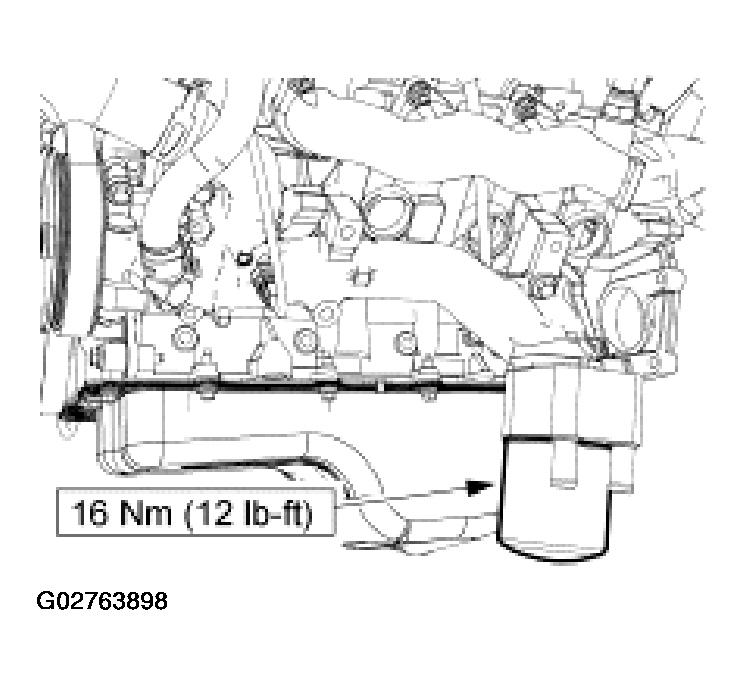

    Fig 2: Removing Oil Filter
    G02763898Courtesy of FORD MOTOR CO.
  5. Remove the threaded insert and the oil cooler.

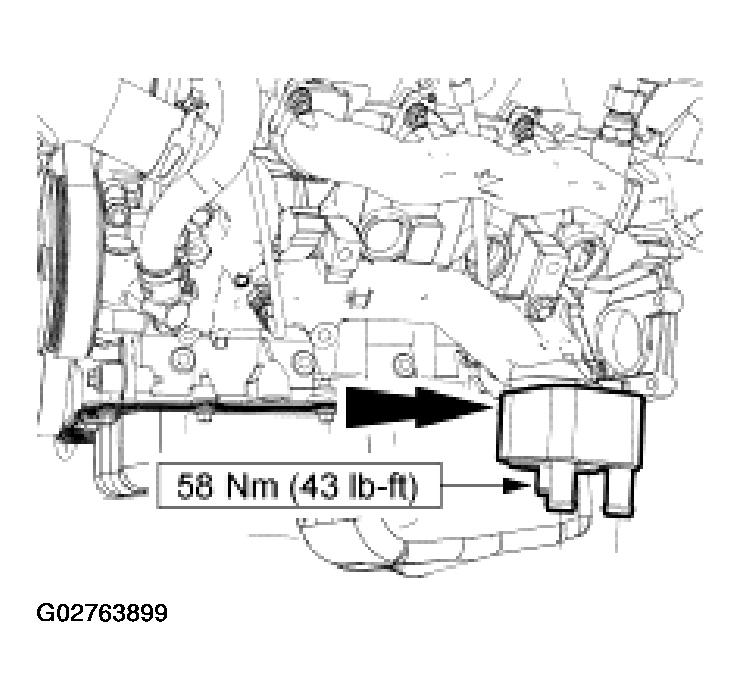

    Fig 3: Removing Threaded Insert And Oil Cooler
    G02763899Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
    • Fill the engine with clean engine oil before filling the cooling system.
