Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the inner lip of the crankshaft rear seal with clean engine oil.
    Fig 1: Installing Crankshaft Rear Seal
    G02763949Courtesy of FORD MOTOR CO.
  1. Using the special tools, install the crankshaft rear seal.
  2. Using the special tools, install the crankshaft rear oil slinger.

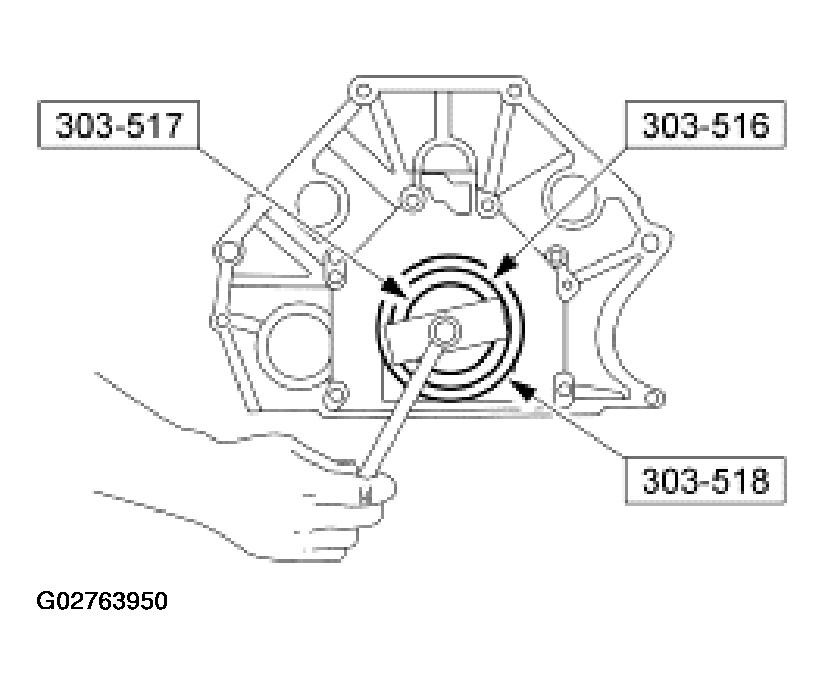

    Fig 2: Installing Crankshaft Rear Oil Slinger
    G02763950Courtesy of FORD MOTOR CO.
  3. Install the flexplate. For additional information, refer to FLEXPLATE .
