Crankshaft Rear Seal with Retainer Plate: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flexplate. For additional information, refer to FLEXPLATE .
  2. Using the special tools, remove the crankshaft rear oil slinger.
    Fig 1: Removing Crankshaft Rear Oil Slinger
    G02763952Courtesy of FORD MOTOR CO.
  3. Using the special tools, remove the crankshaft rear seal.
    Fig 2: Removing Crankshaft Rear Seal
    G02763953Courtesy of FORD MOTOR CO.
  4. Remove the oil pan. For additional information, refer to OIL PAN .
  5. Remove the bolts and the crankshaft rear seal retainer plate.

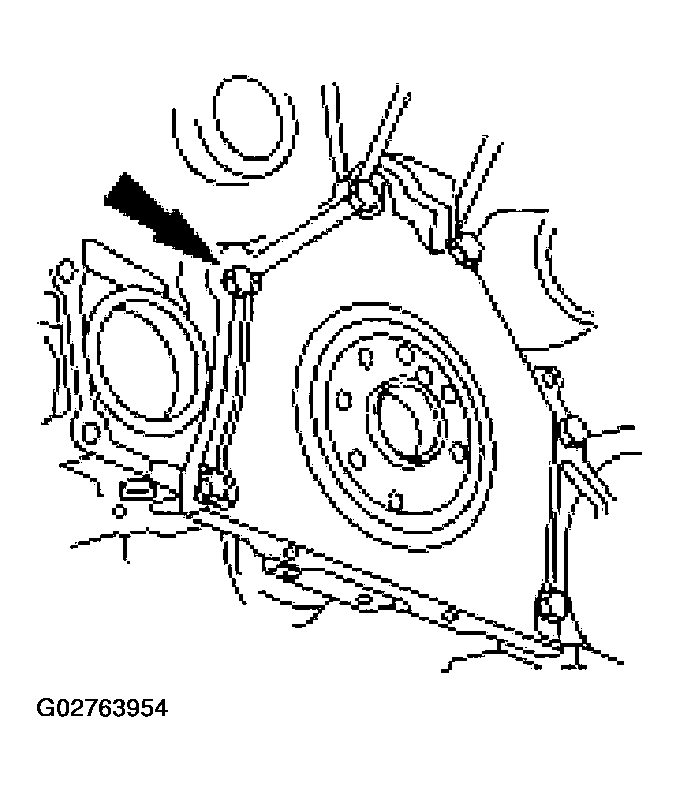

    Fig 3: Removing Bolts And Crankshaft Rear Seal Retainer Plate
    G02763954Courtesy of FORD MOTOR CO.
