Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the engine cooling fan and fan shroud. For additional information, refer to ENGINE COOLING .
  3. Remove the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  4. Remove the crankshaft pulley bolt.
  5. Using the special tool, remove the crankshaft pulley.

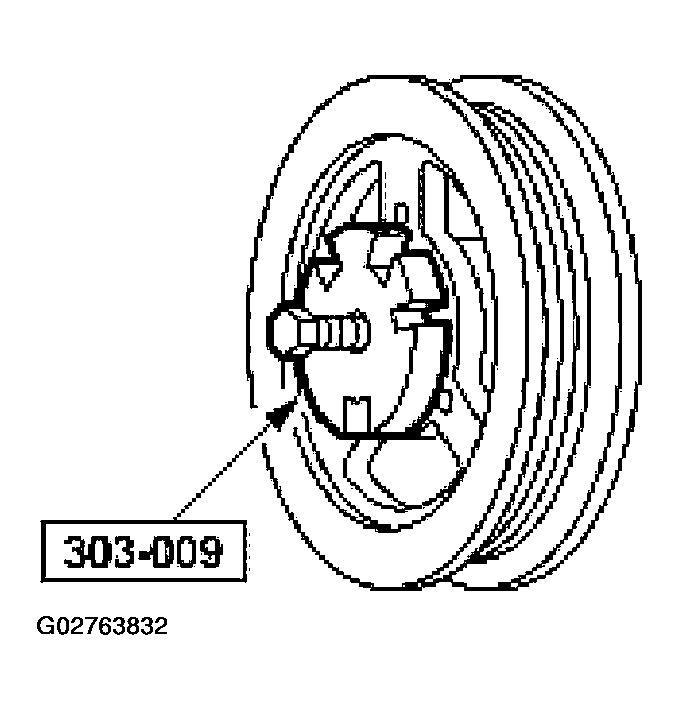

    Fig 1: Removing Crankshaft Pulley
    G02763832Courtesy of FORD MOTOR CO.
