Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the engine front cover and the crankshaft front seal inner lip with clean engine oil.
    Fig 1: Lubricating Engine Front Cover And Crankshaft Front Seal Inner Lip With Clean Engine Oil
    G02763838Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the crankshaft front seal into the engine front cover.

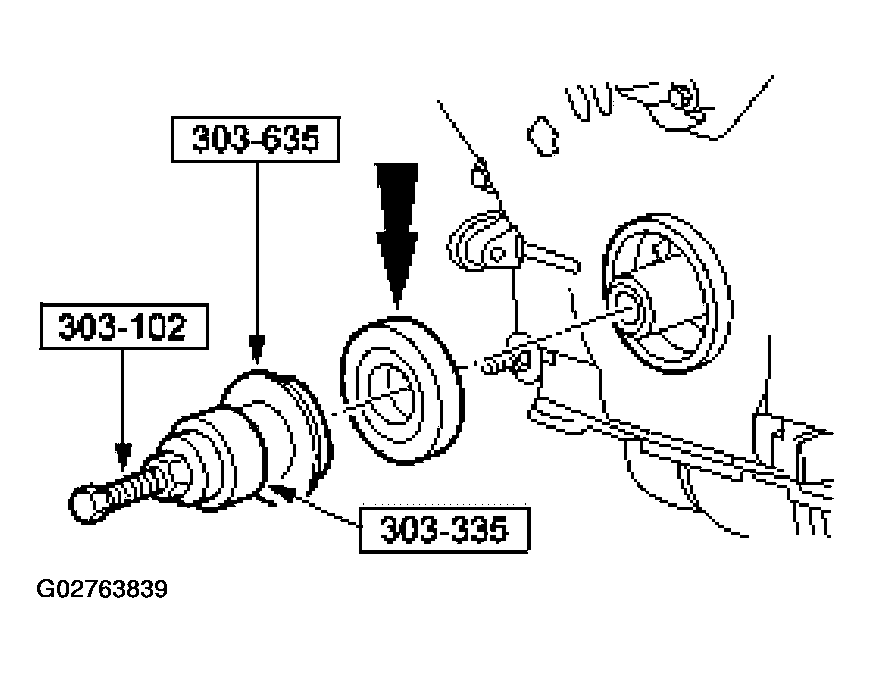

    Fig 2: Installing Crankshaft Front Seal Into Engine Front Cover
    G02763839Courtesy of FORD MOTOR CO.
  3. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
