In-Vehicle Repair: Camshaft: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the camshaft journals with clean engine oil.
  2. Install the camshaft and the camshaft bearing caps in their original locations onto the cylinder head. Loosely install the 15 bolts.

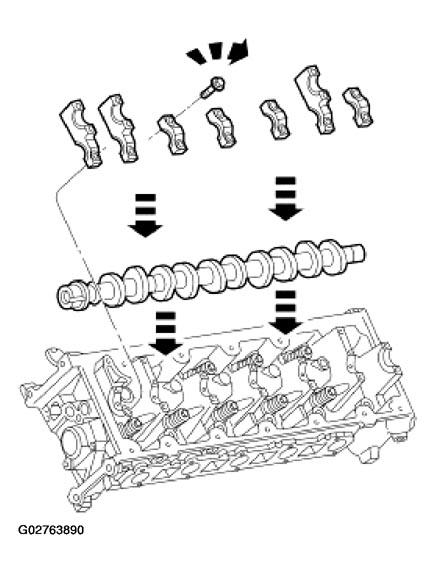

    Fig 1: Installing Camshaft And Camshaft Bearing Caps
    G02763890Courtesy of FORD MOTOR CO.
  3. Tighten the bolts in the sequence shown.

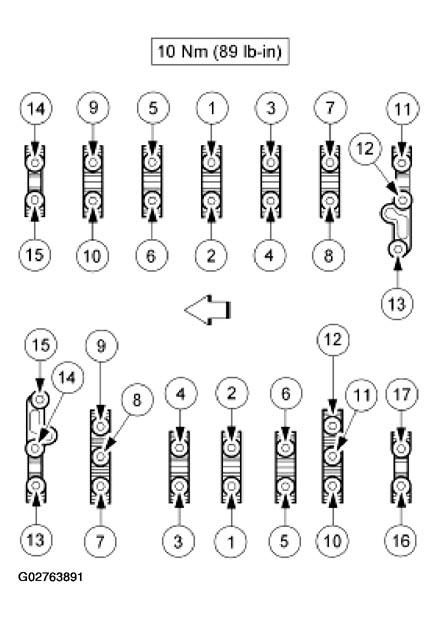

    Fig 2: Camshaft Bearing Cap Bolt Tightening Sequence
    G02763891Courtesy of FORD MOTOR CO.
  4. Use the special tool to compress the valve springs and install the camshaft roller followers.

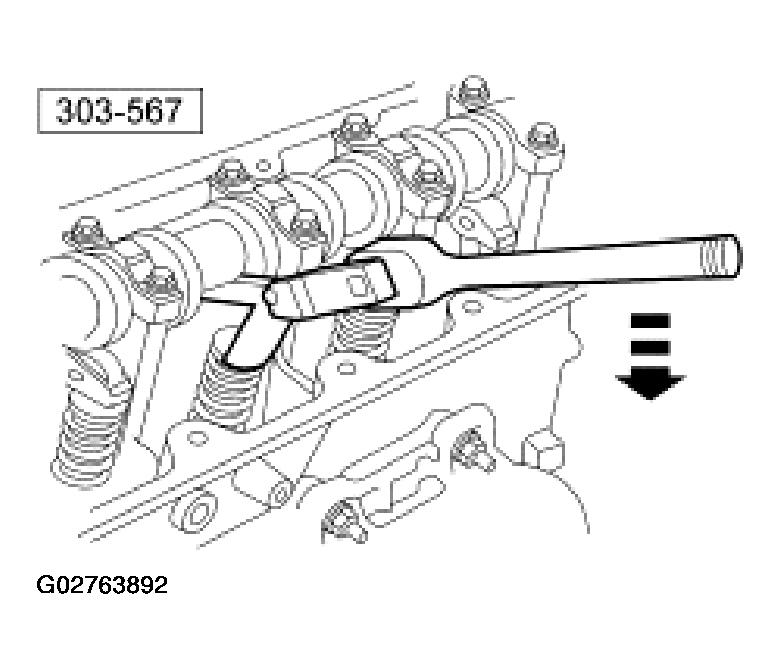

    Fig 3: Compressing Valve Springs
    G02763892Courtesy of FORD MOTOR CO.
  5. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
