Cylinder Heads - 5.4L: Notes
WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

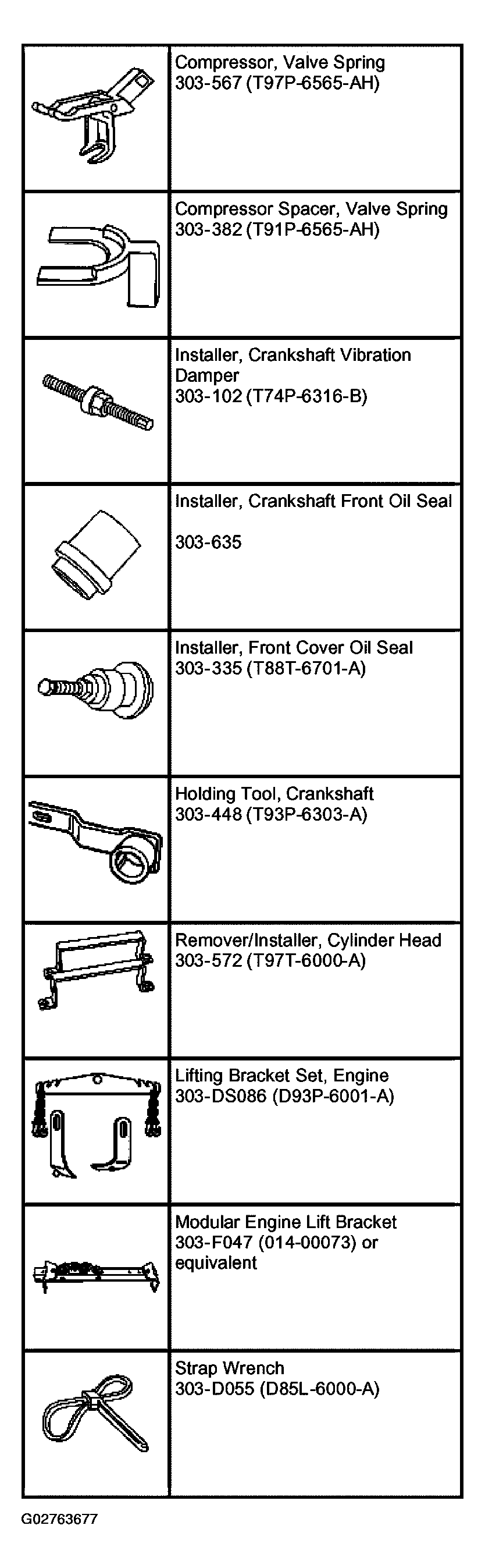

SPECIAL TOOL(S)
MATERIAL
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft Silicone Gasket Remover ZC-30 | - |
| Motorcraft Metal Surface Prep ZC-31 | - |
| Silicone Gasket and Sealant F7AZ-19554-EA or equivalent | WSE-M4G323-A4 |
| Instant Adhesive E8AZ-19554-A | WSK-M2G402-A4 |
| SAE 5W-20 Premium Synthetic Blend Engine Oil XO-5W20-QSP or equivalent | WSS-M2C153-H |
| Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent. Do not mix coolant types. | WSS-M97B51-A1 (yellow in color) |
| Hydraulic Chain Tensioner Retaining Clip 1 L3Z-6P250-AA | - |
