Valve Springs: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the valve spring and the valve spring retainers.

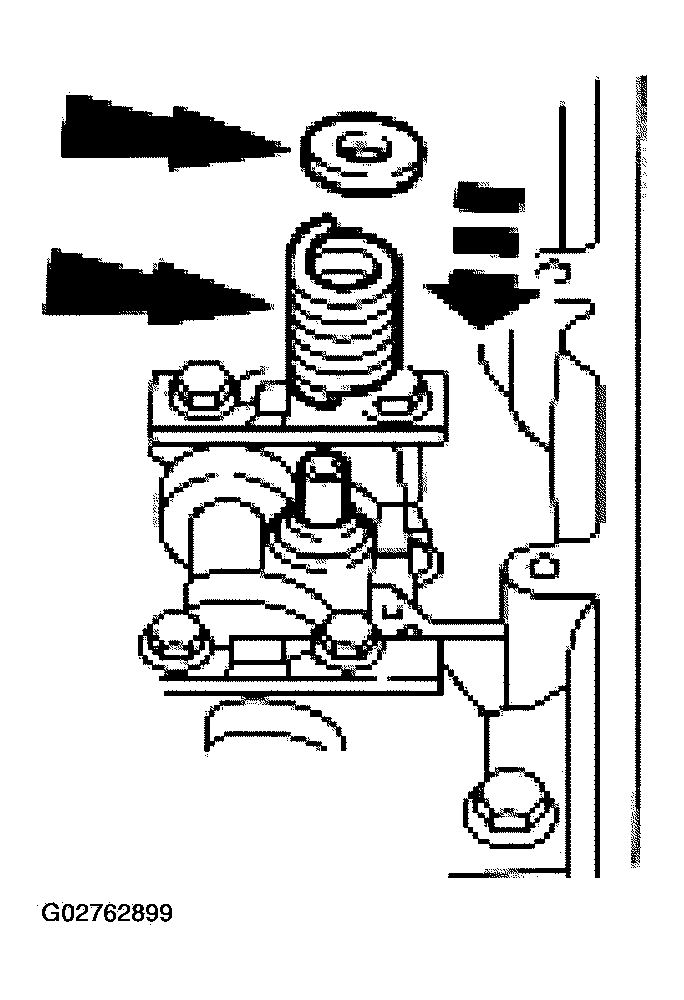

    Fig 1: Positioning Valve Spring And Valve Spring Retainers
    G02762899Courtesy of FORD MOTOR CO.
  2. Install the special tool between the valve spring coils to prevent valve stem seal damage.
    Fig 2: Installing Special Tool Between Valve Spring Coils
    G02762900Courtesy of FORD MOTOR CO.
  3. Use the special tool to compress the valve spring. Install the valve spring retainer keys.

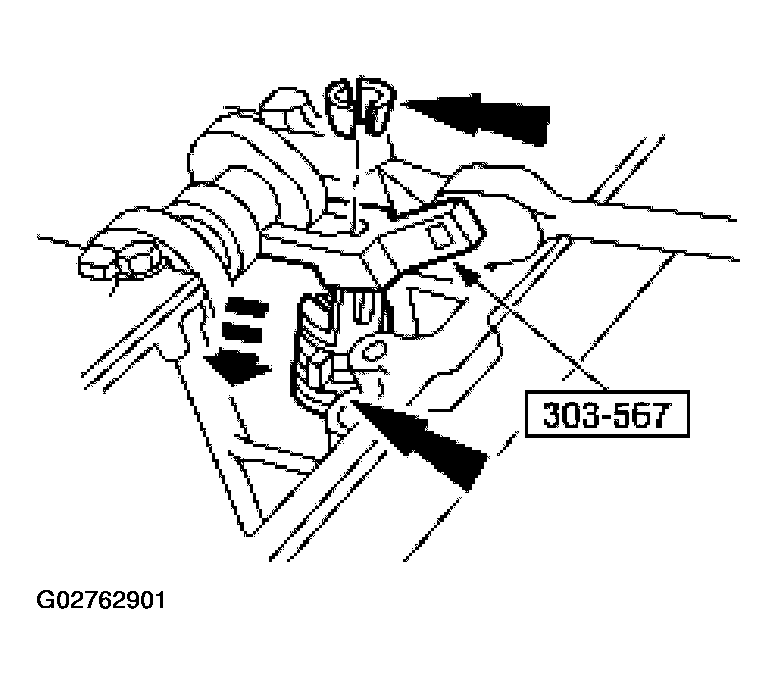

    Fig 3: Compressing Valve Spring Using Special Tool
    G02762901Courtesy of FORD MOTOR CO.
  4. Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
  5. Install the spark plug.
