Valve Cover RH - 4.6L: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the engine air cleaner (ACL) and the air cleaner outlet pipe. For additional information, refer INTAKE AIR DISTRIBUTION & FILTERING .
Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

NOTE: Rotate the positive crankcase ventilation (PCV) valve to remove.

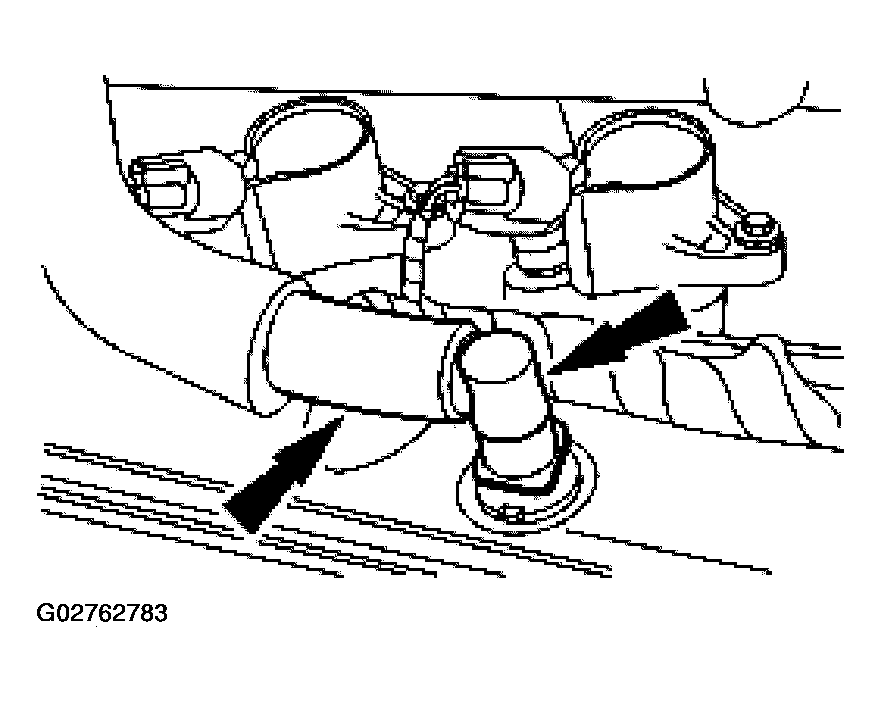

Fig 1: Removing PCV Valve From Valve Cover

Courtesy of FORD MOTOR CO.

Disconnect the hose and position it aside, then remove the PCV valve from the valve cover.
Remove the clamp and oil filler tube from the valve cover.

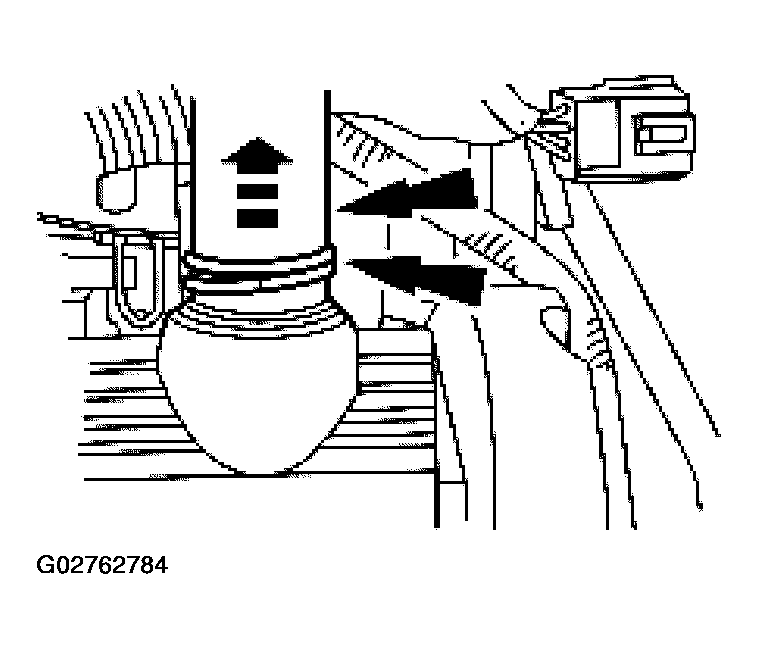

Fig 2: Removing Clamp And Oil Filler Tube From Valve Cover
Courtesy of FORD MOTOR CO.
Remove the fuel charging wiring harness from the valve cover studs and position aside.

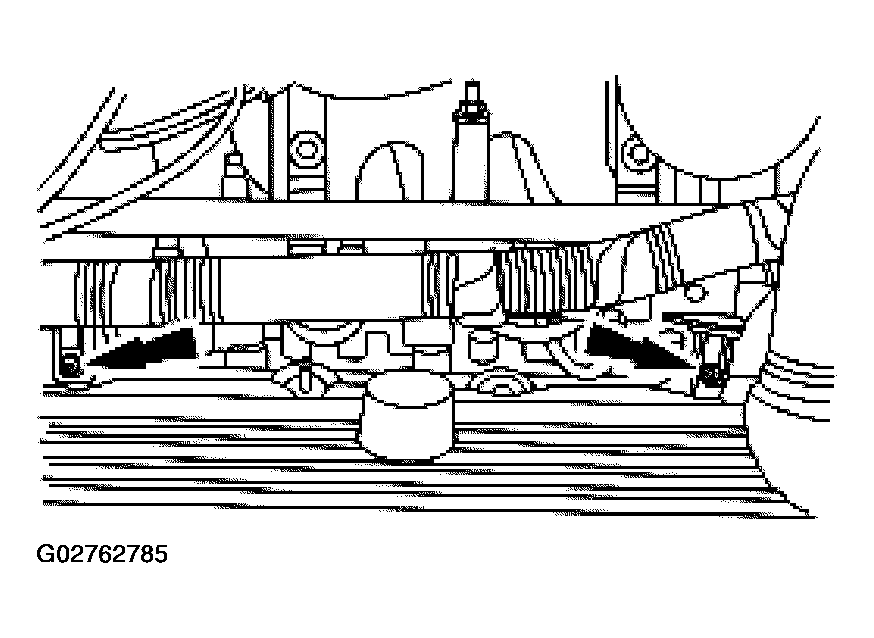

Fig 3: Removing Fuel Charging Wiring Harness From Valve Cover Studs
Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

NOTE: The bolts are part of the valve cover and cannot be removed.

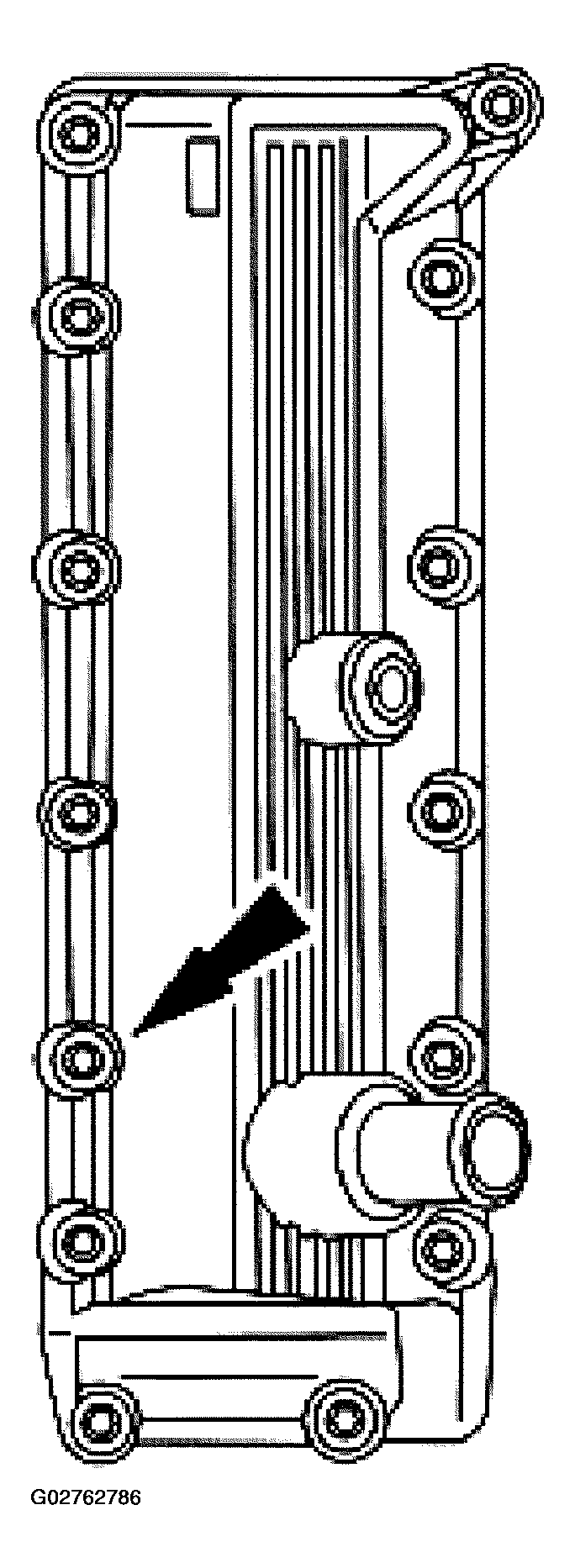

Fig 4: Removing RH Valve Cover

Courtesy of FORD MOTOR CO.

Remove the RH valve cover.
- Fully loosen the bolts and remove the valve cover.
- Clean the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
- Inspect the valve cover gasket. If the gasket is damaged, remove and discard the gasket. Clean the valve cover gasket groove with soap and water or a suitable solvent.
