Oil Pump: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft sprocket (6306). For additional information, refer to TIMING DRIVE COMPONENTS - WINDSOR ENGINE (5.4L)  or TIMING DRIVE COMPONENTS - ROMEO ENGINE (4.6L) .
  2. Remove the oil pan. For additional information, refer to OIL PAN .
    3. CAUTION: The oil pump must be primed prior to starting the engine.

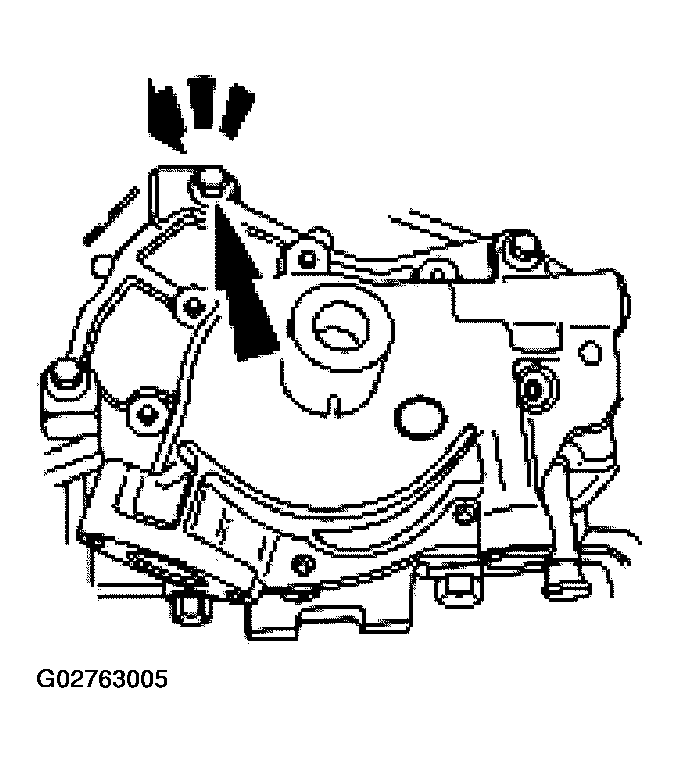

    Fig 1: Removing Bolts And Oil Pump
    G02763005Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the oil pump.
