Oil Level Indicator and Tube: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine air cleaner (ACL) and the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  2. Remove the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD LH .
  3. Remove the oil level indicator and the nut retaining the oil level indicator tube and bracket assembly.

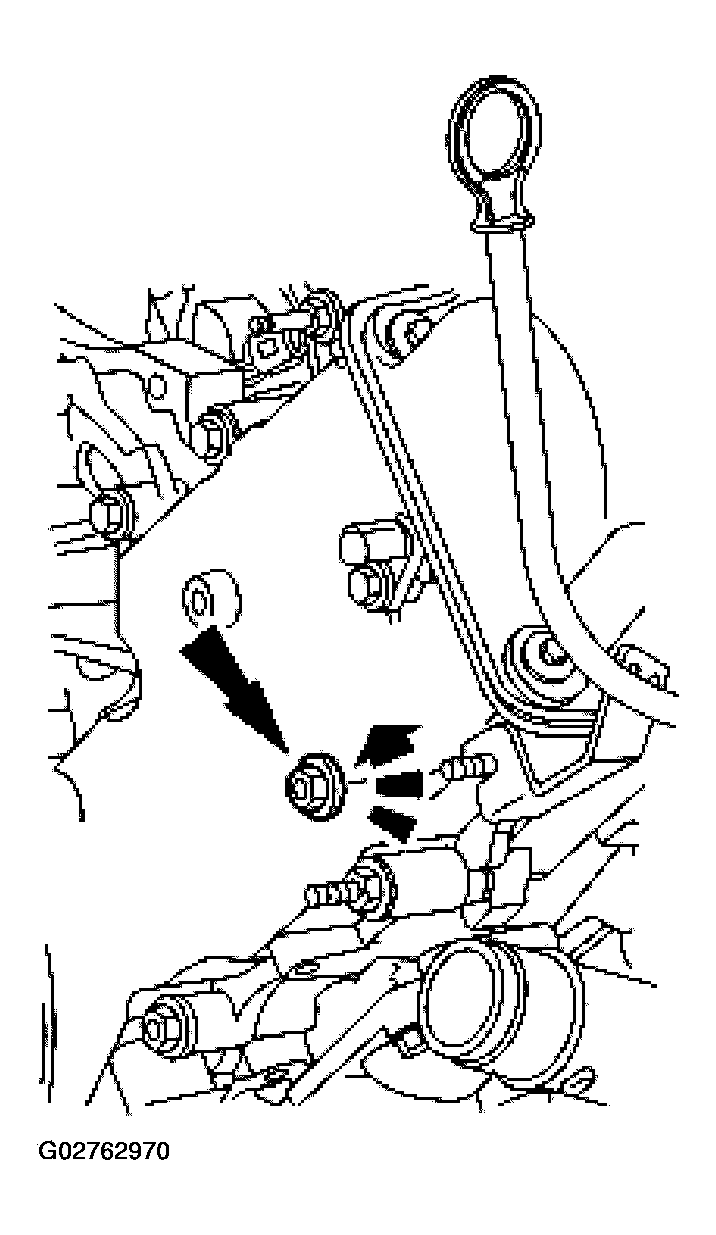

    Fig 1: Removing Oil Level Indicator And Nut Retaining Oil Level Indicator Tube And Bracket Assembly
    G02762970Courtesy of FORD MOTOR CO.
  4. Remove the bolt.

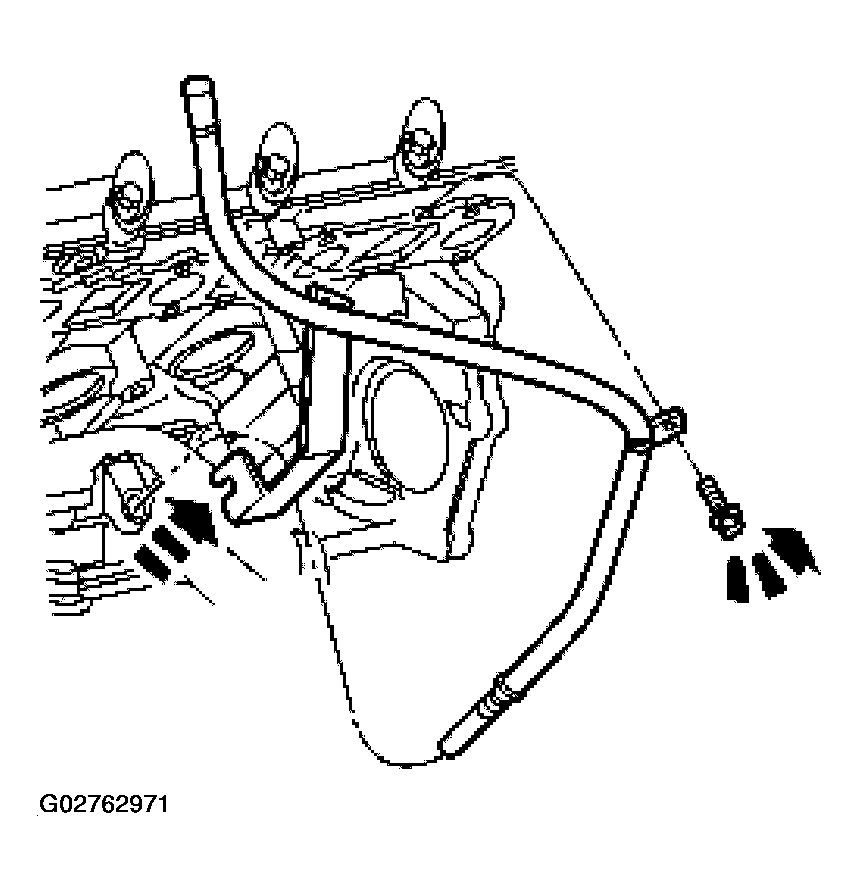

    Fig 2: Removing Bolt
    G02762971Courtesy of FORD MOTOR CO.
  5. Inspect the oil level indicator tube for damage.
