Oil Level Indicator and Tube: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the new O-ring seals with clean engine oil.
Insert the oil level indicator tube and install the bolt.

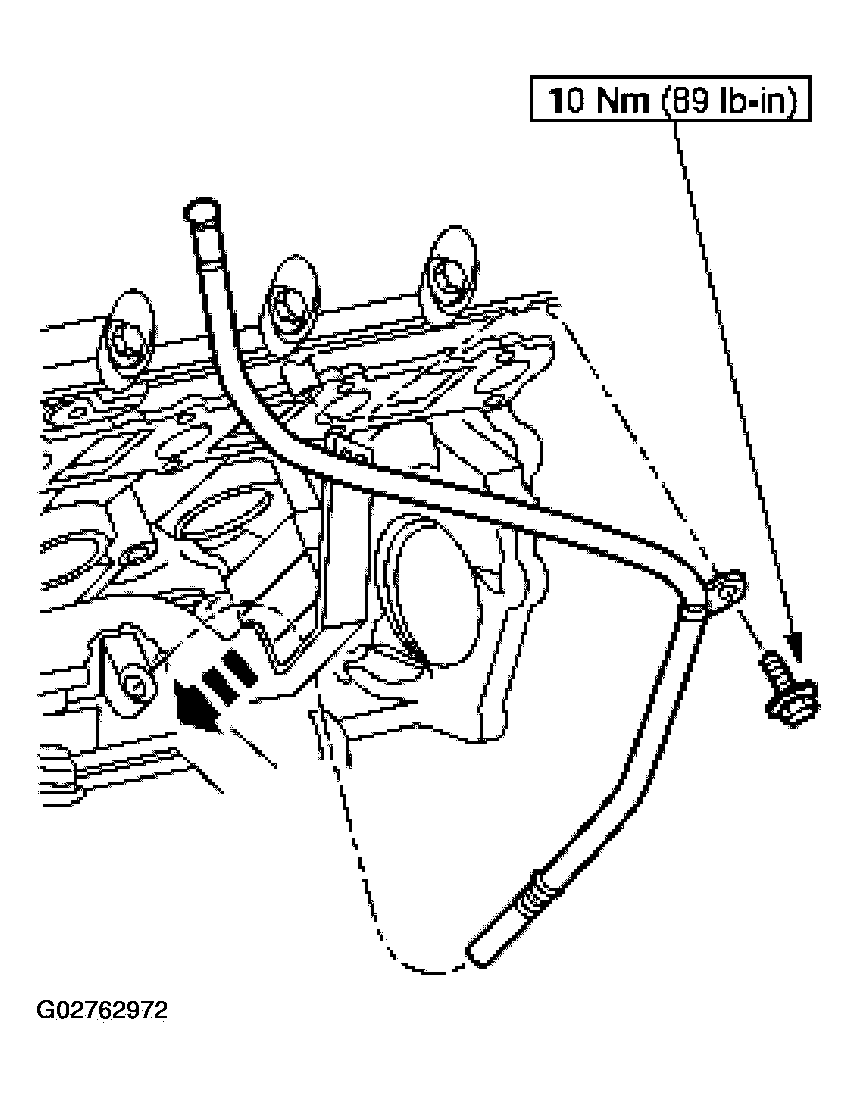

Fig 1: Lubricating O-Ring Seals
Courtesy of FORD MOTOR CO.
Install the nut and insert the oil level indicator.

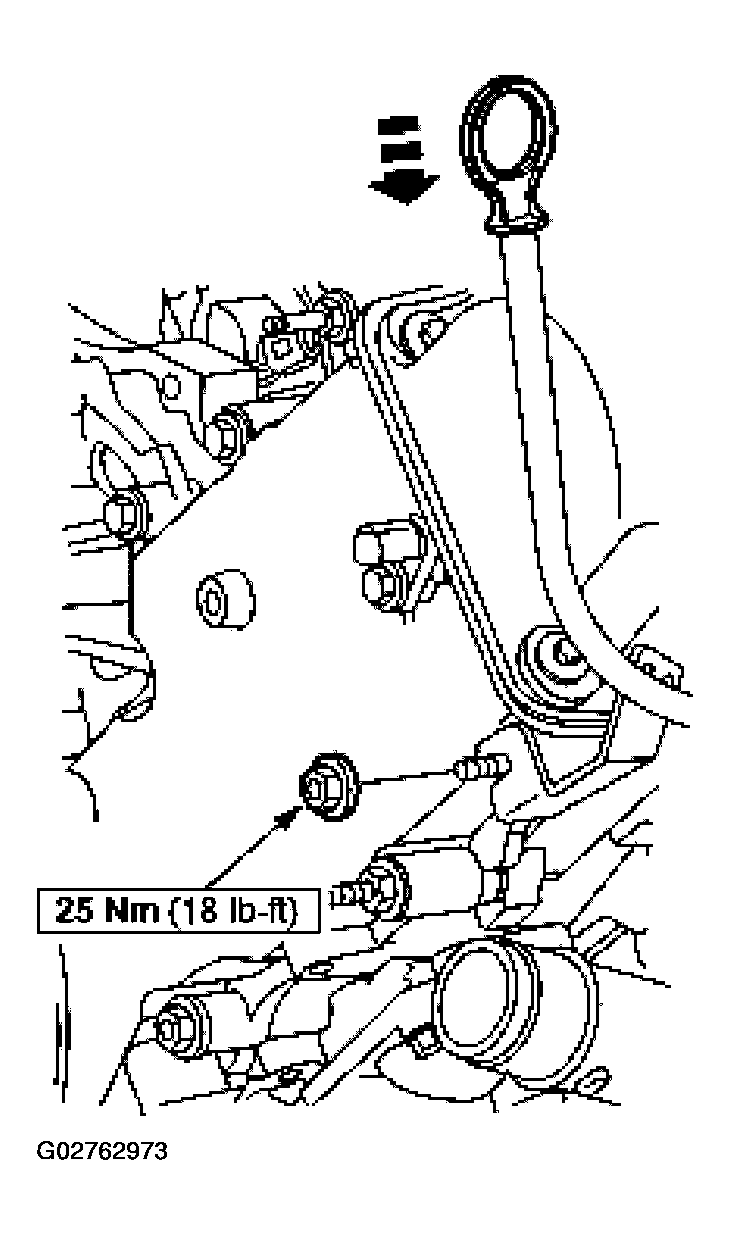

Fig 2: Installing Nut
Courtesy of FORD MOTOR CO.
Install the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD LH .
Install the ACL outlet pipe and the ACL. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
