Oil Cooler: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the tab on the oil filter adapter nests into the notch in the oil cooler.

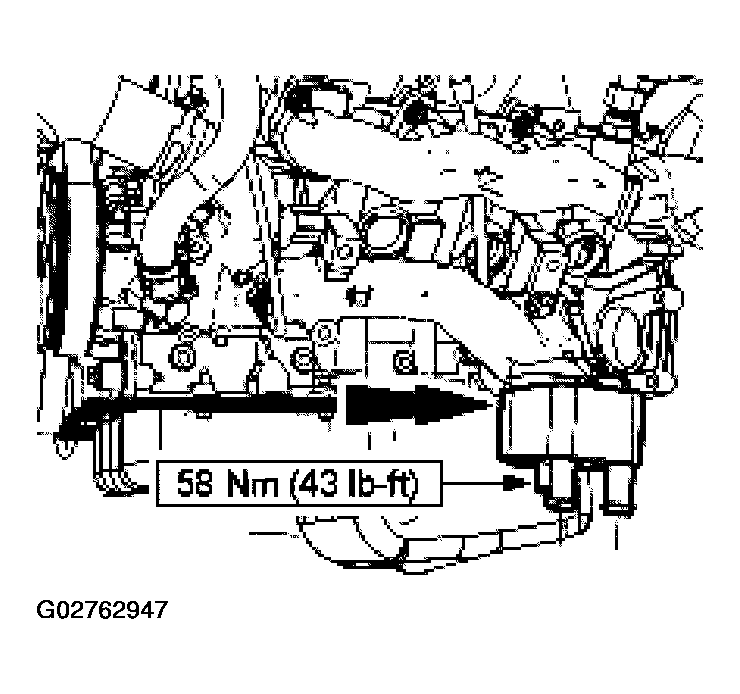

Fig 1: Positioning Oil Cooler On Oil Filter Adapter

Courtesy of FORD MOTOR CO.

Position the oil cooler on the oil filter adapter and install the threaded insert.
Install a new oil filter.

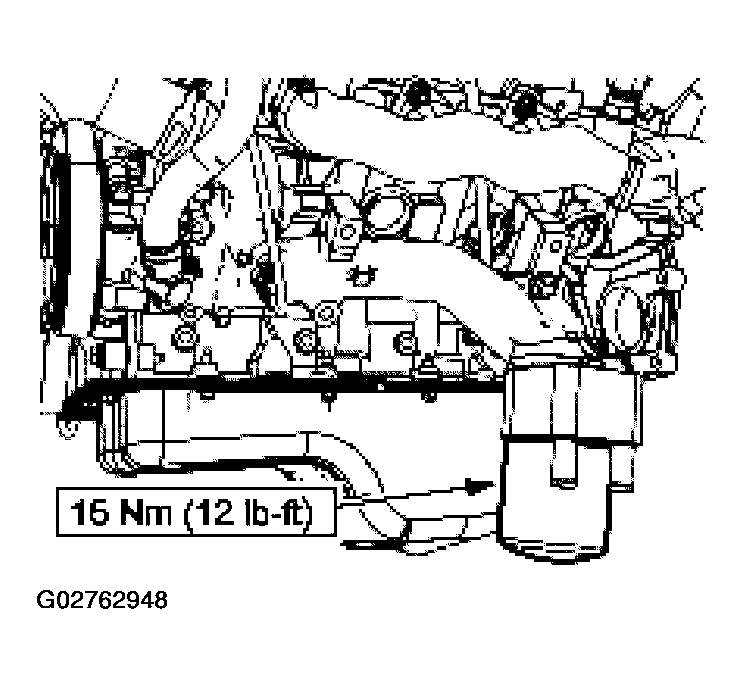

Fig 2: Installing Oil Filter
Courtesy of FORD MOTOR CO.
Connect the coolant hoses.

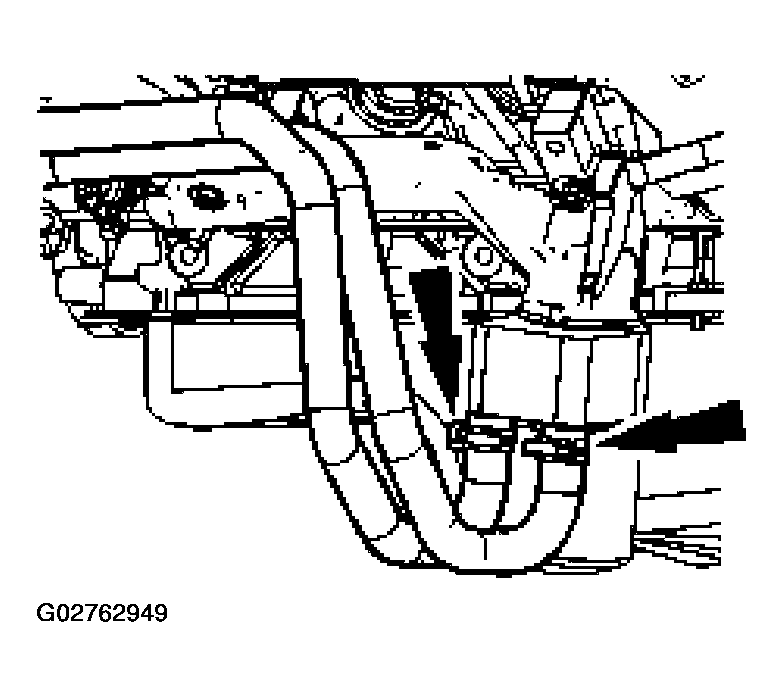

Fig 3: Connecting Coolant Hoses
Courtesy of FORD MOTOR CO.
Install the oil drain plug.

Fig 4: Installing Oil Drain Plug
Courtesy of FORD MOTOR CO.
Fill the engine with clean engine oil.
Fill and bleed the engine cooling system. For additional information, refer to ENGINE COOLING .
