Hydraulic Lash Adjuster: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve tappets in their original locations.

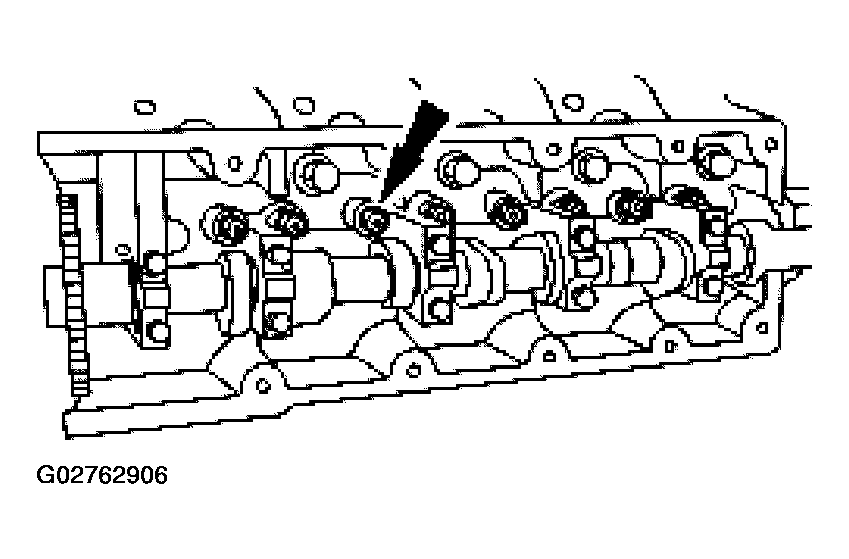

    Fig 1: Installing Valve Tappets In Locations
    G02762906Courtesy of FORD MOTOR CO.
  2. Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
