In-Vehicle Repair: Flexplate: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

    ALL ENGINES

  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 4R70W/4R75W .

    2. ROMEO ENGINE (4.6L)

  2. Remove the bolts and the flexplate.

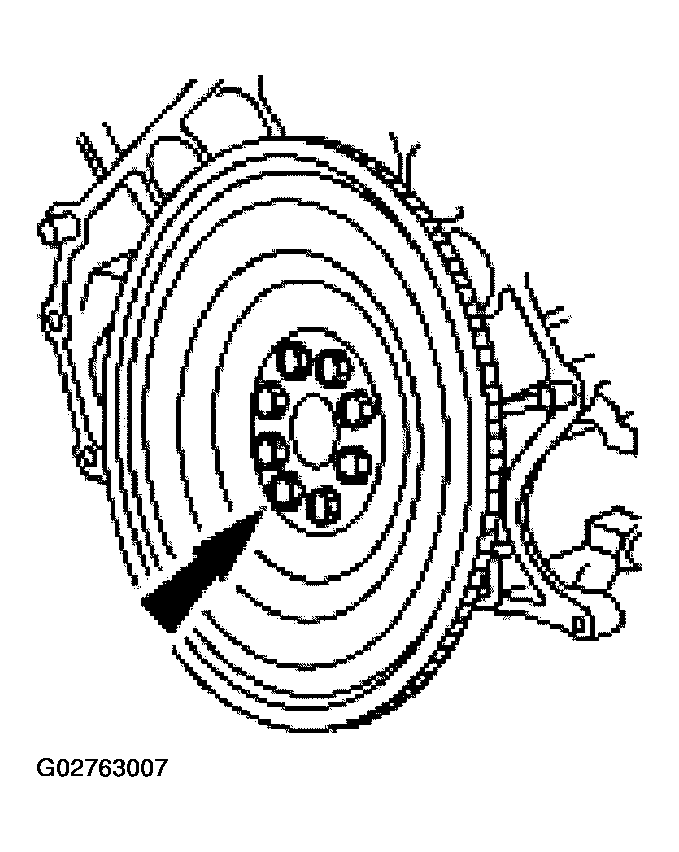

    Fig 1: Removing Bolts And Flexplate - Romeo Engine (4.6L)
    G02763007Courtesy of FORD MOTOR CO.

    3. WINDSOR ENGINE (5.4L)

  3. Remove the bolts and the flexplate.
    Fig 2: Removing Bolts And Flexplate - Windsor Engine (5.4L)
    G02763008Courtesy of FORD MOTOR CO.
