In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

    ROMEO ENGINE (4.6L)

  1. Position the flexplate. Loosely install the bolts, then tighten the bolts in the sequence shown.

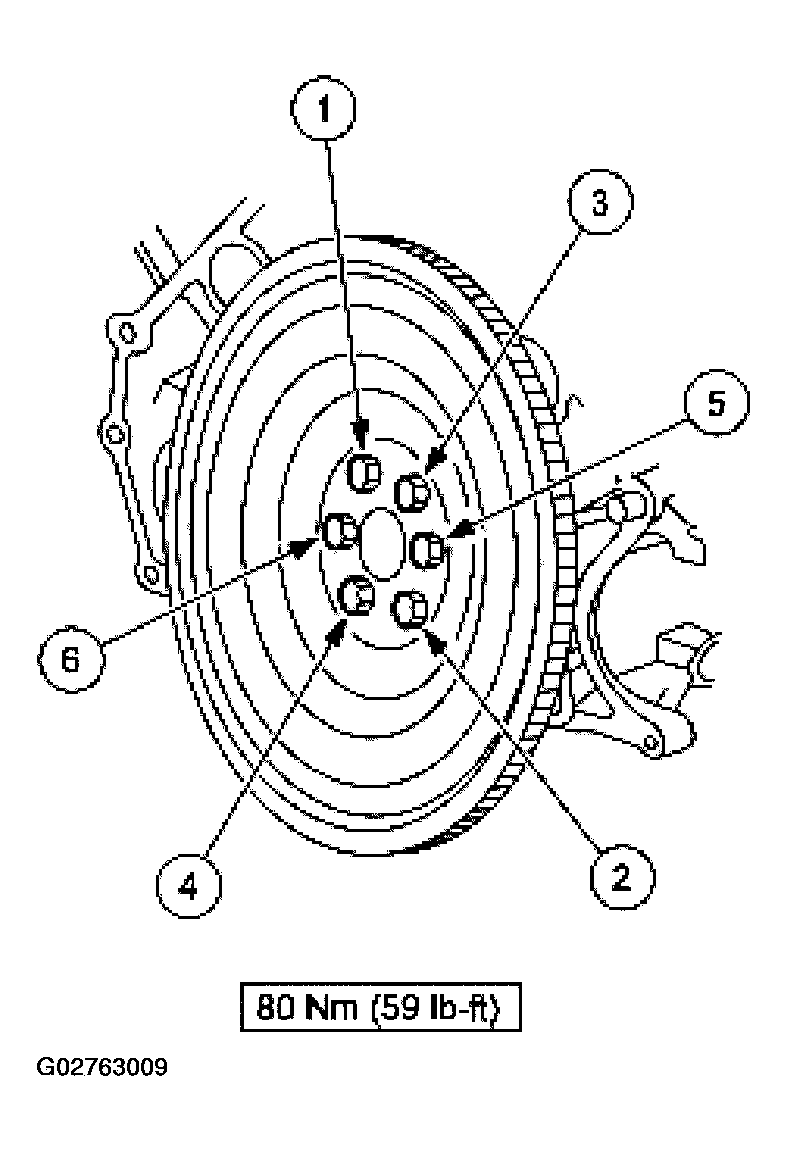

    Fig 1: Flexplate Bolt Tightening Sequence - Romeo Engine (4.6L)
    G02763009Courtesy of FORD MOTOR CO.

    2. WINDSOR ENGINE (5.4L)

  2. Position the flexplate. Loosely install the bolts, then tighten the bolts in the sequence shown.

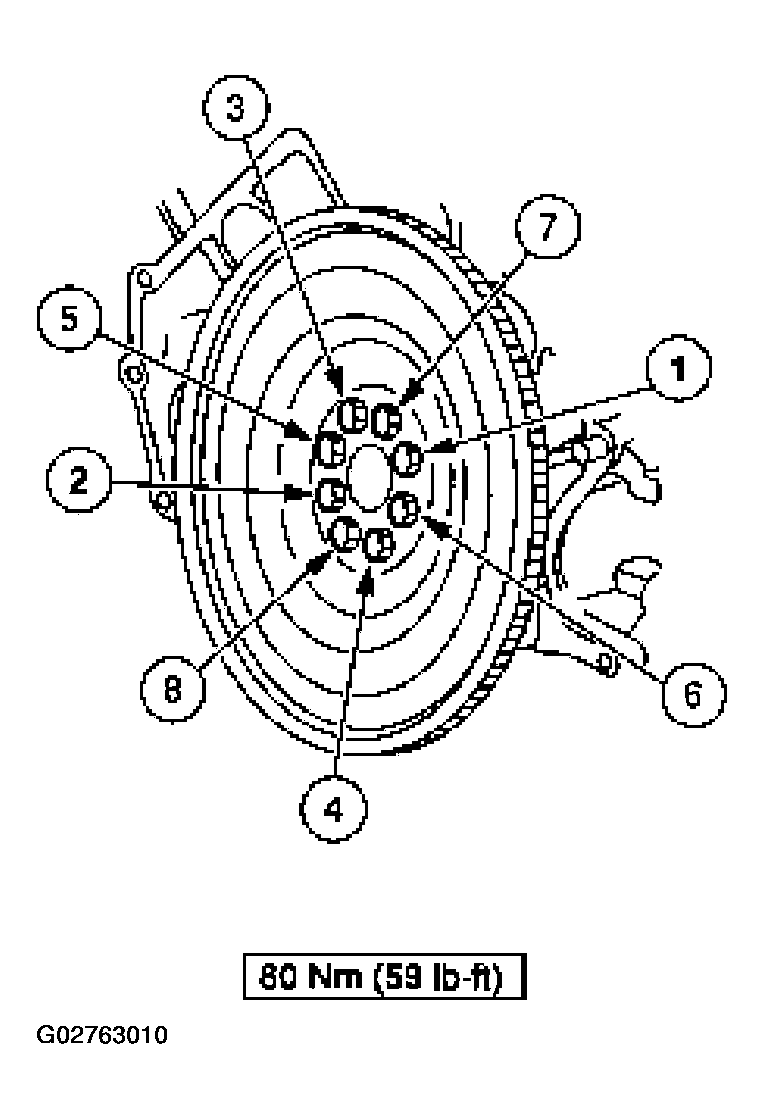

    Fig 2: Flexplate Bolt Tightening Sequence - Windsor Engine (5.4L)
    G02763010Courtesy of FORD MOTOR CO.

    3. ALL ENGINES

  3. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 4R70W/4R75W .
