Exhaust Manifold LH: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

ALL ENGINES

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

ROMEO ENGINE (4.6L)

Disconnect the differential pressure feedback exhaust gas recirculation (EGR) sensor hoses from the EGR valve tube.

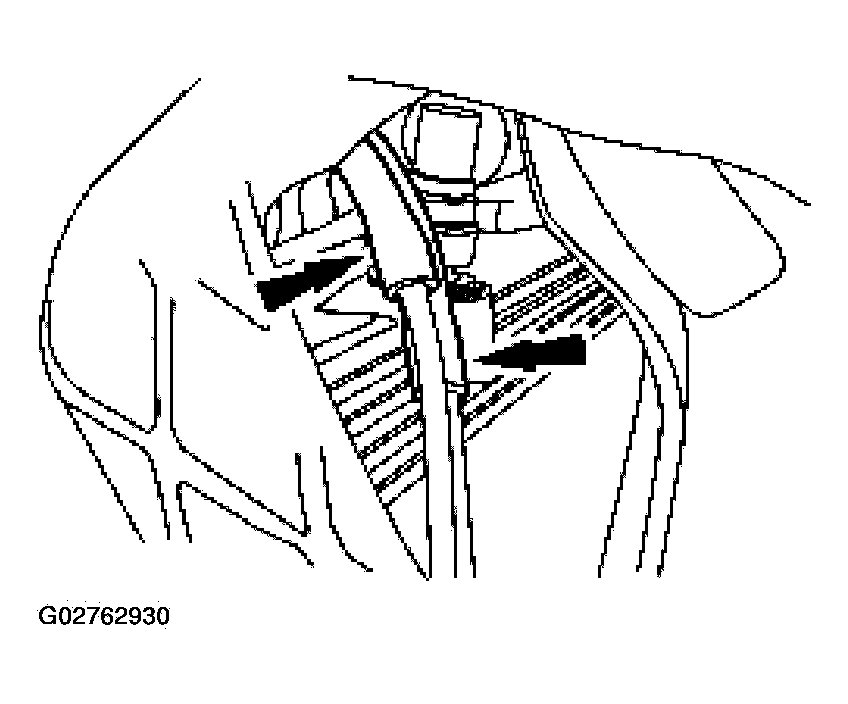

Fig 1: Disconnecting Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor Hoses From EGR Valve Tube
Courtesy of FORD MOTOR CO.
Remove the EGR valve tube.
- Disconnect the upper and lower fittings.
- Remove the tube.

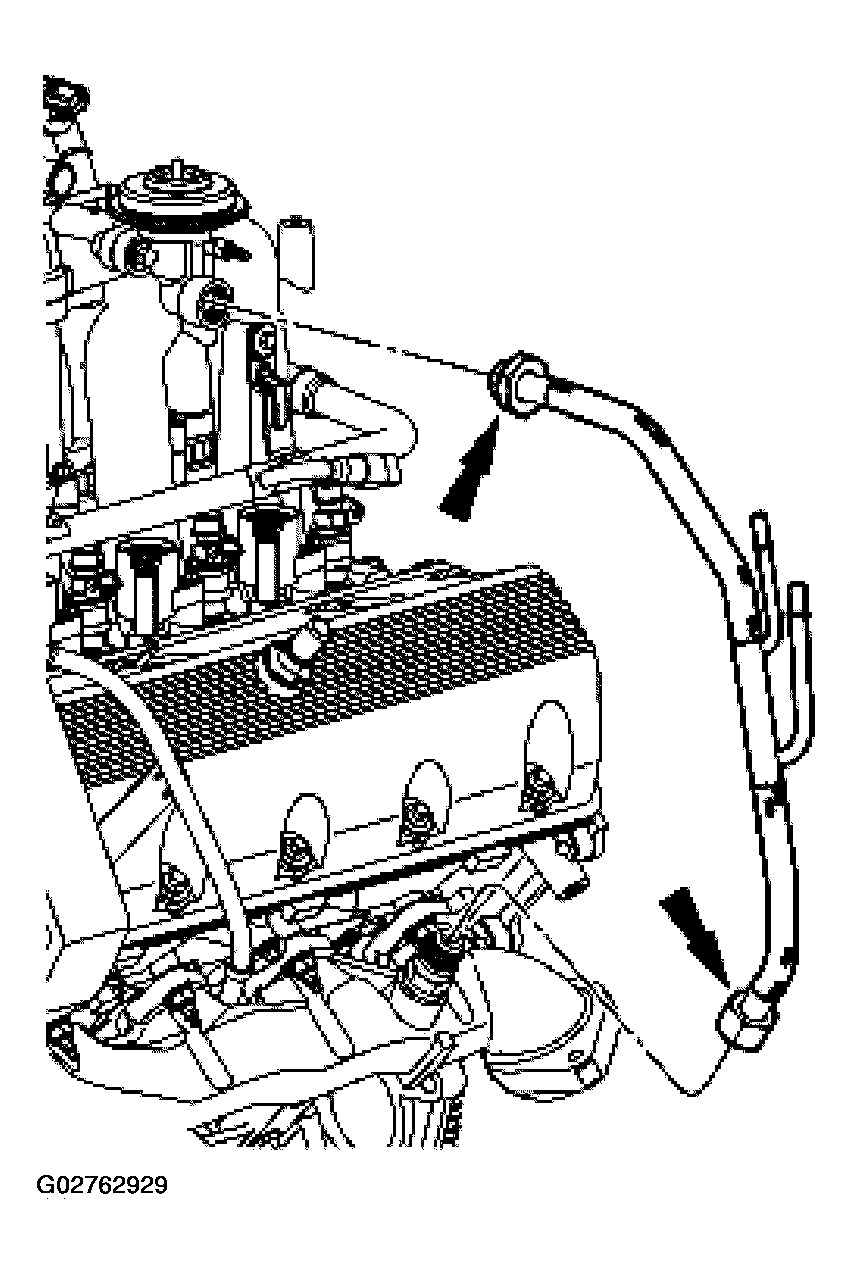

Fig 2: Removing EGR Valve Tube
Courtesy of FORD MOTOR CO.

WINDSOR ENGINE (5.4L)

Disconnect the differential pressure feedback EGR sensor hoses from the EGR valve tube.

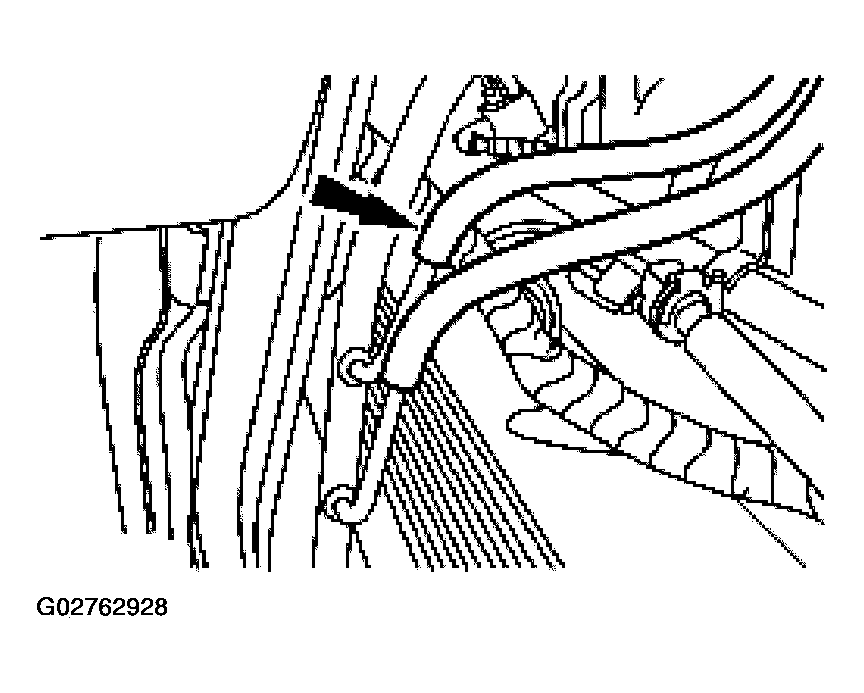

Fig 3: Disconnecting Differential Pressure Feedback EGR Sensor Hoses From EGR Valve Tube
Courtesy of FORD MOTOR CO.
Disconnect the upper and lower fittings and remove the EGR valve tube.

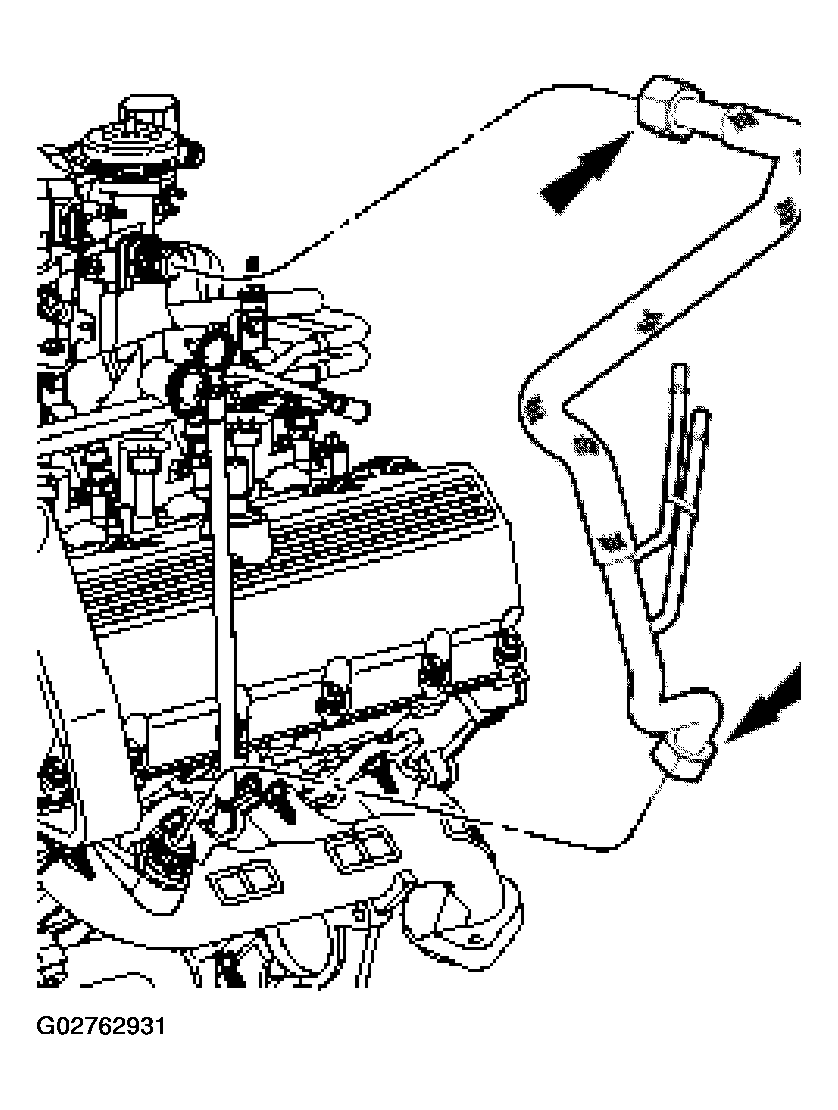

Fig 4: Removing EGR Valve Tube
Courtesy of FORD MOTOR CO.
Remove the front fender splash shield. For additional information, refer to FRONT END BODY PANELS .
Remove the nuts.

Fig 5: Removing Nuts
Courtesy of FORD MOTOR CO.
Remove the nuts and the exhaust manifold.

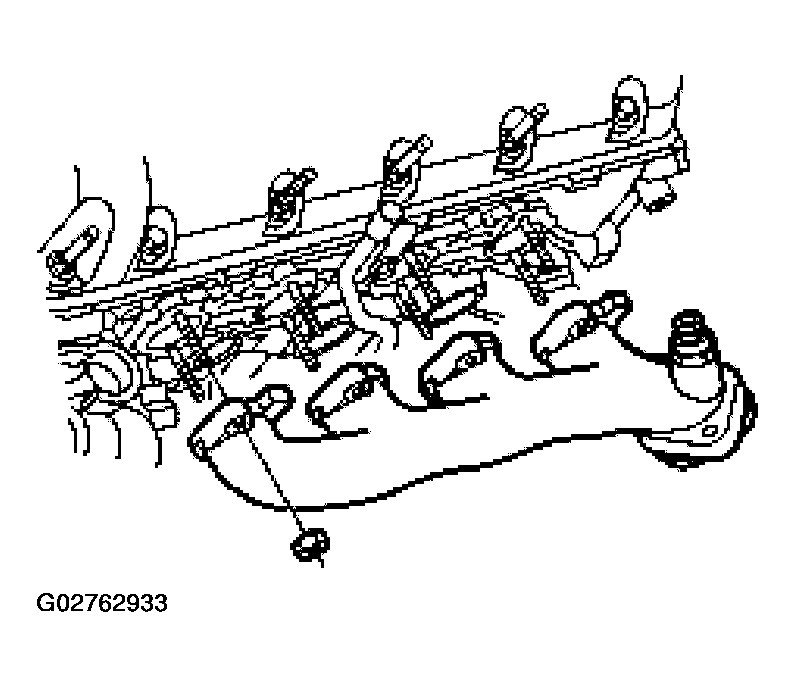

Fig 6: Removing Nuts And Exhaust Manifold
Courtesy of FORD MOTOR CO.
Remove and discard the exhaust manifold gasket.

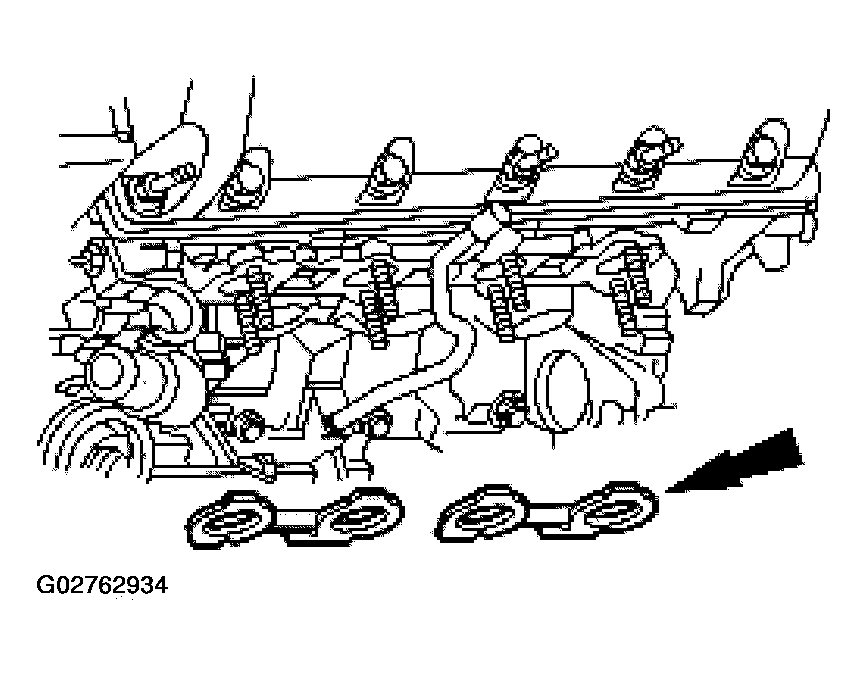

Fig 7: Removing Exhaust Manifold Gasket
Courtesy of FORD MOTOR CO.
Clean and inspect the exhaust manifold. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
