Exhaust Manifold LH: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

ALL ENGINES

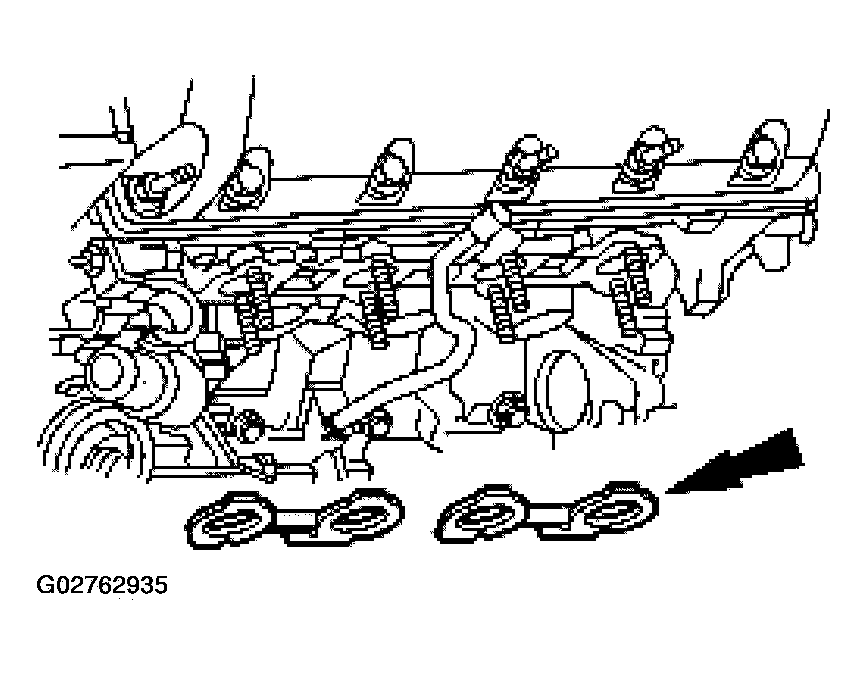

Position the exhaust manifold gasket.

Fig 1: Positioning Exhaust Manifold Gasket
Courtesy of FORD MOTOR CO.

NOTE: 4.6L is shown, 5.4L is similar.

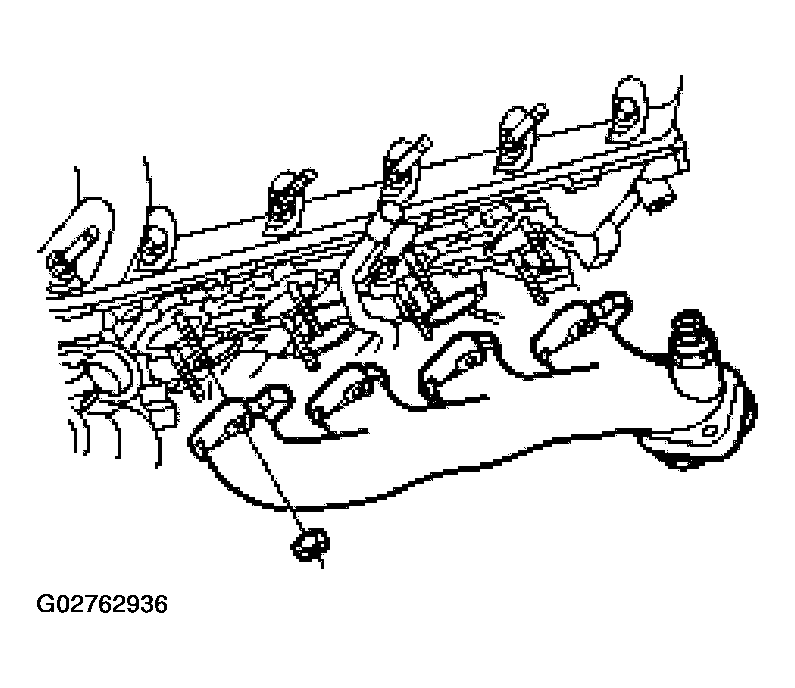

Fig 2: Positioning Exhaust Manifold

Courtesy of FORD MOTOR CO.

Position the exhaust manifold and loosely install the nuts.

NOTE: 4.6L is shown, 5.4L is similar.

Fig 3: Exhaust Manifold Nut Tightening Sequence

Courtesy of FORD MOTOR CO.

Tighten the nuts in the sequence shown.
Install the three-way catalytic converter to exhaust manifold nuts.

Fig 4: Installing Three-Way Catalytic Converter To Exhaust Manifold Nuts
Courtesy of FORD MOTOR CO.

WINDSOR ENGINE (5.4L)

Install the EGR valve fittings in two stages.
- Stage 1: Hand-tighten the fittings.
- Stage 2: Tighten the lower fitting to 50 Nm (37 lb-ft).

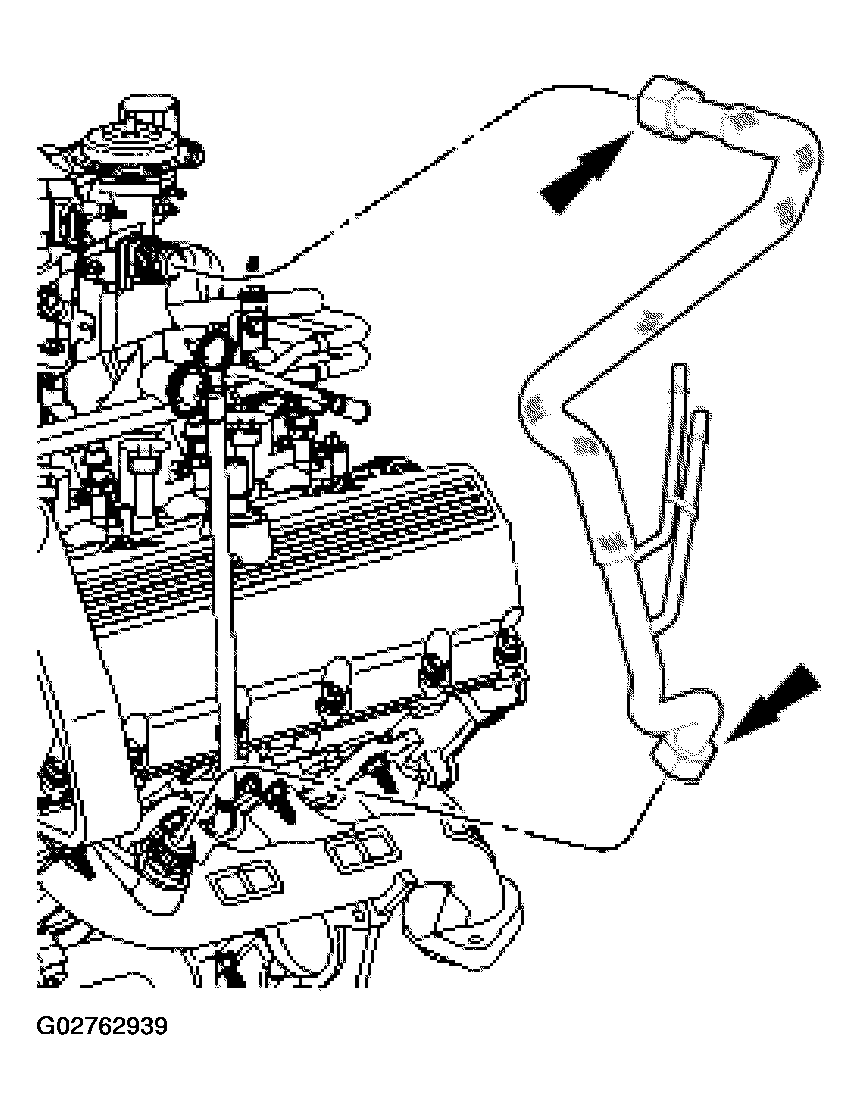

Fig 5: Installing EGR Valve Fittings
Courtesy of FORD MOTOR CO.
Connect the differential pressure feedback EGR sensor hoses to the EGR valve tube.

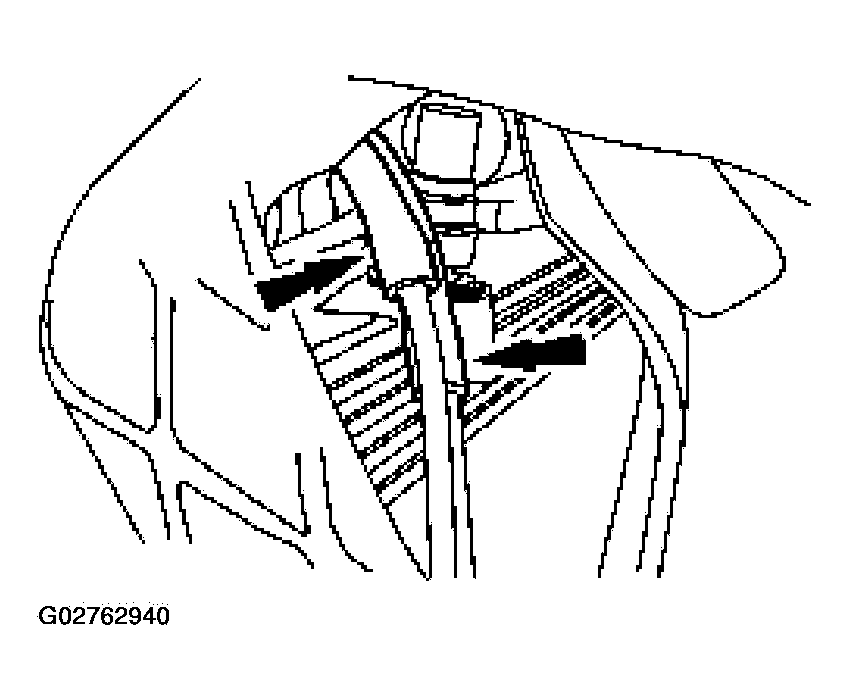

Fig 6: Connecting Differential Pressure Feedback EGR Sensor Hoses To EGR Valve Tube
Courtesy of FORD MOTOR CO.

ROMEO ENGINE (4.6L)

Install the EGR valve tube in two stages.
- Stage 1: Connect the upper and lower fittings and hand-tighten.
- Stage 2: Tighten the fittings to 40 Nm (30 lb-ft).

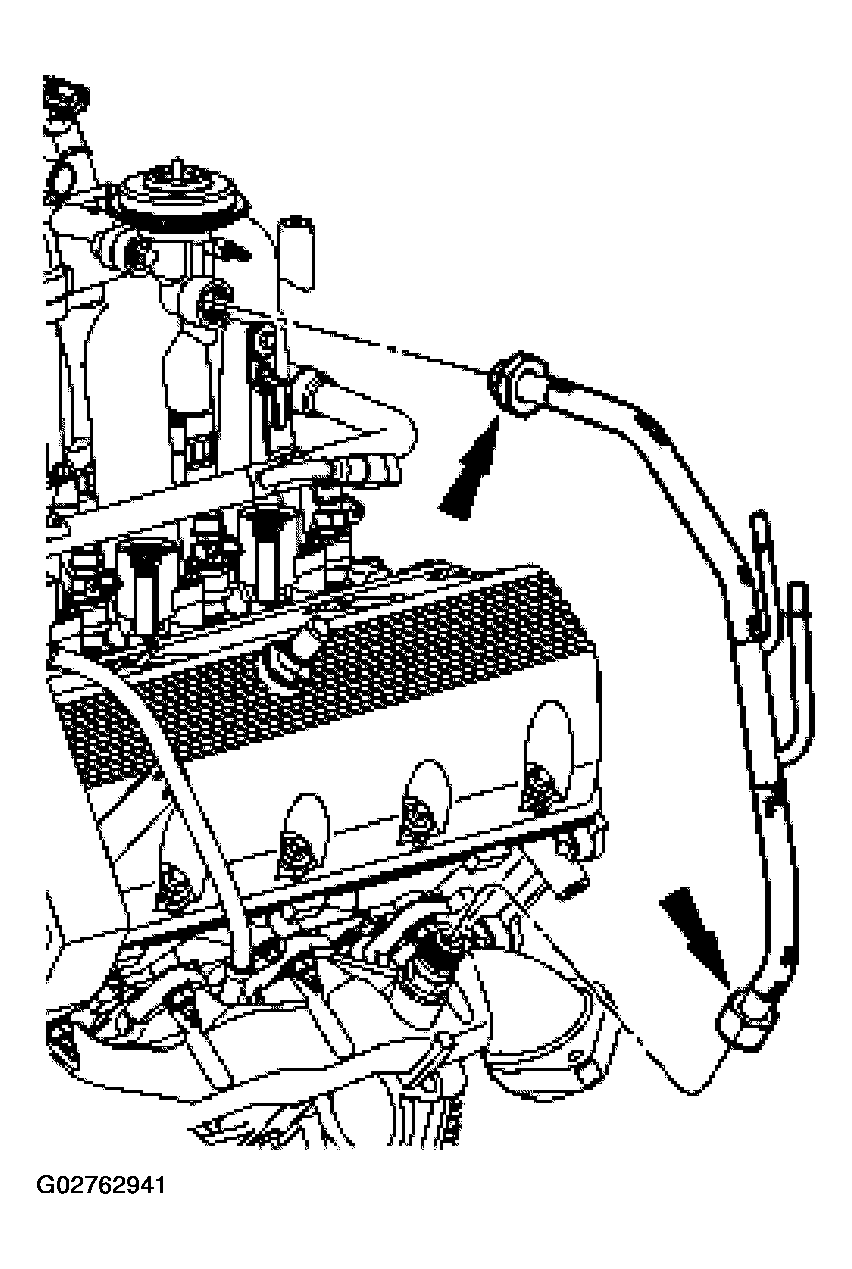

Fig 7: Installing EGR Valve Tube
Courtesy of FORD MOTOR CO.
Install the differential feedback EGR sensor hoses to the EGR valve tube.

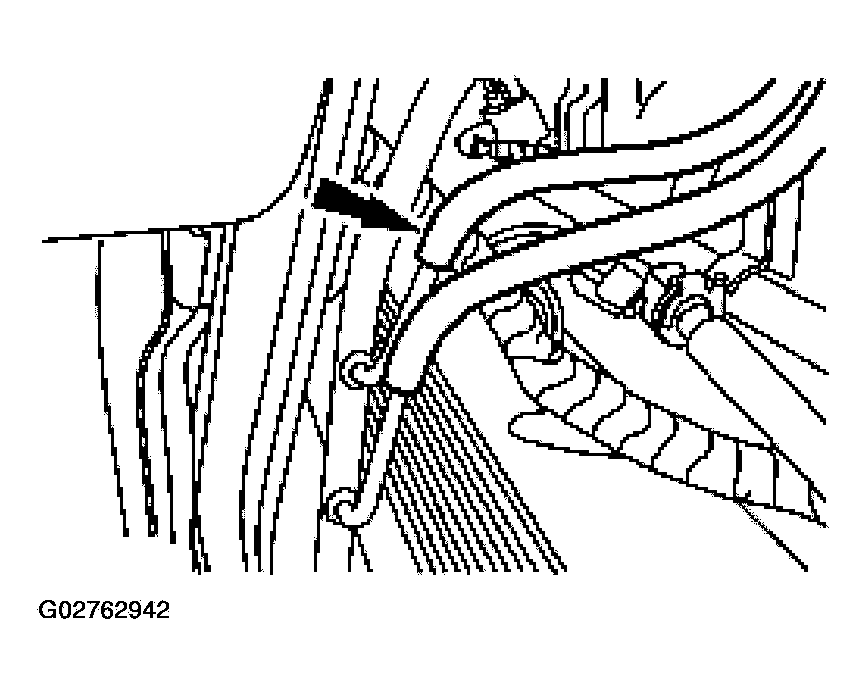

Fig 8: Installing Differential Feedback EGR Sensor Hoses To EGR Valve Tube
Courtesy of FORD MOTOR CO.

ALL ENGINES

Install the front fender splash shield. For additional information, refer to FRONT END BODY PANELS .
Install the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
