Engine Front Cover: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove both of the valve covers. For additional information, refer to VALVE COVER LH , VALVE COVER RH - 4.6L  or VALVE COVER RH - 5.4L .
  3. Remove the radiator. For additional information, refer to ENGINE COOLING .
  4. Remove the water pump. For additional information, refer to ENGINE COOLING .
  5. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

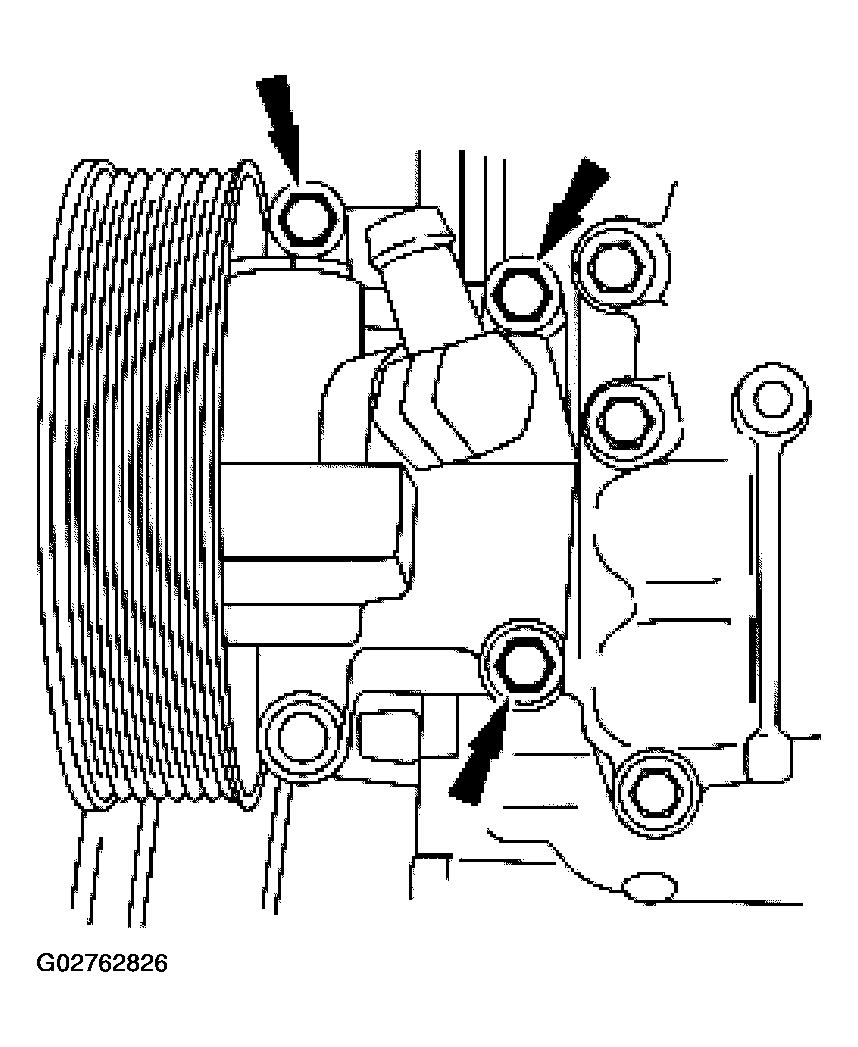

  6. Remove the top bolts and the lower bolt and position the power steering pump aside.
    Fig 1: Removing Top Bolts And Lower Bolt
    G02762826Courtesy of FORD MOTOR CO.

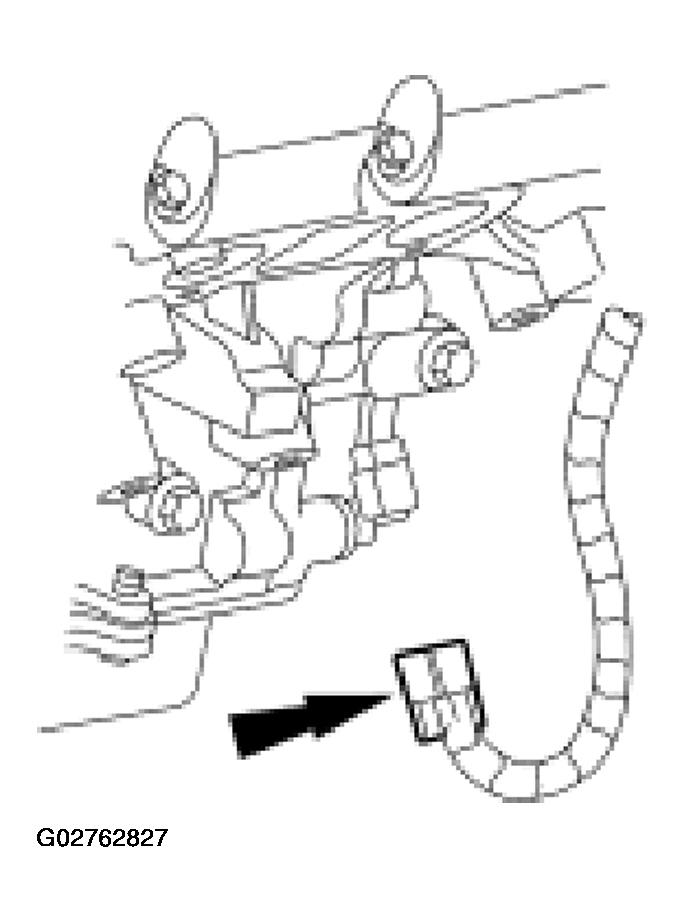

  7. Disconnect the crankshaft position (CKP) sensor electrical connector.
    Fig 2: Disconnecting Crankshaft Position (CKP) Sensor Electrical Connector
    G02762827Courtesy of FORD MOTOR CO.
  8. Remove the drain plug and drain the engine oil.
    Fig 3: Removing Drain Plug
    G02762828Courtesy of FORD MOTOR CO.

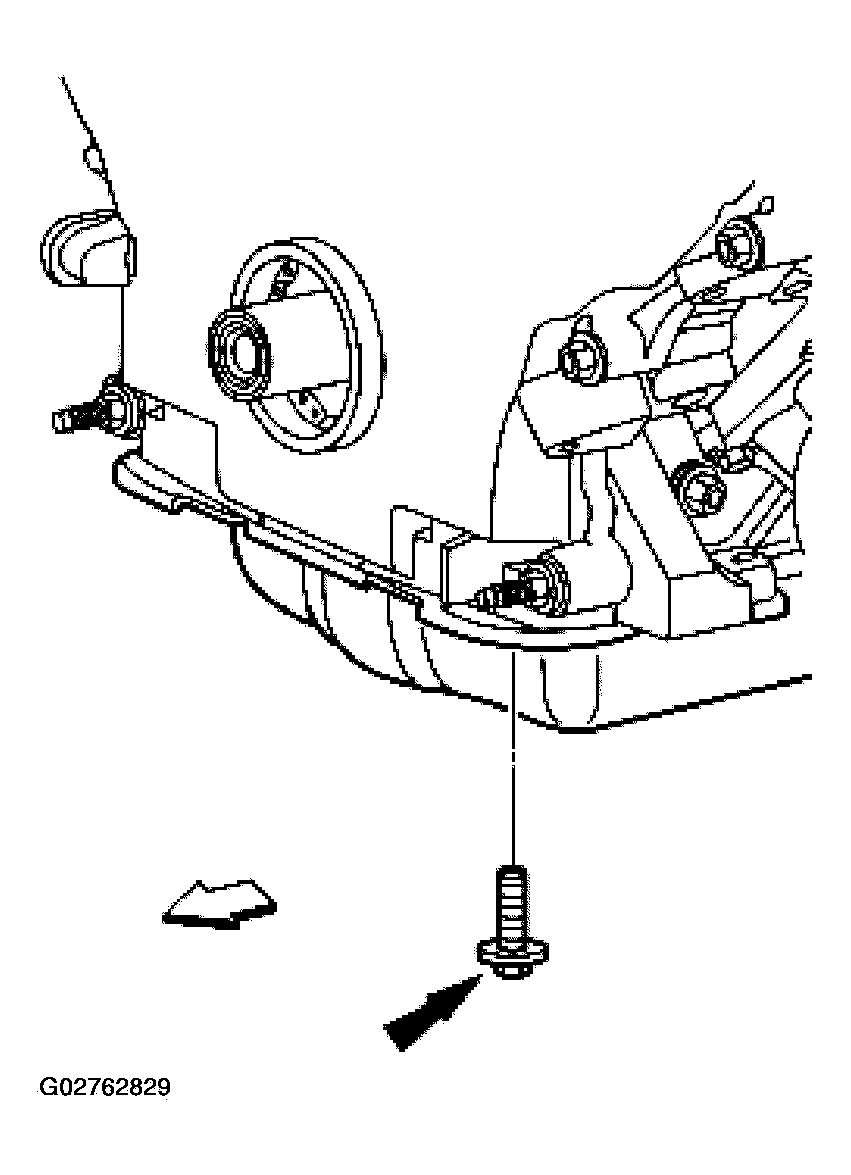

  9. Remove the oil pan front bolts.
    Fig 4: Removing Oil Pan Front Bolts
    G02762829Courtesy of FORD MOTOR CO.
  10. Remove the crankshaft front seal. For additional information, refer to CRANKSHAFT FRONT SEAL .

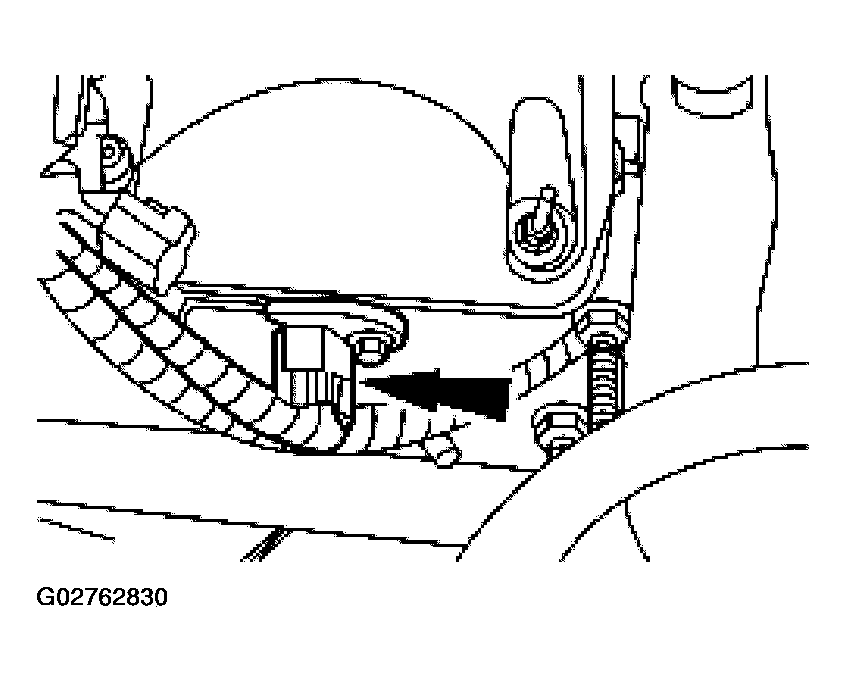

  11. Disconnect the camshaft position (CMP) sensor electrical connector.
    Fig 5: Disconnecting Camshaft Position (CMP) Sensor Electrical Connector
    G02762830Courtesy of FORD MOTOR CO.

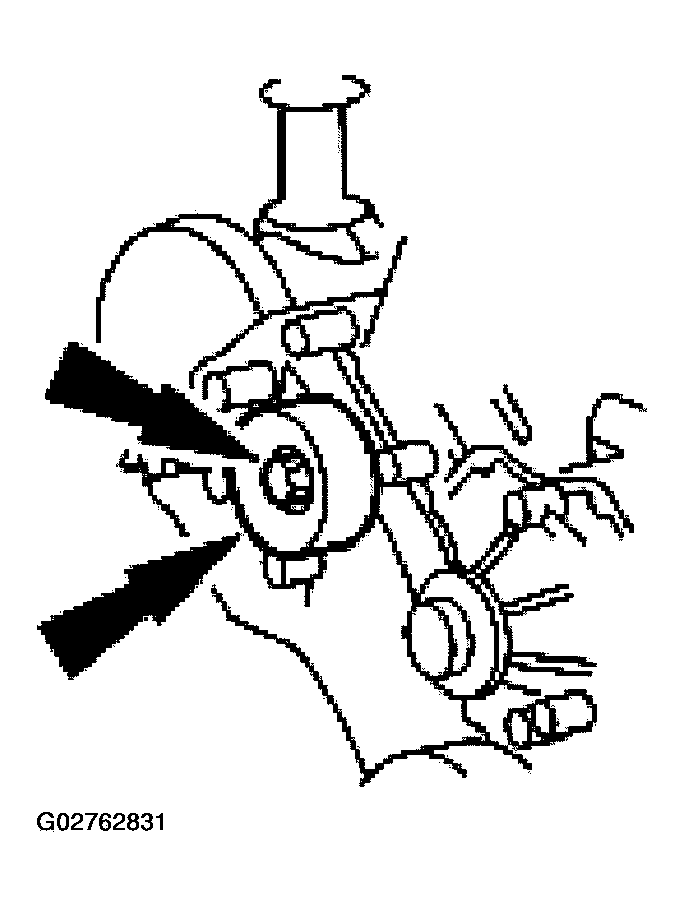

  12. Remove the bolt and the belt idler pulley.
    Fig 6: Removing Bolt And Belt Idler Pulley
    G02762831Courtesy of FORD MOTOR CO.
  13. Remove the bolts.
    Fig 7: Removing Bolts
    G02762832Courtesy of FORD MOTOR CO.
    14. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    Fig 8: Removing Engine Front Cover From Front Cover To Cylinder Block Dowel
    G02762833Courtesy of FORD MOTOR CO.
  14. Remove the engine front cover from the front cover to cylinder block dowel.
    • Discard the engine front cover gasket.
    • Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Inspect the mating surfaces.
