In-Vehicle Repair: Camshaft: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

    ALL ENGINES

    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
  1. Clean the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
  2. Lubricate the camshaft journals with clean engine oil.

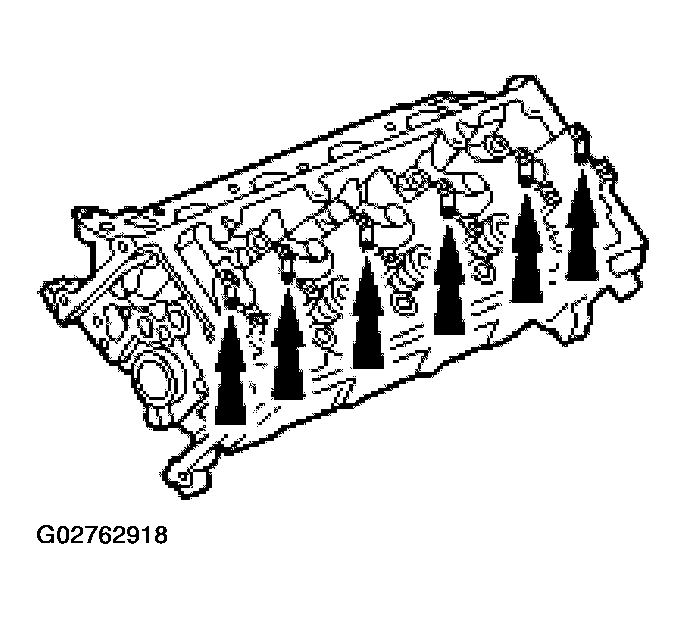

    Fig 1: Lubricating Camshaft Journals
    G02762918Courtesy of FORD MOTOR CO.

    3. ROMEO ENGINE (4.6L)

  3. Install the camshaft and the camshaft bearing caps in their original locations.
    • Lubricate the camshaft bearing caps with clean engine oil.
    • Position the camshaft bearing caps.
    • Install the bolts loosely.

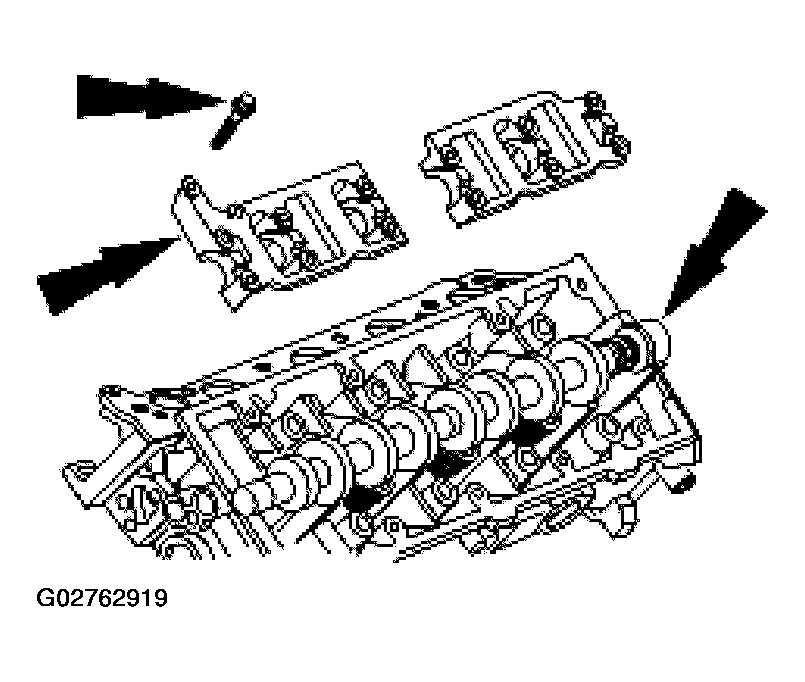

    Fig 2: Lubricating Camshaft Bearing Caps
    G02762919Courtesy of FORD MOTOR CO.
  4. Tighten the bolts in the sequence shown.

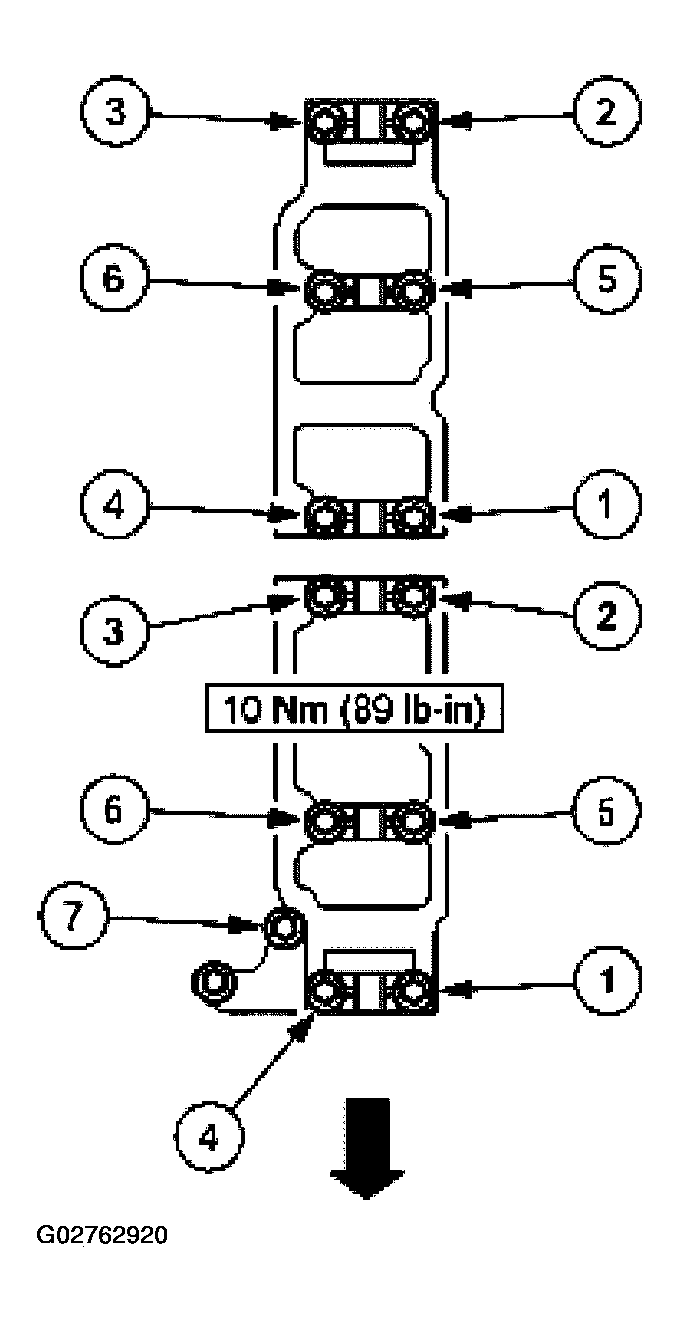

    Fig 3: Camshaft Bearing Cap Bolt Tightening Sequence - Romeo Engine (4.6L)
    G02762920Courtesy of FORD MOTOR CO.
  5. Install the camshaft sprocket.
    1. Install the sprocket.
    2. Install and tighten the bolt.
      • Tighten in two stages.
      • Stage 1: Tighten to 40 Nm (30 lb-ft).
      • Stage 2: Tighten an additional 90 degrees.

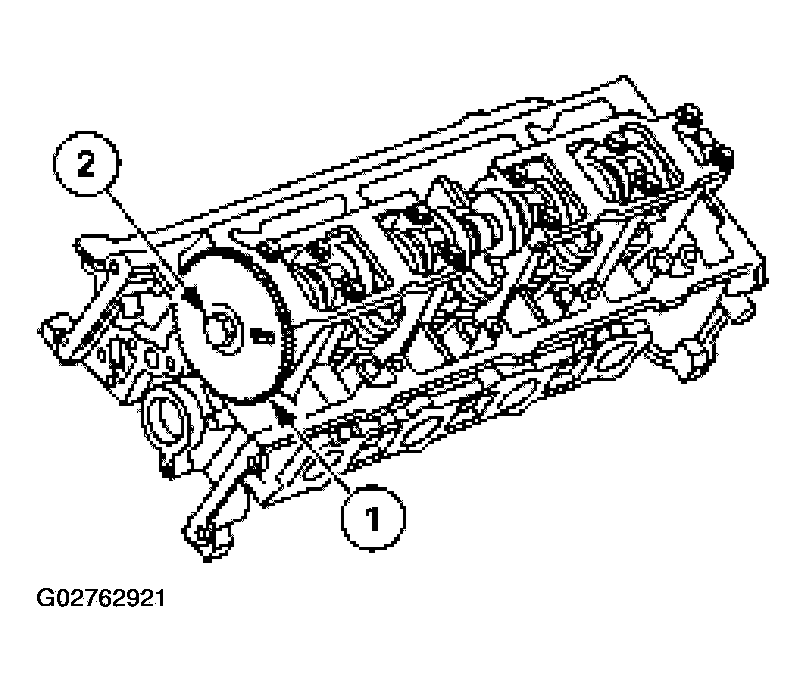

    Fig 4: Installing Camshaft Sprocket
    G02762921Courtesy of FORD MOTOR CO.

    6. WINDSOR ENGINE (5.4L)

  6. Install the camshaft and the camshaft bearing caps in their original locations.
    • Lubricate the camshaft bearing caps with clean engine oil.
    • Position the camshaft bearing caps.
    • Install the bolts loosely.

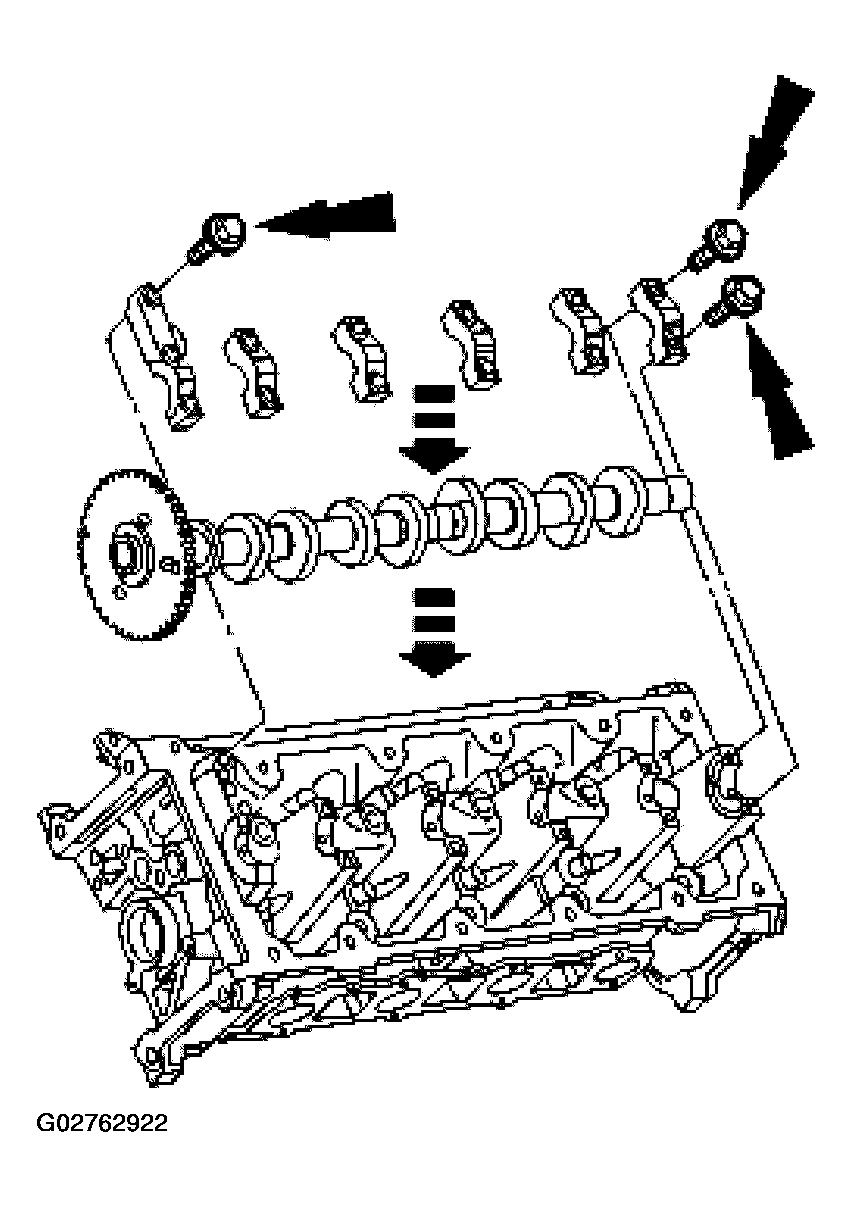

    Fig 5: Lubricating Camshaft Bearing Caps With Clean Engine Oil
    G02762922Courtesy of FORD MOTOR CO.
  7. Tighten the bolts in the sequence shown.

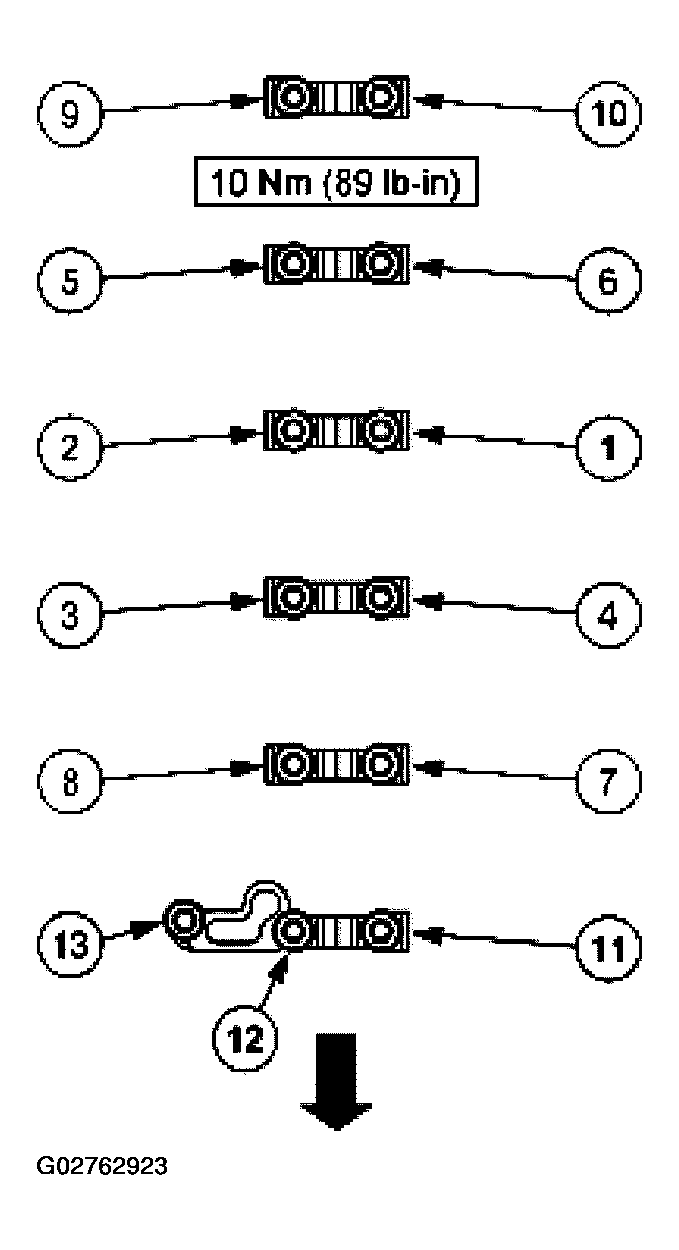

    Fig 6: Camshaft Bearing Cap Bolt Tightening Sequence - Windsor Engine (5.4L)
    G02762923Courtesy of FORD MOTOR CO.

    8. ALL ENGINES

  8. Install the timing chains. For additional information, refer to TIMING DRIVE COMPONENTS - Romeo Engine (4.6L)  or TIMING DRIVE COMPONENTS - Windsor Engine (5.4L) .
  9. Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
