Piston - Pin Connecting Rod, Press Fit: Disassembly

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the piston pin out from the connecting rod and piston assembly.

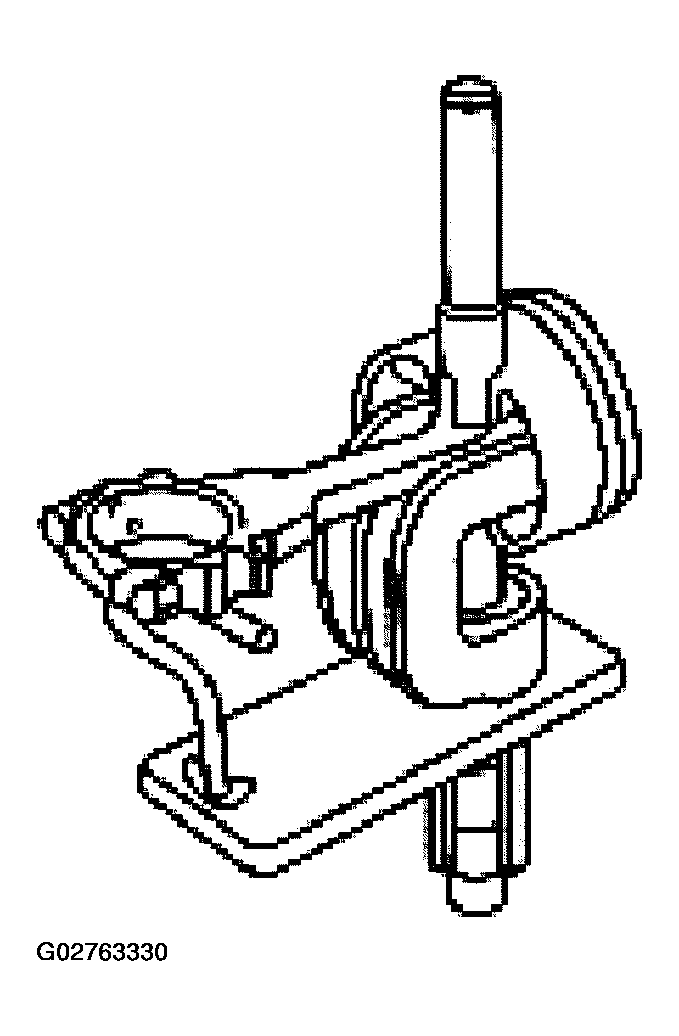

    Fig 1: Pressing Piston Pin Out From Connecting Rod And Piston Assembly
    G02763330Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod from the piston.

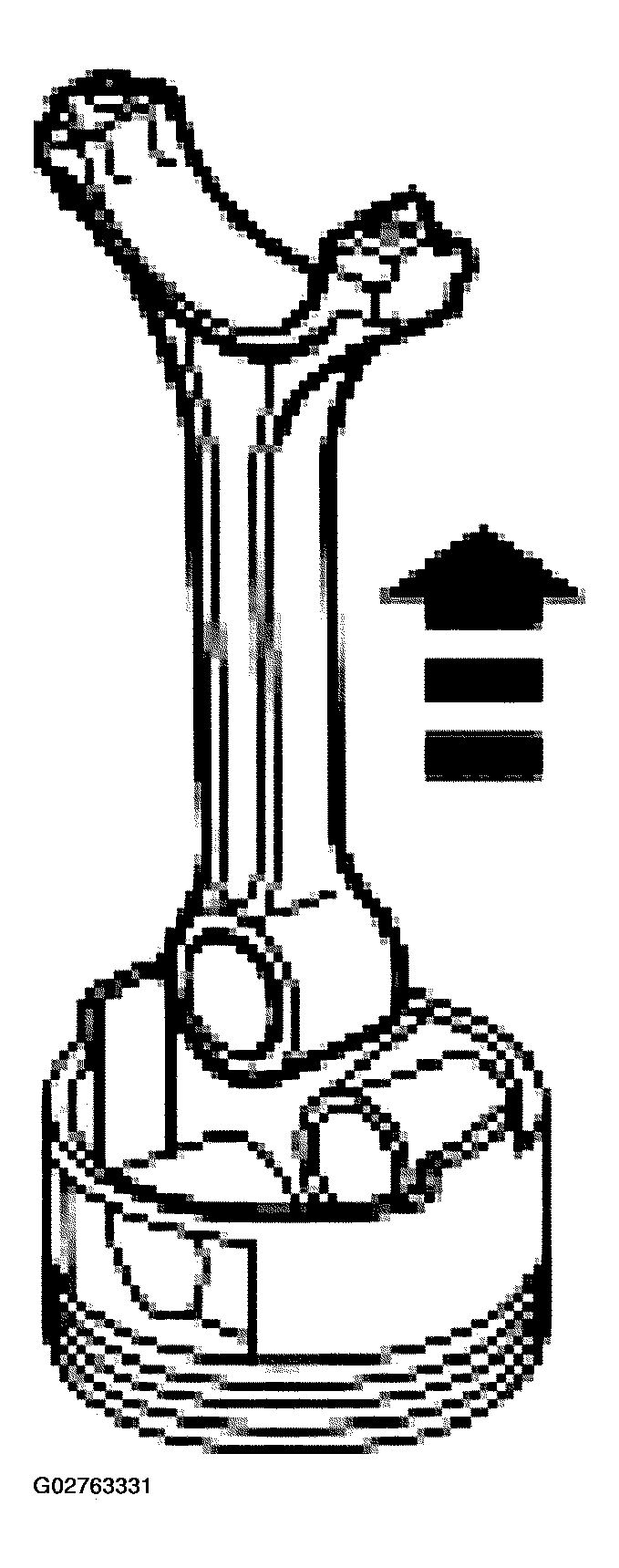

    Fig 2: Removing Connecting Rod From Piston
    G02763331Courtesy of FORD MOTOR CO.
  3. Clean and inspect the connecting rod and piston. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
