Piston - Pin Connecting Rod, Floating Pin: Disassembly

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clips.

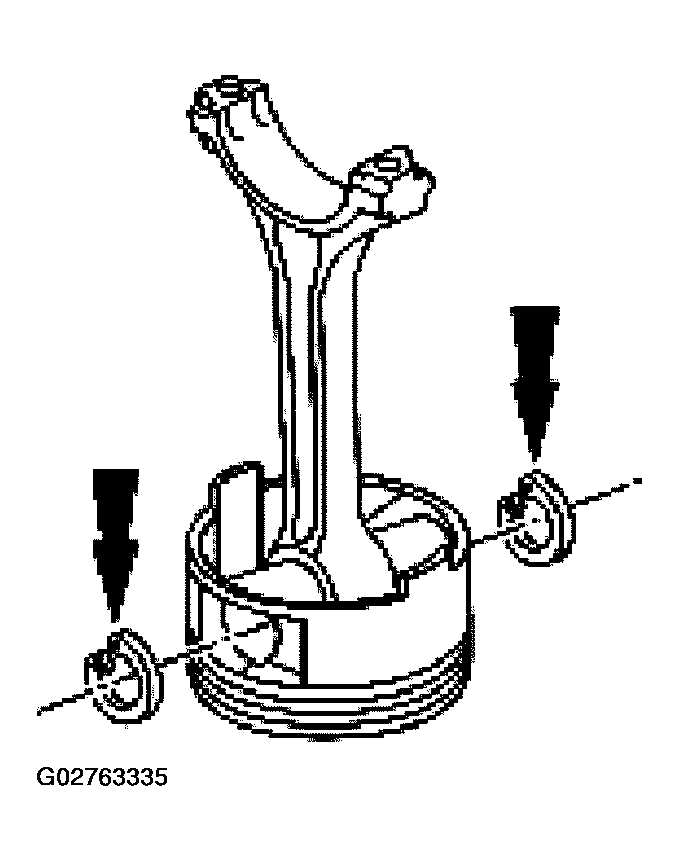

    Fig 1: Removing Clips
    G02763335Courtesy of FORD MOTOR CO.
  2. Remove the piston pin from the piston and connecting rod assembly.

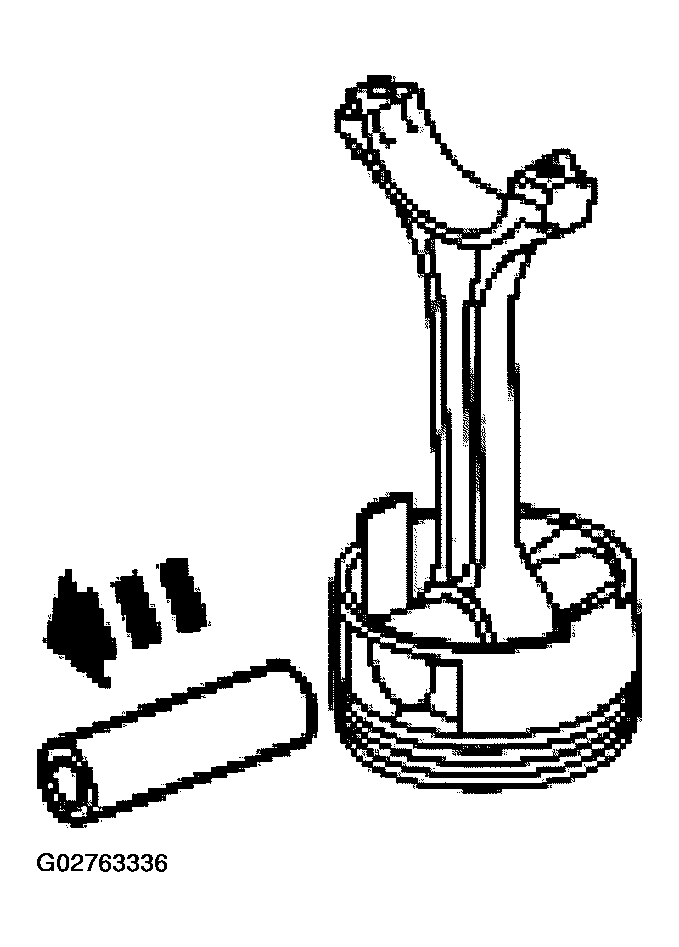

    Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
    G02763336Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod from the piston.

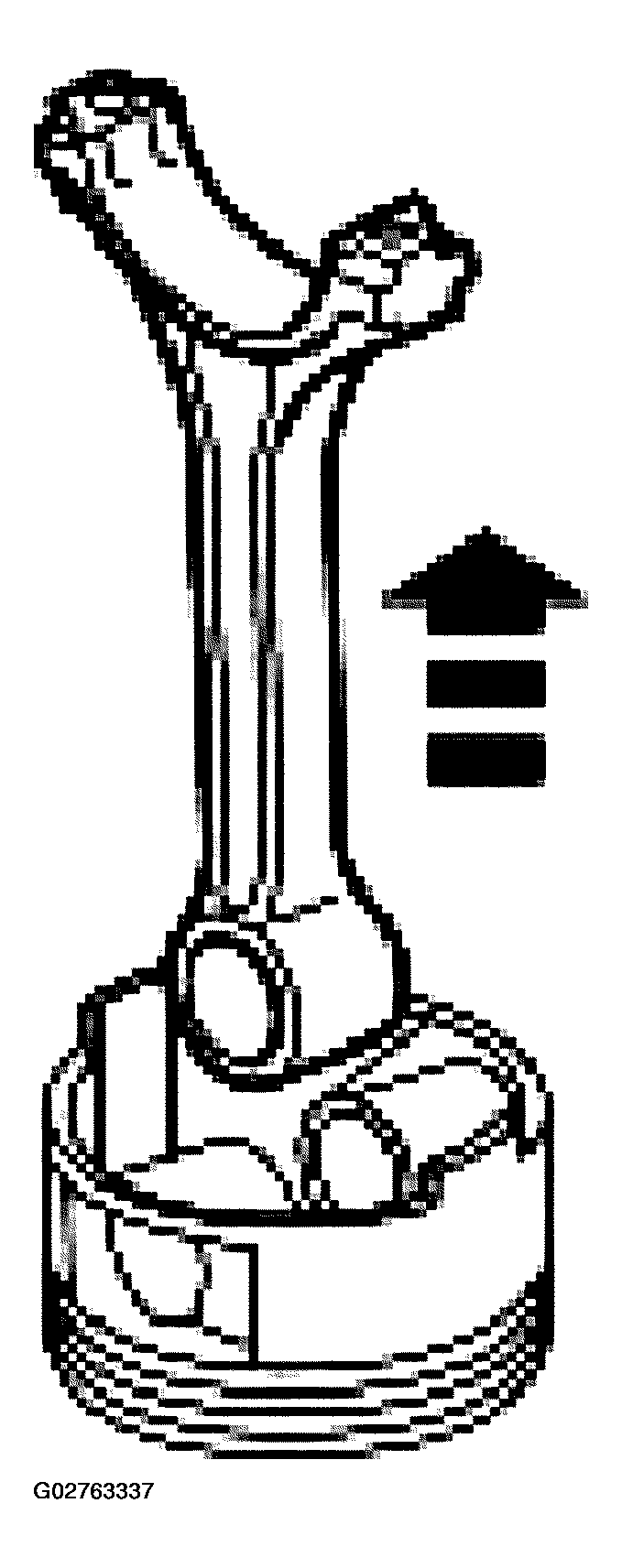

    Fig 3: Removing Connecting Rod From Piston
    G02763337Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
