Intake Manifold Assembly - 5.4L: Assembly

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

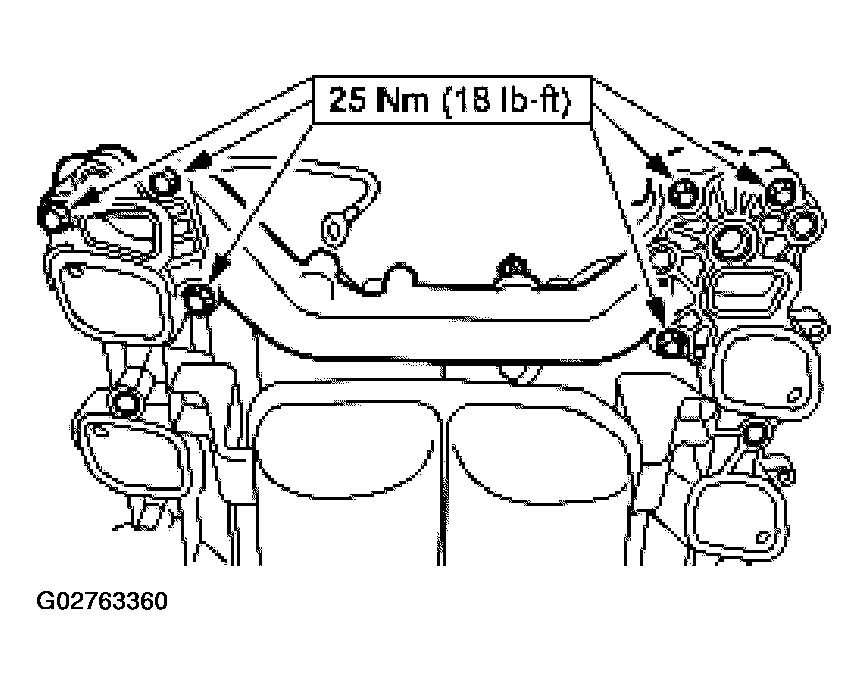

Install the water crossover tube.

Fig 1: Installing Water Crossover Tube
Courtesy of FORD MOTOR CO.

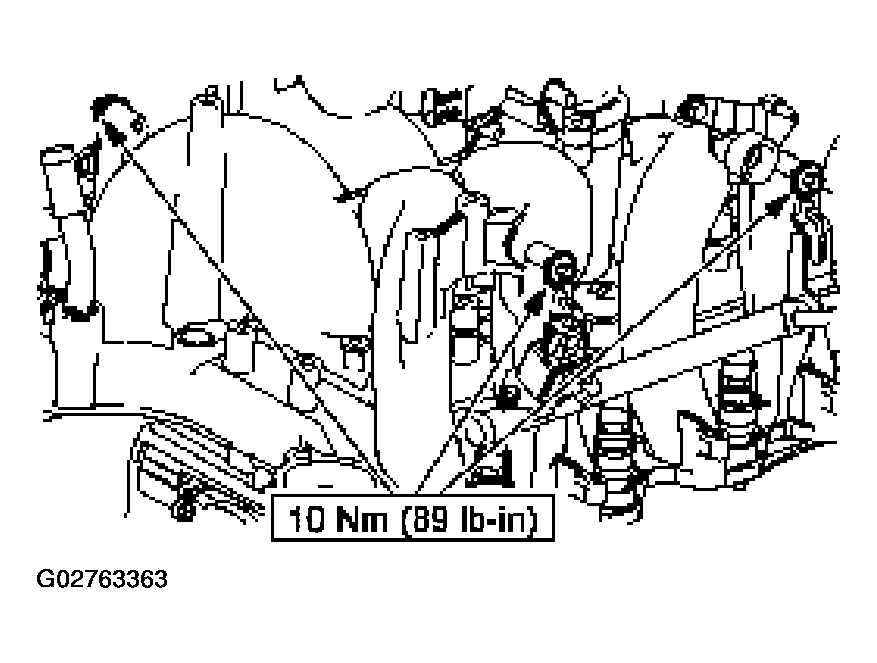

Install the engine noise shield.

Fig 2: Installing Engine Noise Shield
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the new O-ring seals with clean engine oil, to aid installation.

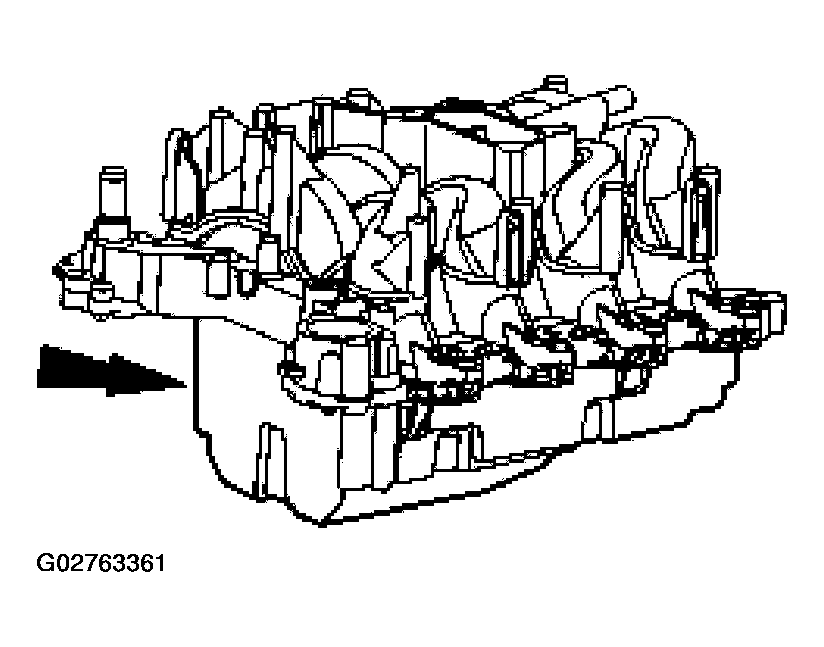

Fig 3: Installing Fuel Injectors Into Fuel Injection Supply Manifold

Courtesy of FORD MOTOR CO.

Install the fuel injectors into the fuel injection supply manifold.
Install the fuel injection supply manifold.

Fig 4: Installing Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.
