Component Location

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

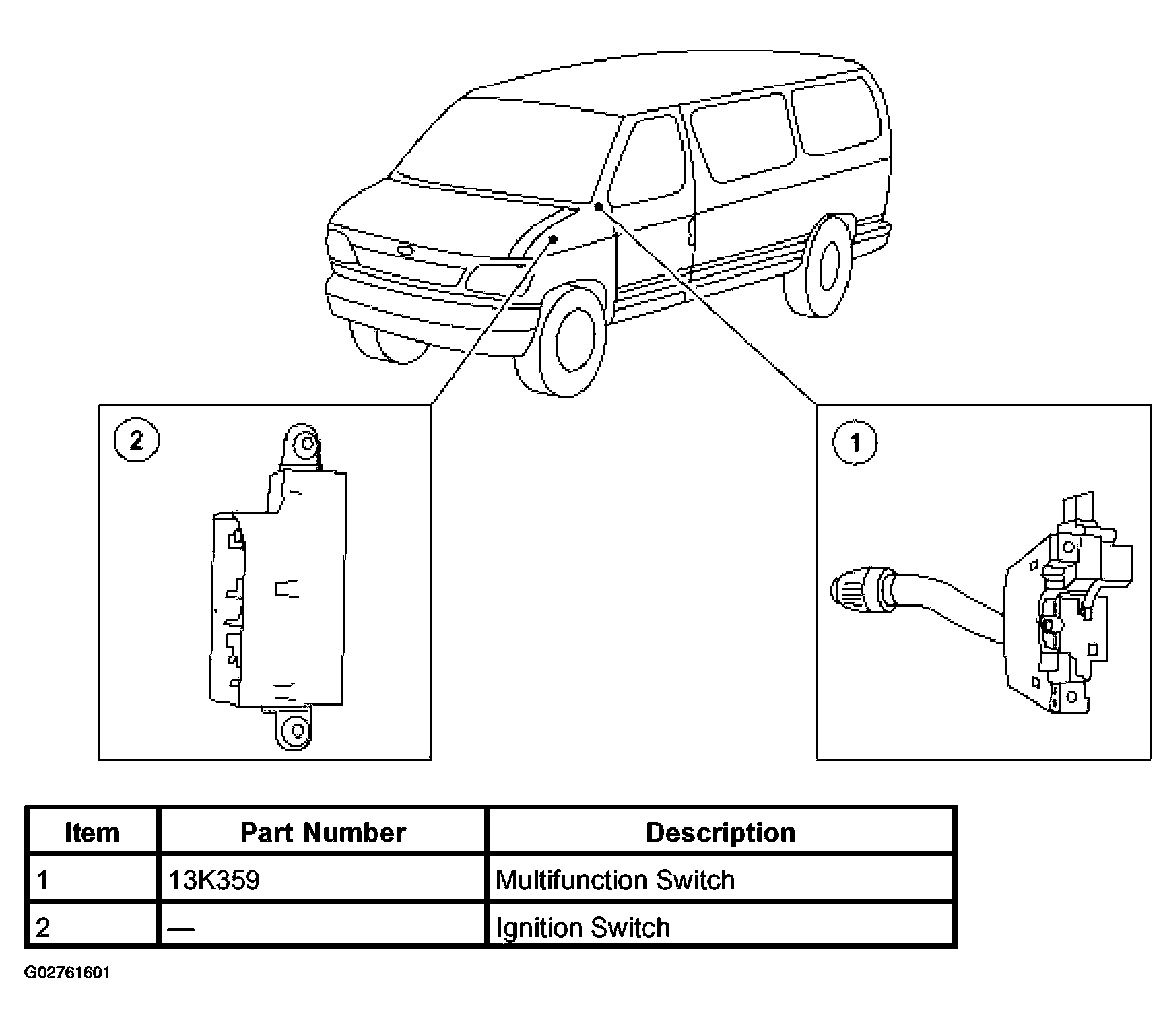

Fig 1: Locating Steering Column Switches Components

Courtesy of FORD MOTOR CO.

The multi-function switch is mounted to the LH side of the steering column and controls the following:

Turn signal
Windshield wiper washer control
Headlamp dimmer/flash-to-pass/hazard

The ignition switch is mounted on the underside of the steering column and is activated by rotating the key lock cylinder on the steering column tube.

The key-in-ignition switch terminal is part of the key lock cylinder.

The shift interlock system prevents movement of the gearshift lever from the PARK position with the ignition switch placed in the RUN position until the brake pedal is actuated or until vehicle electrical power is interrupted. The shift lock actuator is part of the shift interlock system and is mounted at the base of the steering column tube. It engages the transmission shift selector position insert to lock the transmission column shift selector tube and gearshift lever.

The transmission control switch (TCS) and transmission control indicator lamp (TCIL) are located inside the end of the gearshift lever. Pushing the TCS either disengages or engages the overdrive function of the transmission. When overdrive is disengaged, the TCIL illuminates the word OFF. Each time the ignition switch is placed in the RUN position, the transmission automatically provides overdrive operation regardless of TCS position the last time the vehicle was running.

For information on the turn signal, refer to EXTERIOR LIGHTING .

For information on windshield wiper/washer control, refer to WIPERS AND WASHERS .

For information on headlamp dimmer/flash-to-pass, refer to EXTERIOR LIGHTING .

For information on hazard flasher, refer to EXTERIOR LIGHTING .
