Sector Shaft Arm Drag Link: Installation
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Follow the removal procedure in reverse order. Install new cotter pins.

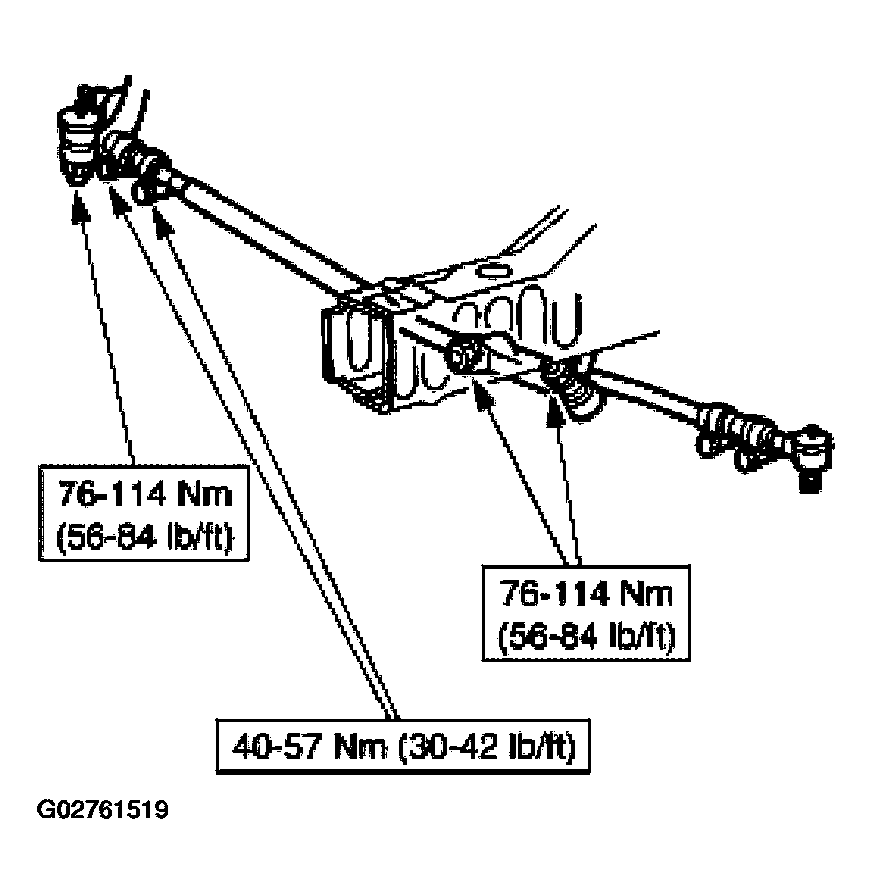

- Tighten the castellated nuts and the tie rod adjusting sleeve bolts.
- Check toe-in. For additional information, refer to SUSPENSION SYSTEM-GENERAL INFORMATION .
- Check clear vision. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
NOTE:
The two bolts and nuts on the tie rod adjusting sleeve clamp for the tie rod end must be positioned within a limit of 45 degrees (+/-). The threaded ends of the bolts on the left tie rod end point toward the front of the vehicle. The threaded ends on the right tie rod end face rearward.
