Power Steering Pump

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

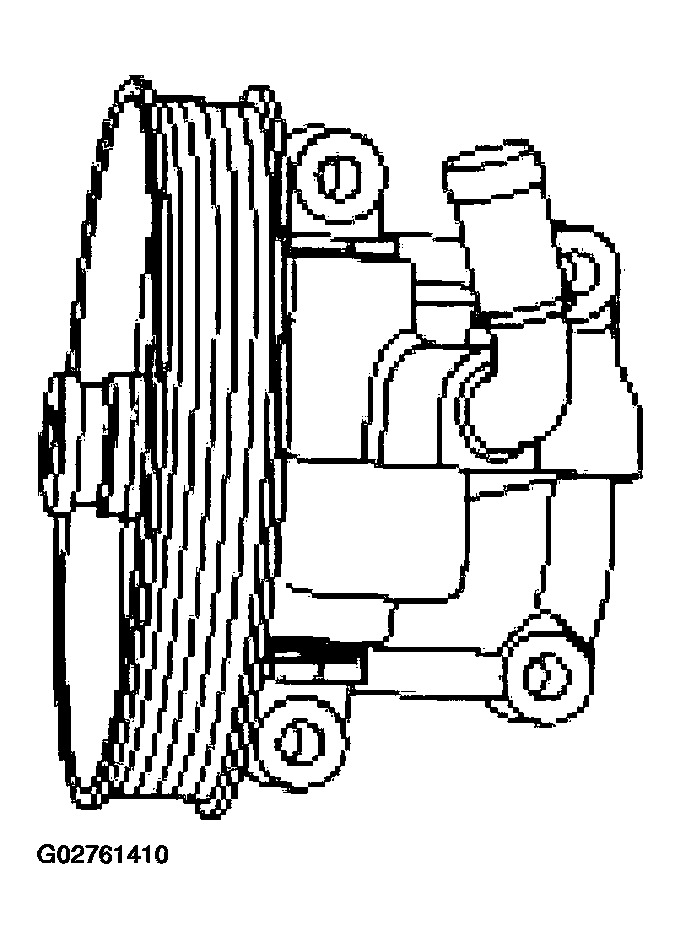

Fig 1: View Of Power Steering Pump (4.6L, 5.4L, 6.8L Shown; 6.0L Similar)

Courtesy of FORD MOTOR CO.

The CIII power steering pump has the following features:

It is a belt-driven, vane-type, power steering pump.
It is mounted directly to the engine block by 3 bolts (4.6L, 5.4L or 6.8L) or 4 bolts (6.0L).
The power steering pump is replaced as an assembly.
An identification tag attached to the power steering pump indicates the model number and bar code.
Refer to these when pump replacement is required.
The power steering pump uses a quick connect fitting for the power steering pressure hose.
