Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the front anti-lock brake system (ABS) sensor wire from the front brake hose.
    1. Disconnect the electrical connector.
    2. Detach the sensor wire from the retainers.

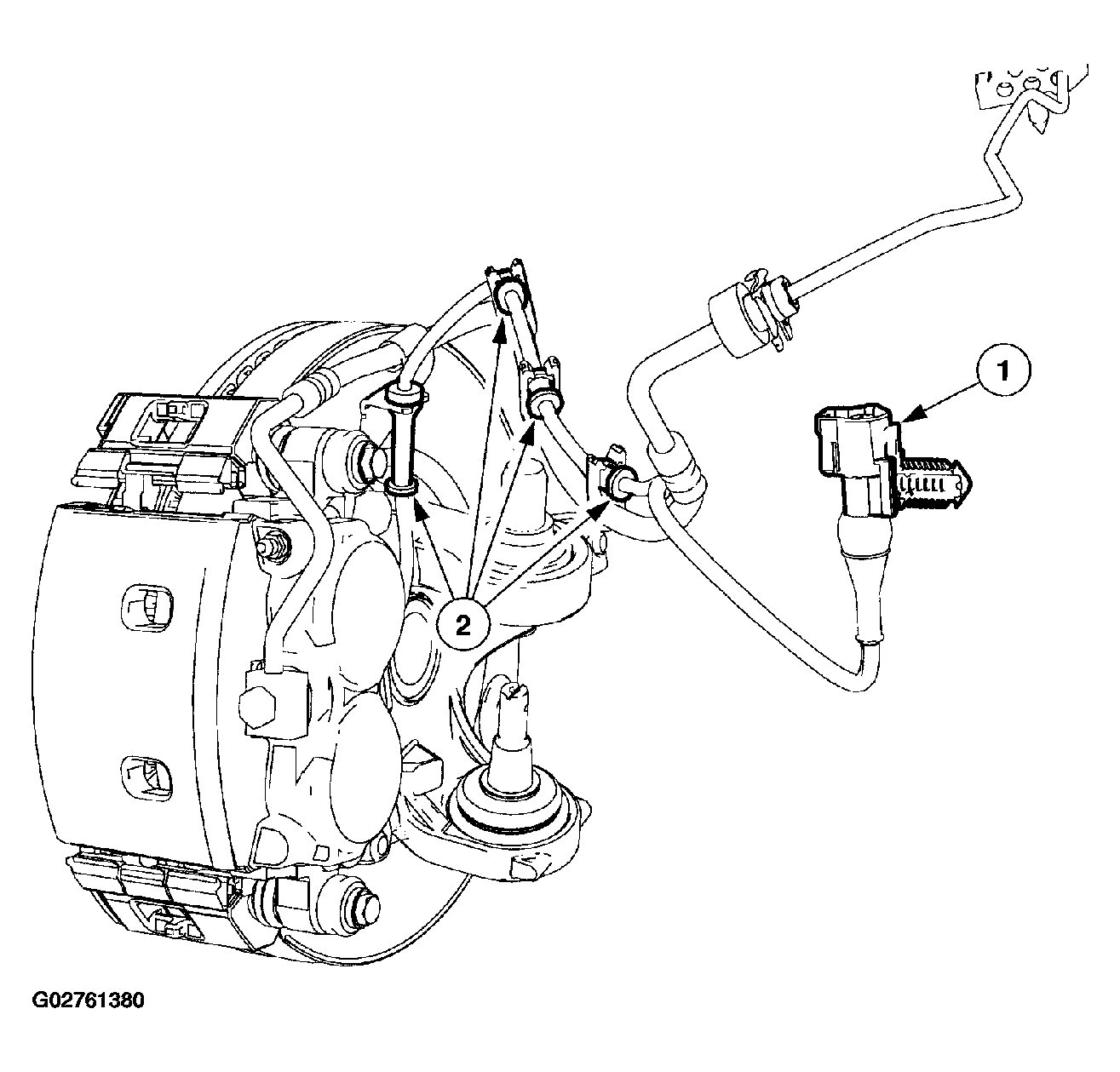

    Fig 1: Detaching Front Anti-Lock Brake System (ABS) Sensor Wire From Front Brake Hose
    G02761380Courtesy of FORD MOTOR CO.
  2. Remove the front disc brake rotor. For additional information, refer to DISC & DRUM .
  3. Remove the front ABS sensor.
    1. Remove the bolts.

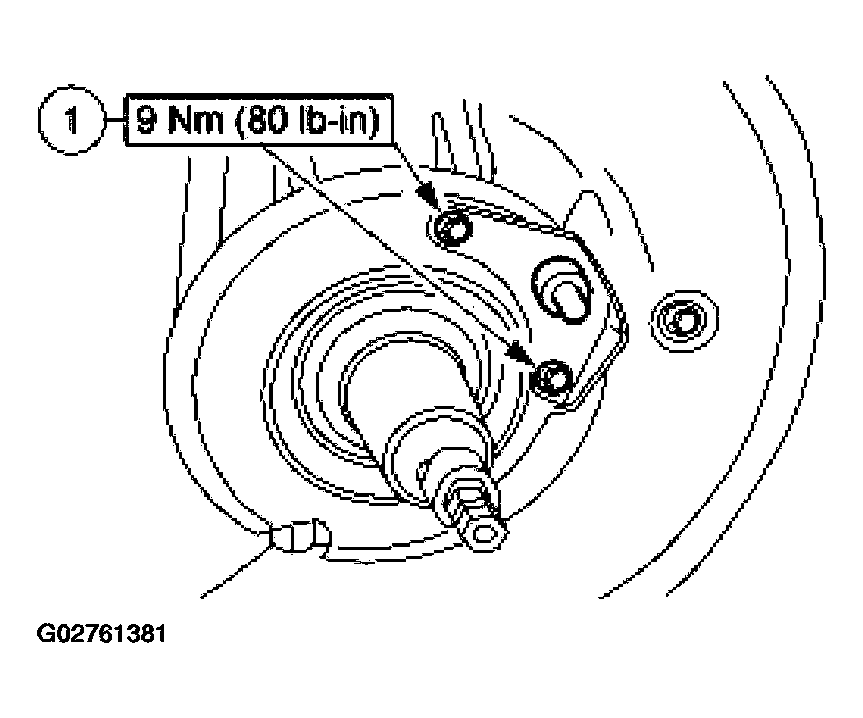

    Fig 2: ABS Sensor Bolt Torque Specifications
    G02761381Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
