Pinpoint Test I: DTC C1095 And C1096: Testing

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

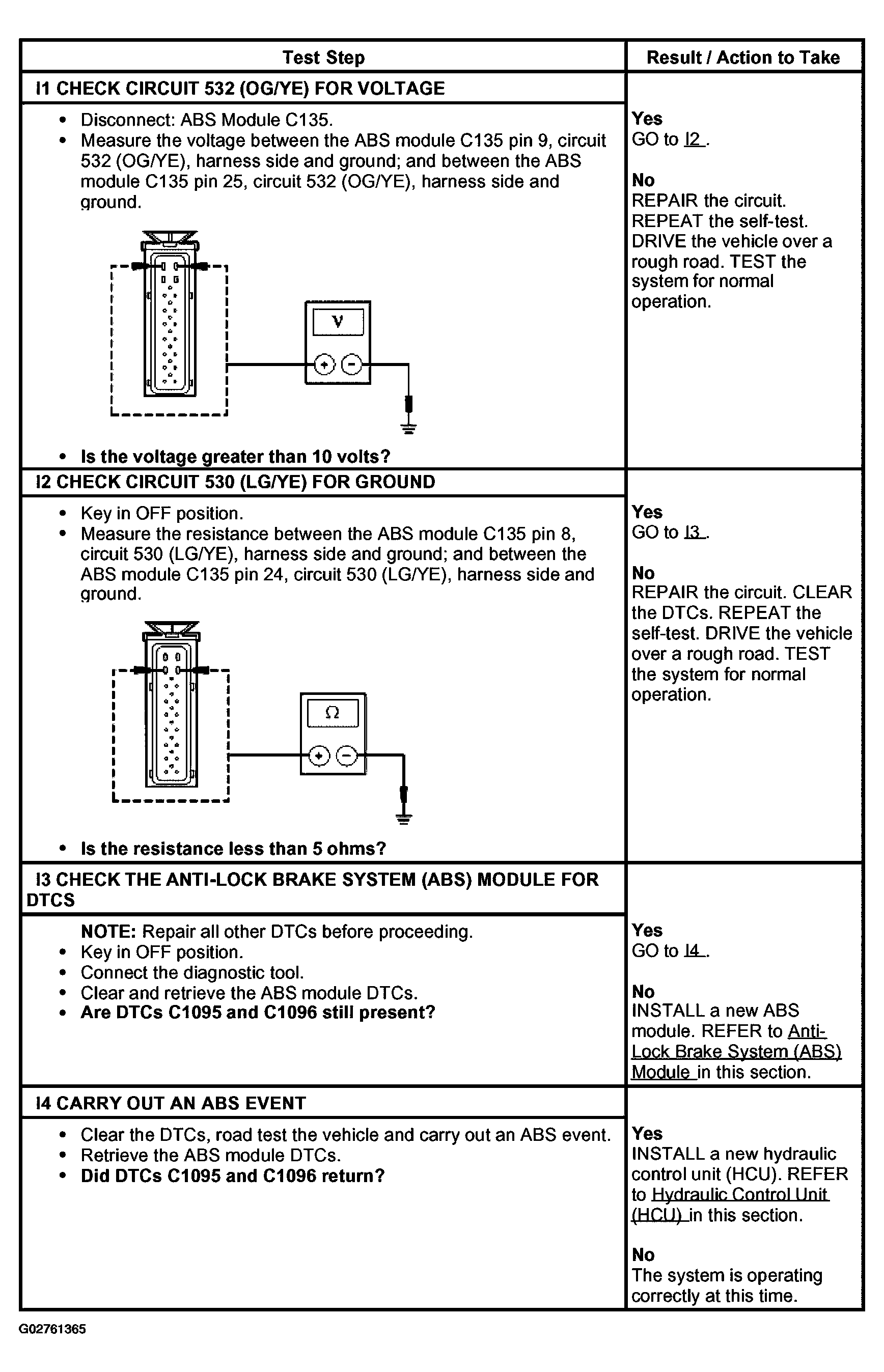

Fig 1: Pinpoint Test I: DTC C1095 And C1096 - Anti-Lock Brake System (ABS) Hydraulic Pump Motor Circuit Failure

Courtesy of FORD MOTOR CO.
