Pinpoint Test D: DTCs C1148, C1158, And C1229: Testing

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

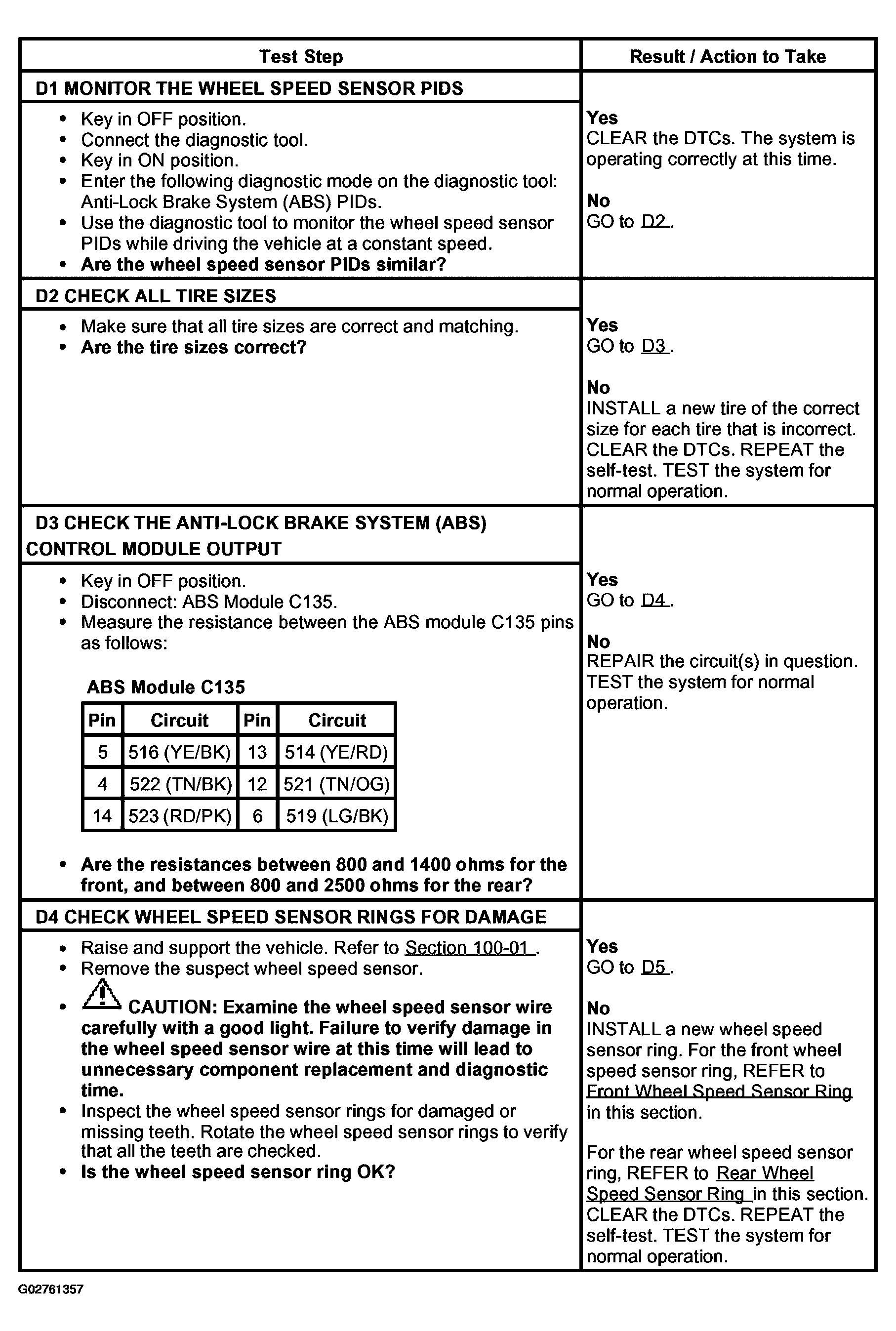

Fig 1: Pinpoint Test D: DTCS C1148, C1158, And C1229 Wheel Speed Sensor Coherency Fault (D1 To D4)
G02761357Courtesy of FORD MOTOR CO.

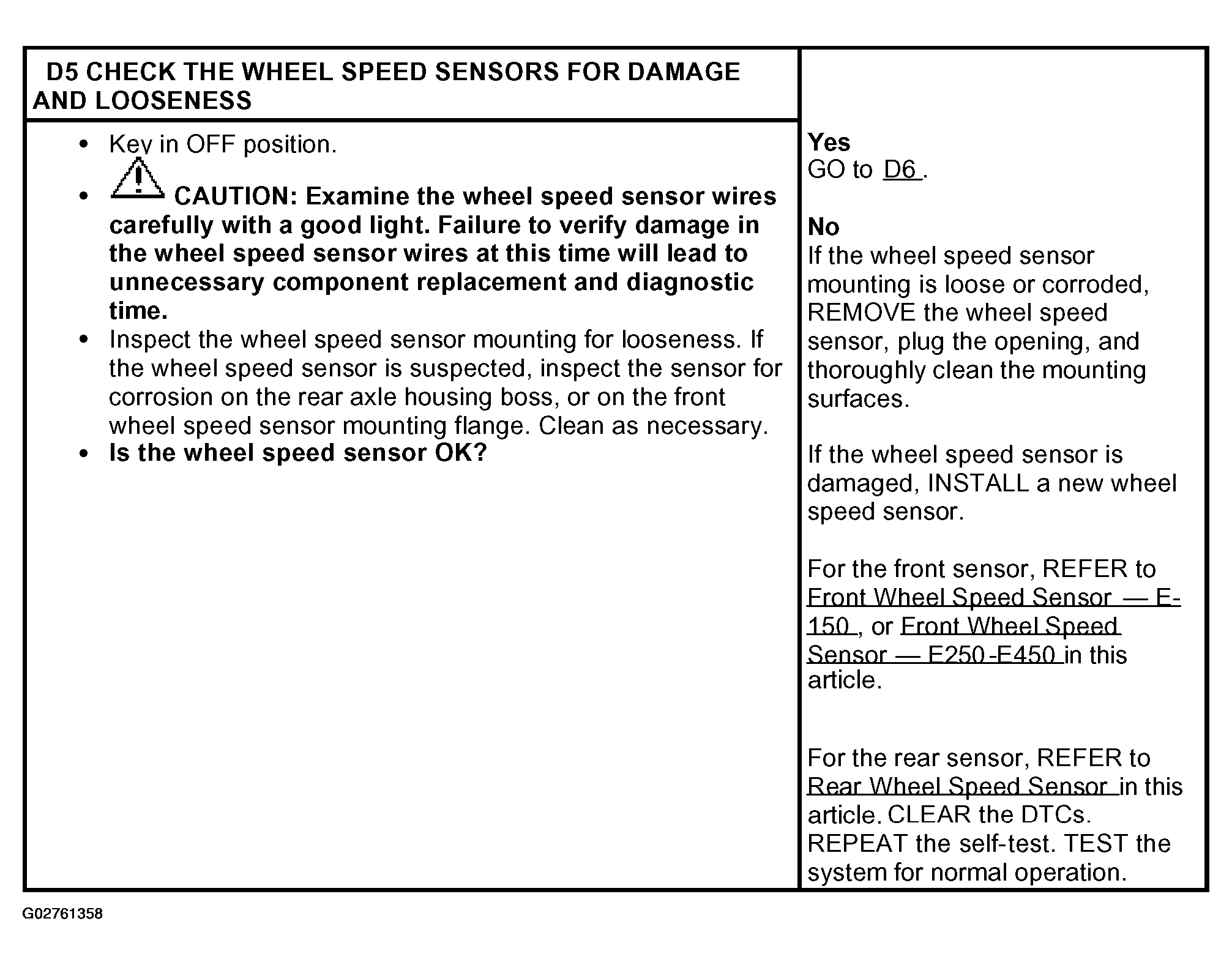

Fig 2: Pinpoint Test D: DTCS C1148, C1158, And C1229 Wheel Speed Sensor Coherency Fault (D5)
G02761358Courtesy of FORD MOTOR CO.

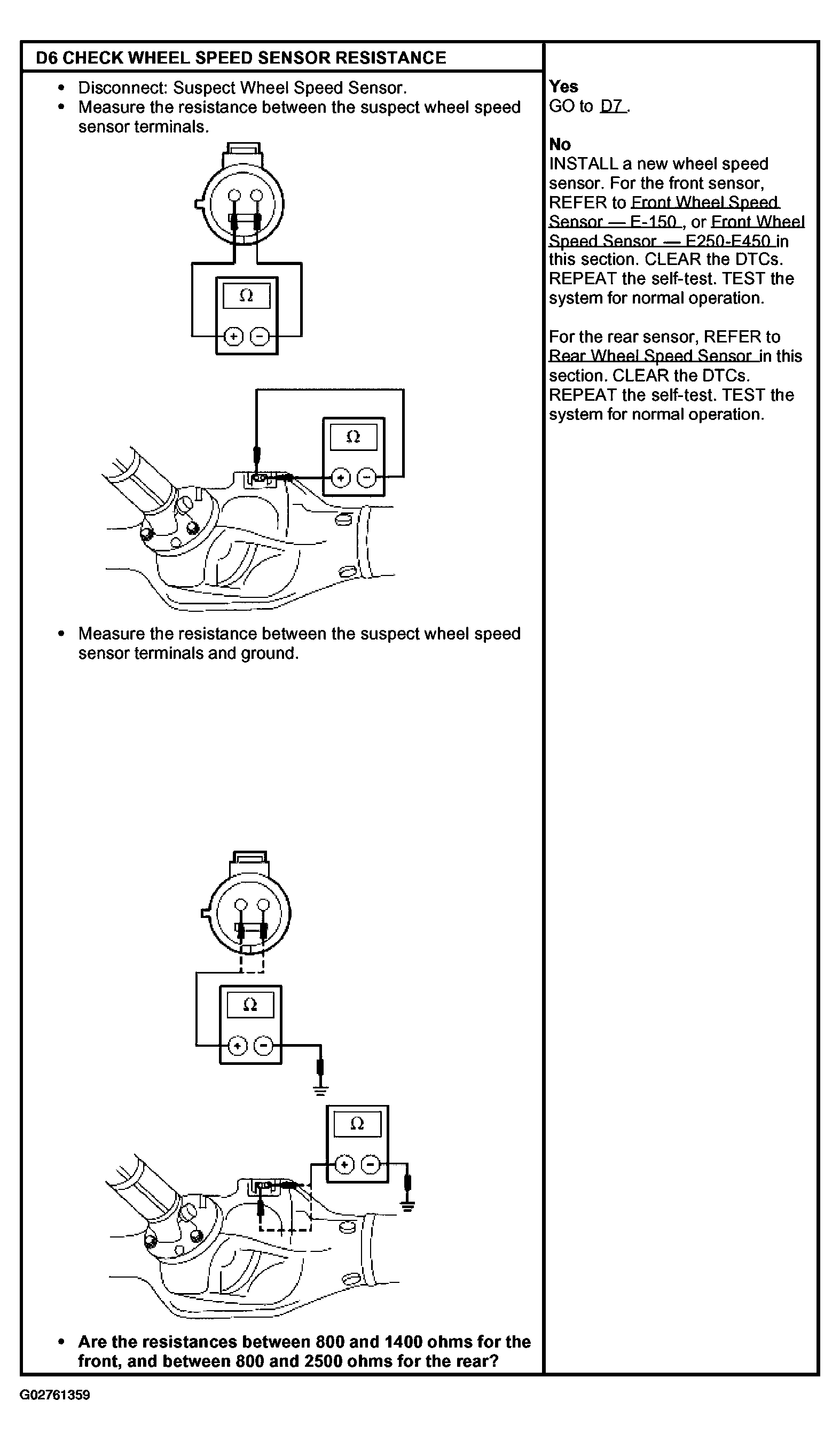

Fig 3: Pinpoint Test D: DTCS C1148, C1158, And C1229 Wheel Speed Sensor Coherency Fault (D6)
G02761359Courtesy of FORD MOTOR CO.

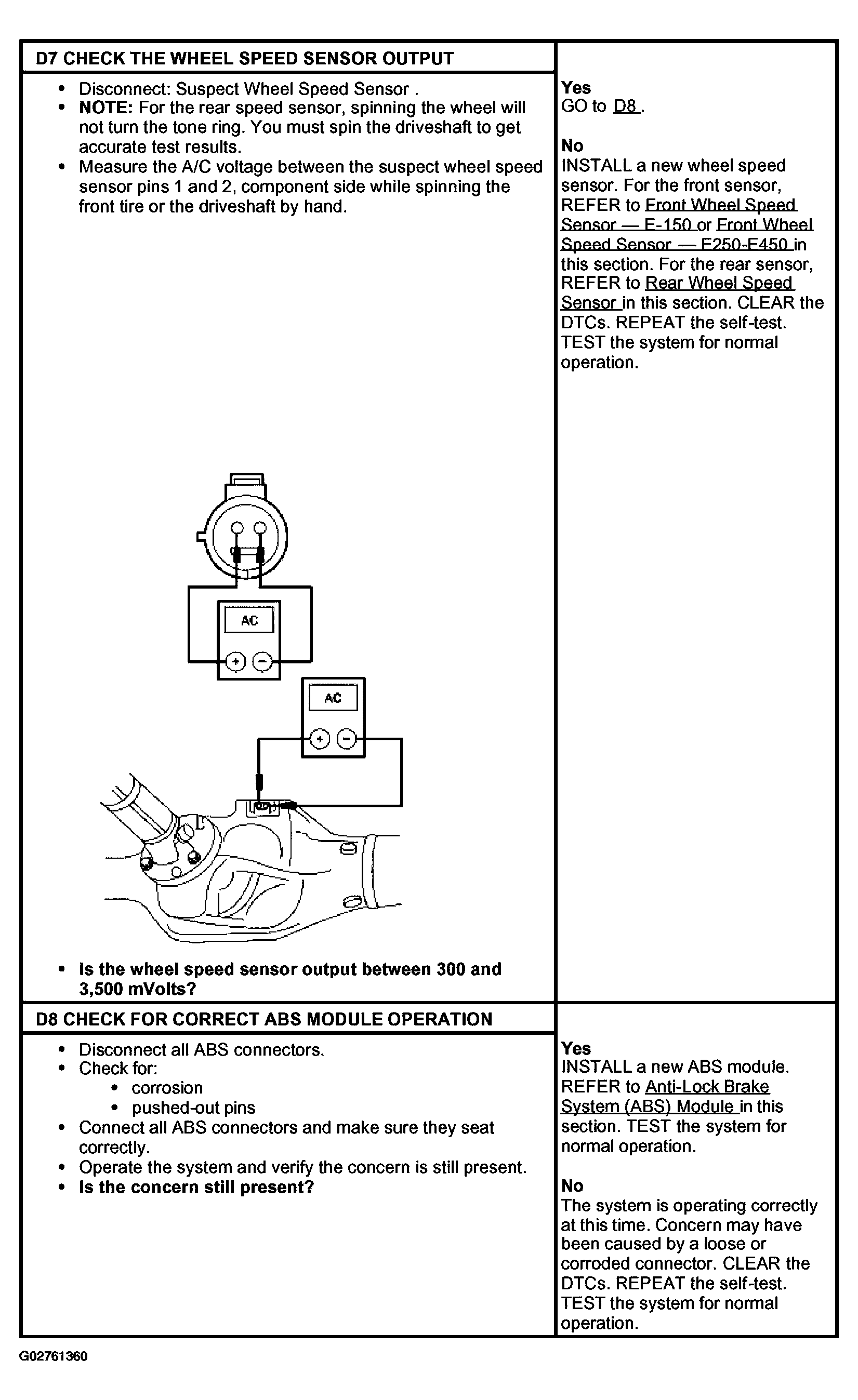

Fig 4: Pinpoint Test D: DTCS C1148, C1158, And C1229 Wheel Speed Sensor Coherency Fault (D7 To D8)
G02761360Courtesy of FORD MOTOR CO.
