Pinpoint Test B: DTC C1145 (RF), DTC C1155 (LF), DTC C1230 (REAR): Testing

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

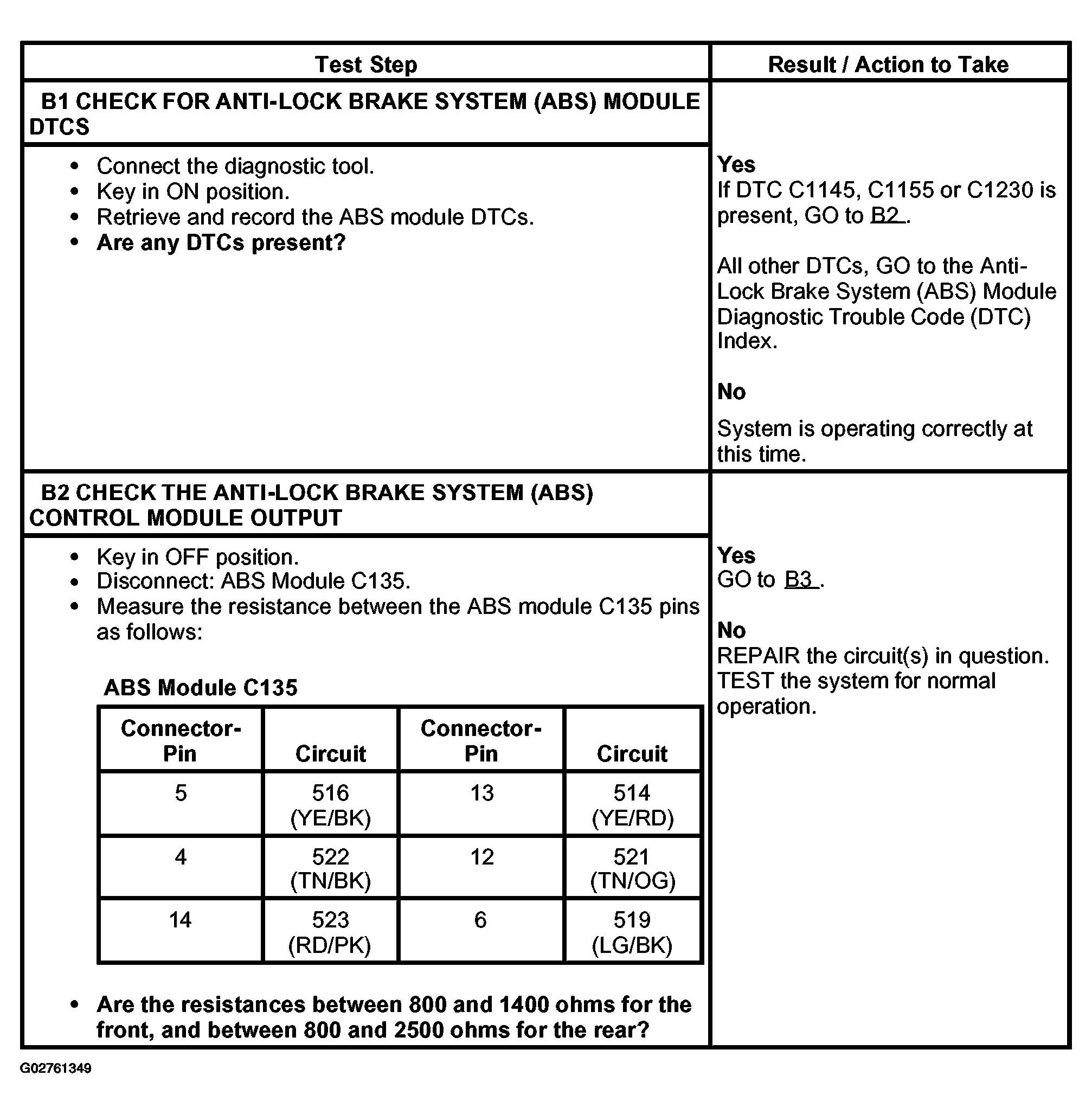

Fig 1: Pinpoint Test B: DTC C1145 (RF), DTC C1155 (LF), DTC C1230 (Rear) - Wheel Speed Sensor Input Circuit Failure (B1 To B2)

Courtesy of FORD MOTOR CO.

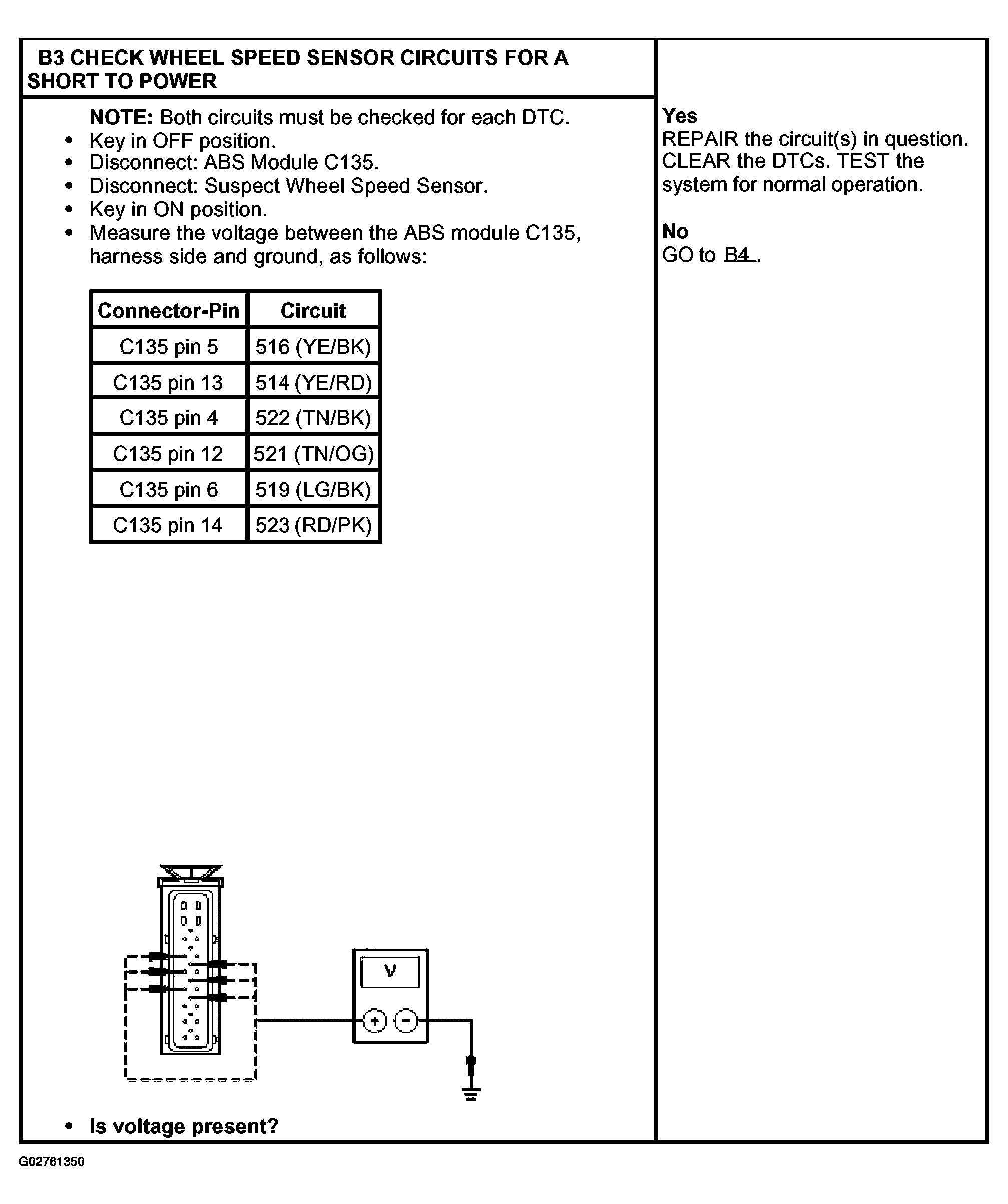

Fig 2: Pinpoint Test B: DTC C1145 (RF), DTC C1155 (LF), DTC C1230 (Rear) - Wheel Speed Sensor Input Circuit Failure (B3)

Courtesy of FORD MOTOR CO.

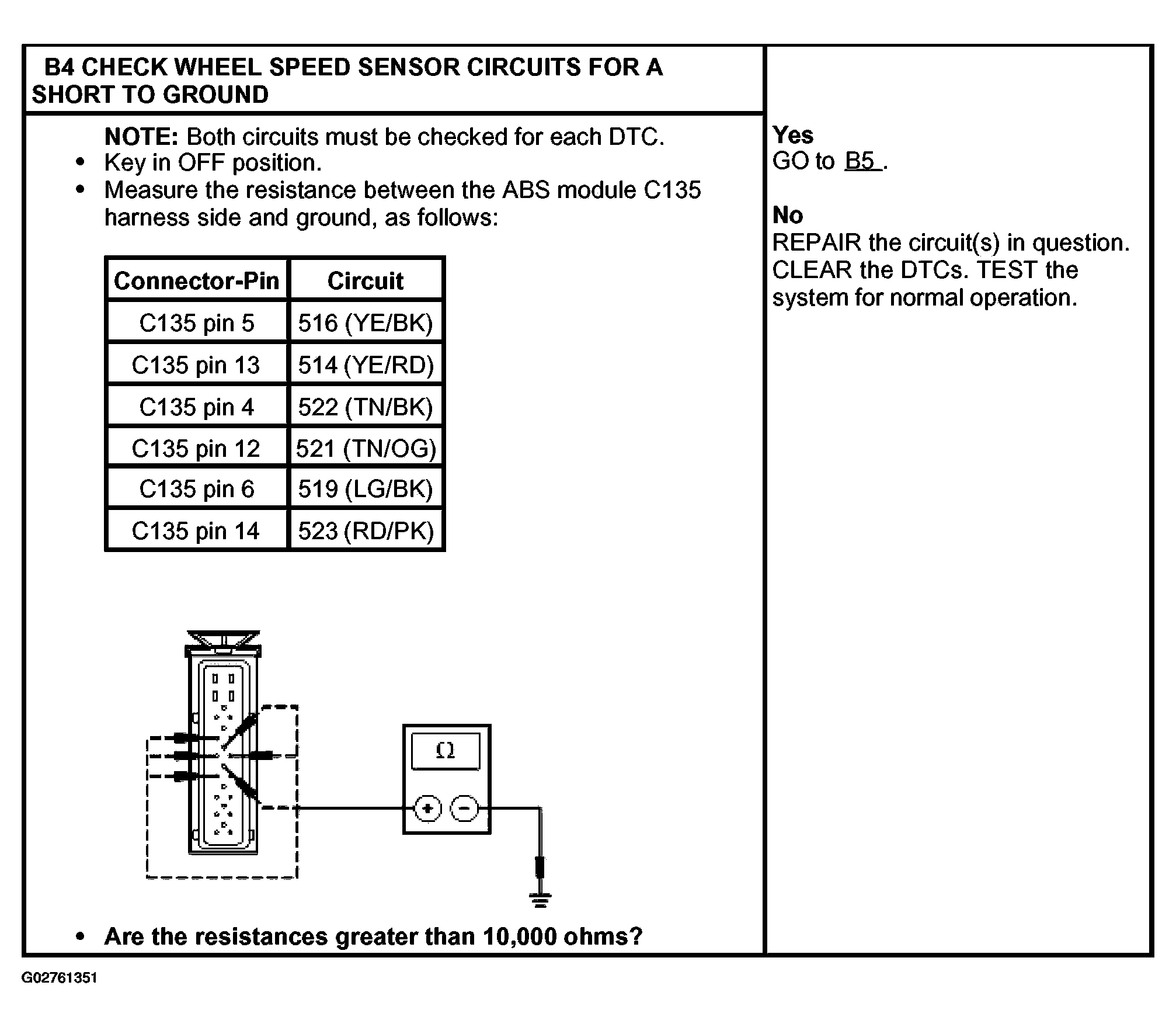

Fig 3: Pinpoint Test B: DTC C1145 (RF), DTC C1155 (LF), DTC C1230 (Rear) - Wheel Speed Sensor Input Circuit Failure (B4)

Courtesy of FORD MOTOR CO.

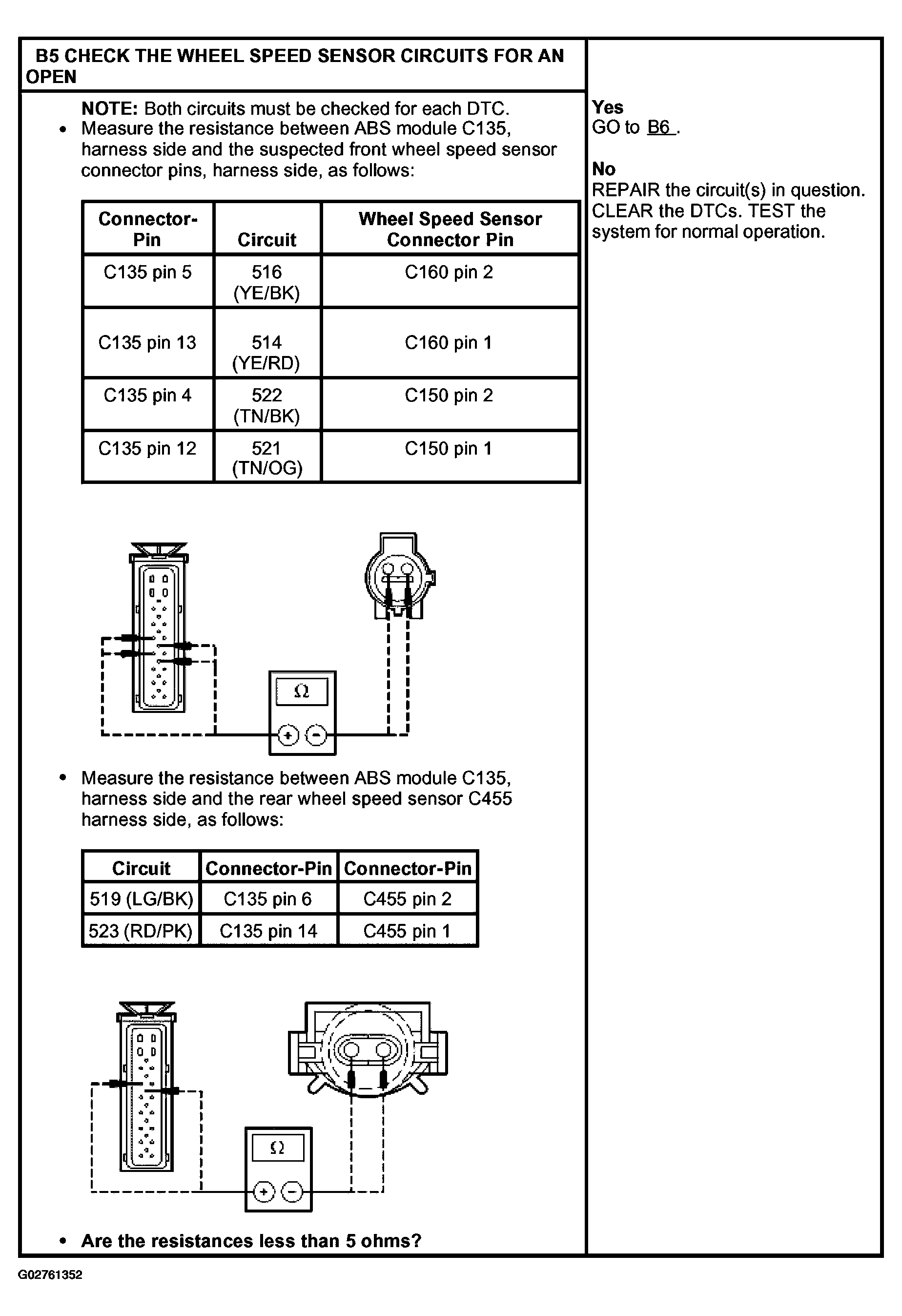

Fig 4: Pinpoint Test B: DTC C1145 (RF), DTC C1155 (LF), DTC C1230 (Rear) - Wheel Speed Sensor Input Circuit Failure (B5)

Courtesy of FORD MOTOR CO.

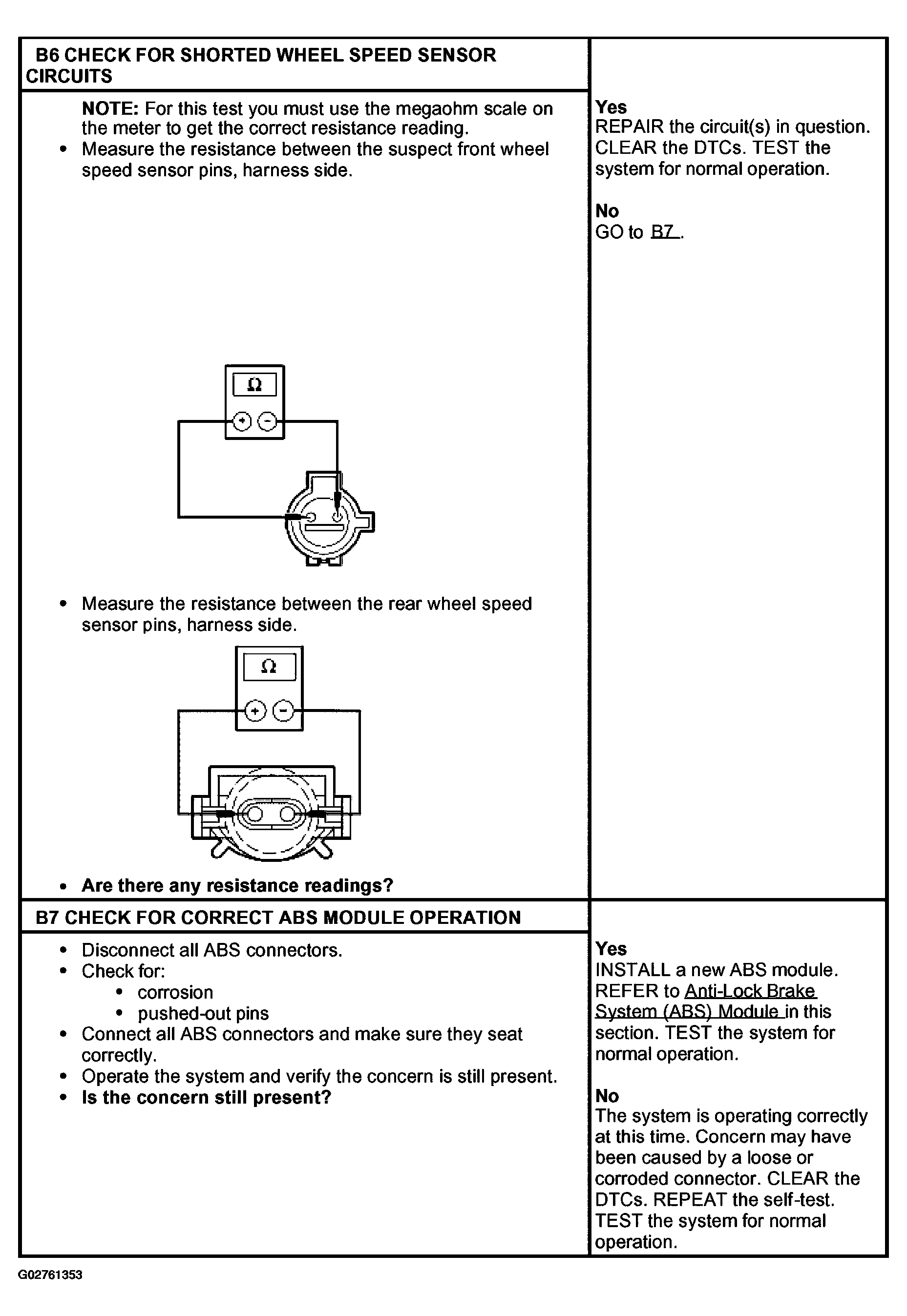

Fig 5: Pinpoint Test B: DTC C1145 (RF), DTC C1155 (LF), DTC C1230 (Rear) - Wheel Speed Sensor Input Circuit Failure (B6 To B7)

Courtesy of FORD MOTOR CO.
