Pinpoint Test B: Vibration When The Brakes Are Applied

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

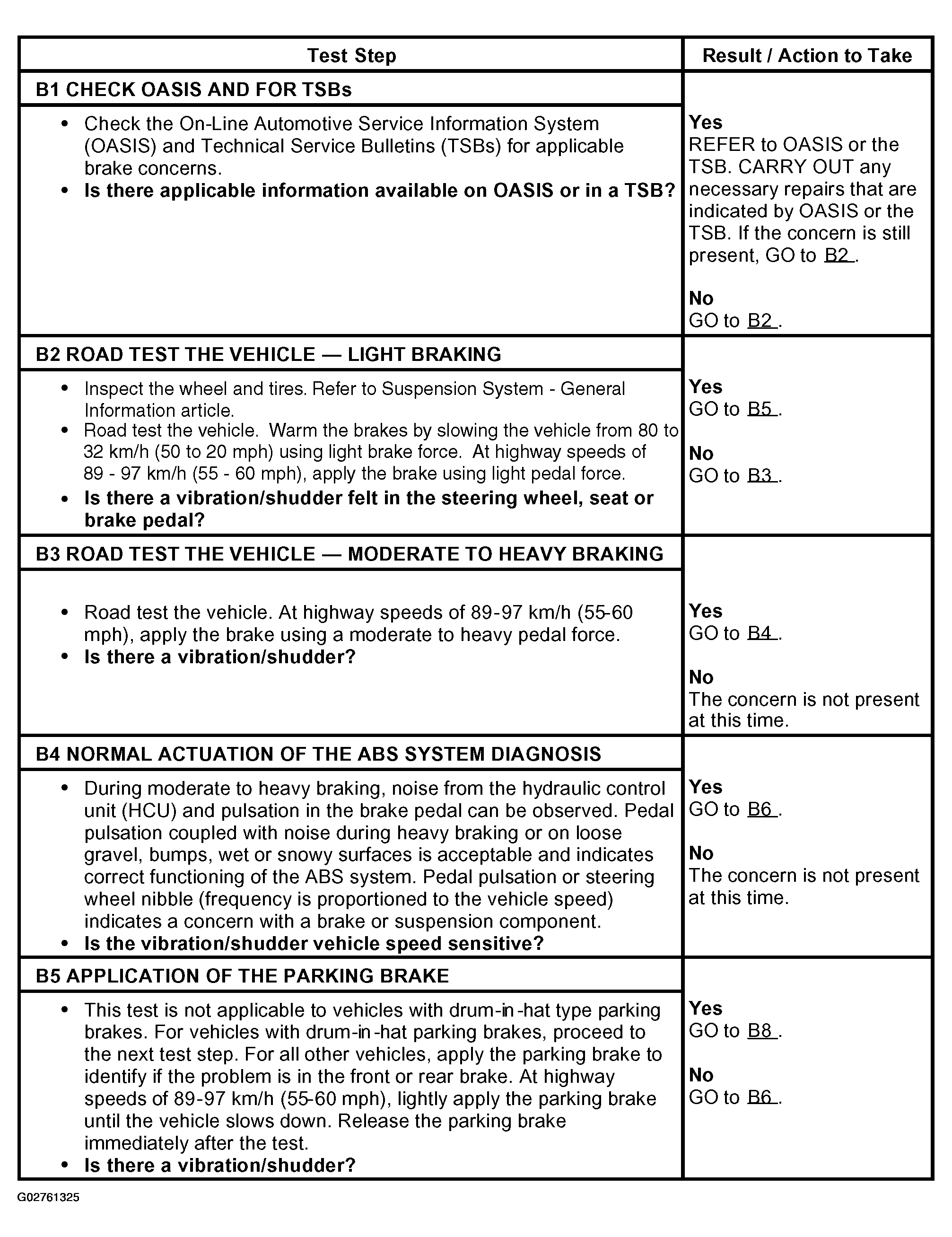

Fig 1: Pinpoint Test B: Vibration When Brakes Are Applied (Step B1-B3)
G02761325Courtesy of FORD MOTOR CO.

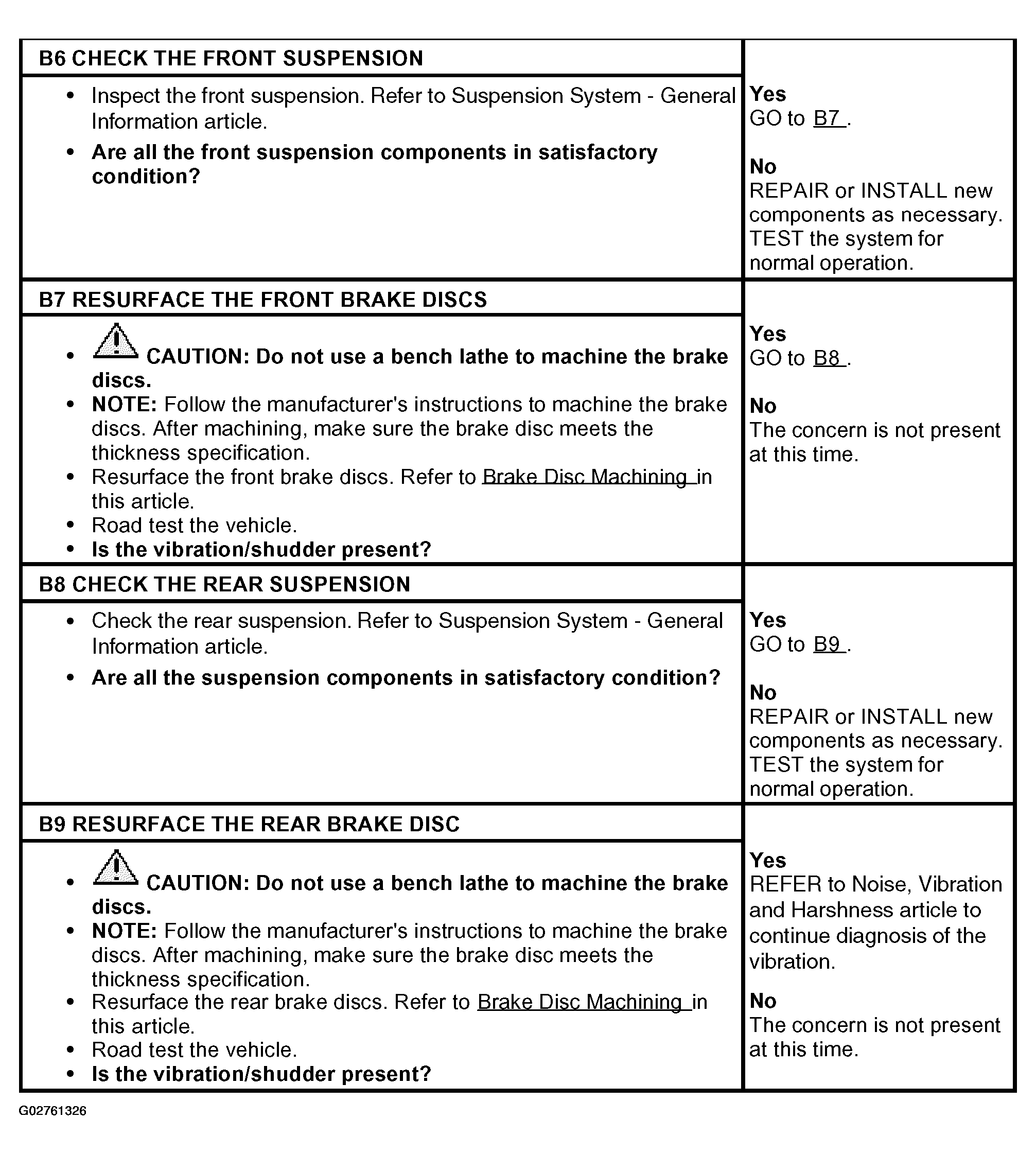

Fig 2: Pinpoint Test B: Vibration When Brakes Are Applied (Step B3 Cont.-B9)
G02761326Courtesy of FORD MOTOR CO.
