Pinpoint Test A: The Red Brake Warning Indicator Is Always On

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

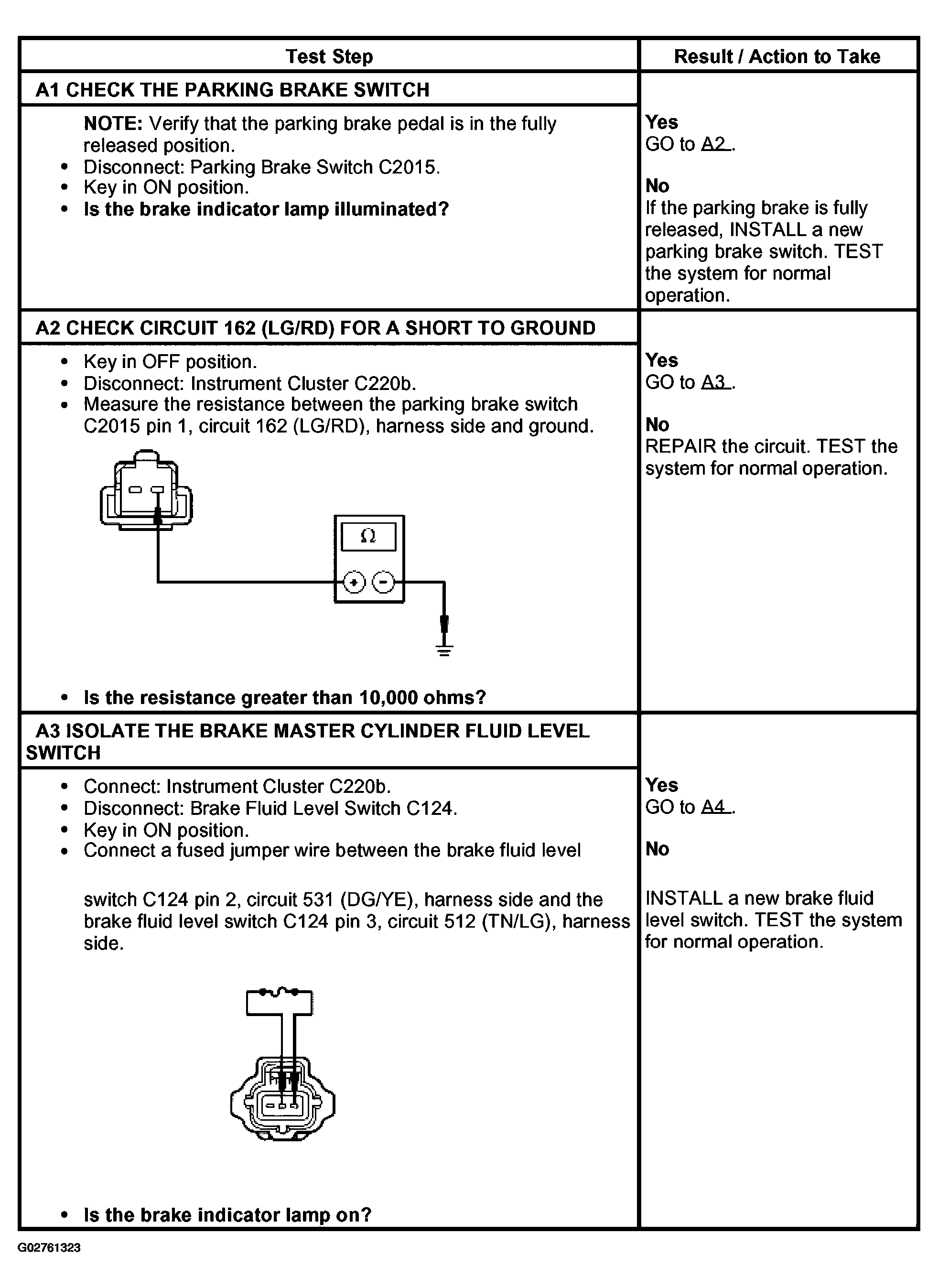

Fig 1: Pinpoint Test A: Red Brake Warning Indicator Is Always On (Step A1-A3)
G02761323Courtesy of FORD MOTOR CO.

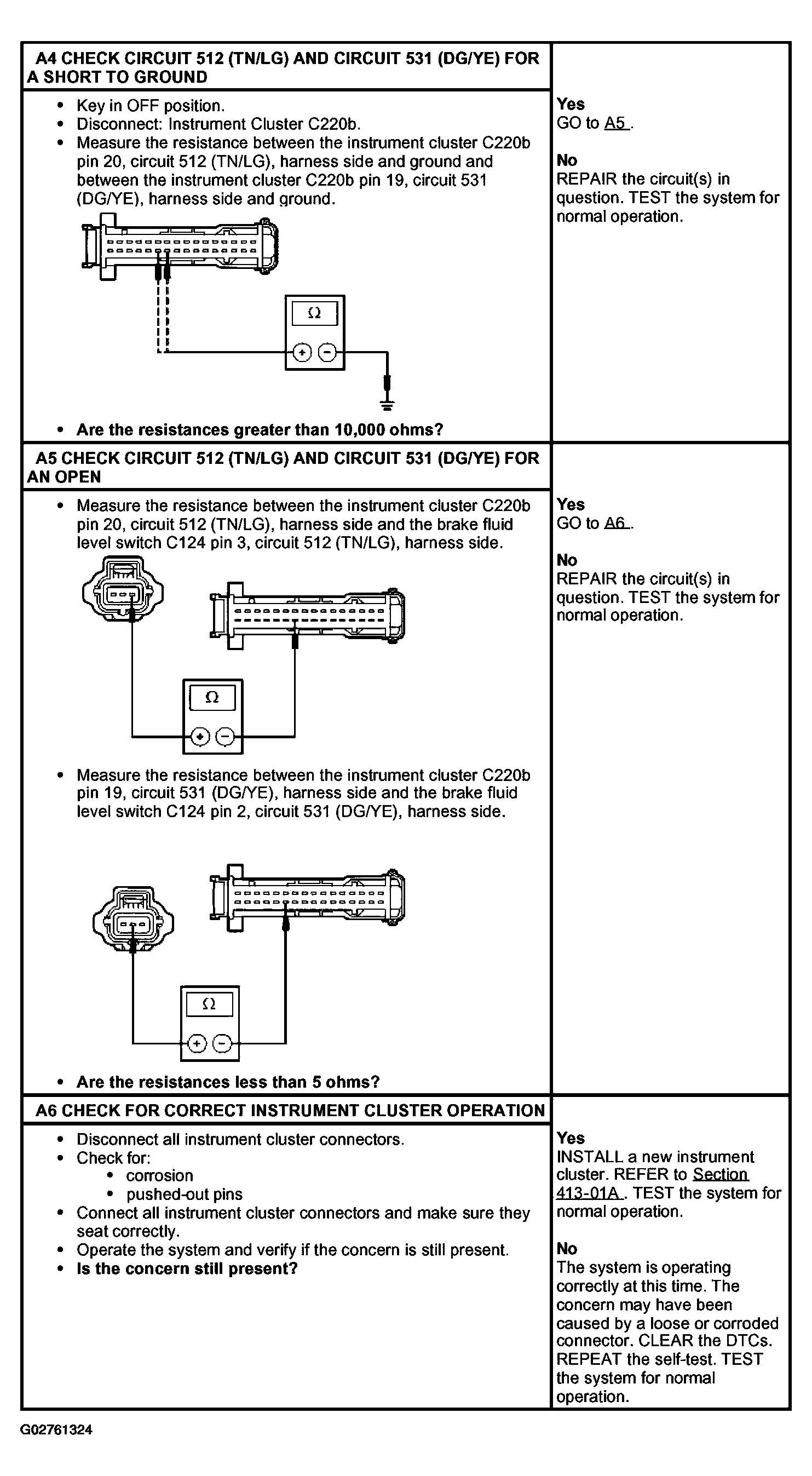

Fig 2: Pinpoint Test A: Red Brake Warning Indicator Is Always On (Step A3Cont.-A6)
G02761324Courtesy of FORD MOTOR CO.
