Differential Carrier: Removal
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the axle shafts. For additional information, refer to AXLE SHAFT .

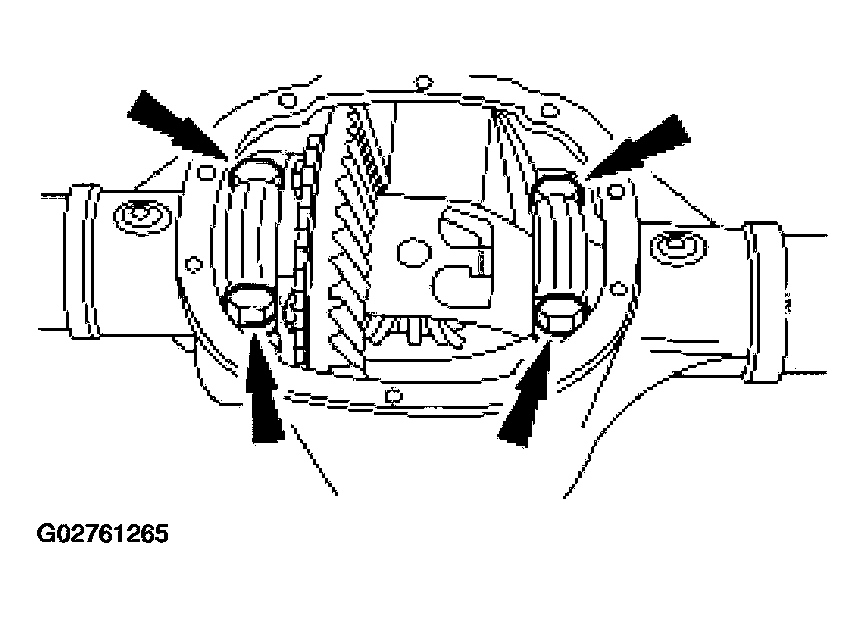

- Remove the differential bearing cap bolts and the differential bearing caps.

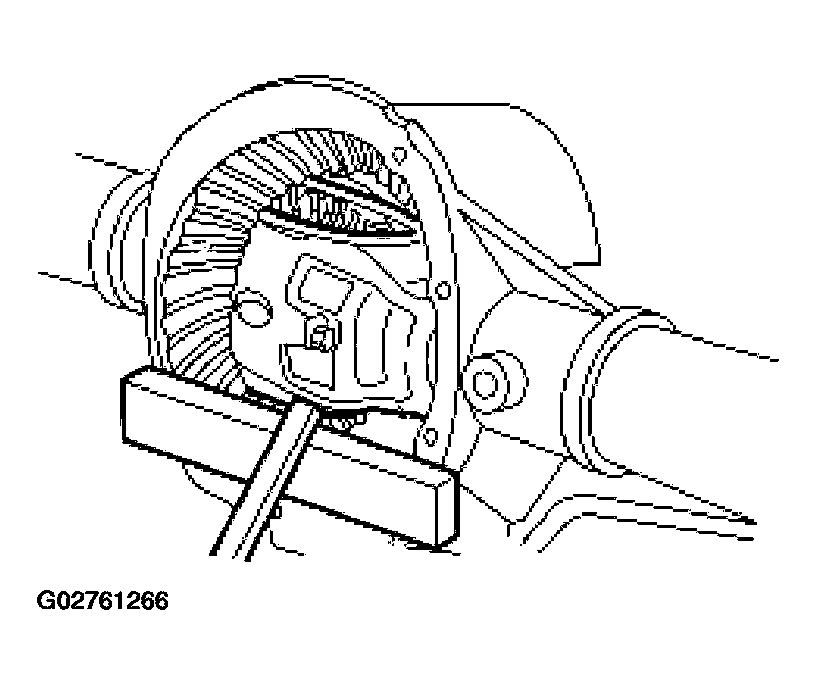

- Using pry bars and wood blocks, remove the differential assembly from the axle housing.
CAUTION:
Index-mark the position of the differential bearing caps, as arrows may not be visible. The differential bearing caps must be installed in their original locations and positions.
WARNING:
Be careful not to allow the differential assembly to fall.
CAUTION:
Place a wood block between the pry bar and the axle housing to protect the machined surface from damage.
CAUTION:
Index-mark the position of the differential bearing shims. The differential bearing shims must be installed in their original locations and positions.
