Rear Wheel Bearing and Axle Shaft Oil Seal: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the new rear wheel bearing with rear axle lubricant.
  2. Using the special tools, install the rear wheel bearing.

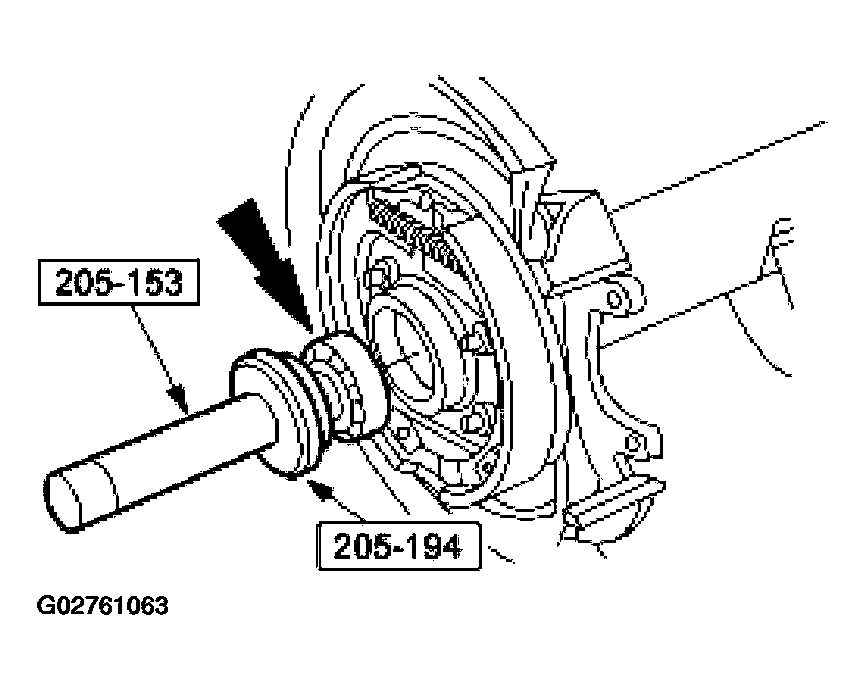

    Fig 1: Installing Rear Wheel Bearing
    G02761063Courtesy of FORD MOTOR CO.
  3. Lubricate the lip of the new wheel bearing oil seal with grease.
  4. Using the special tools, install the wheel bearing oil seal.

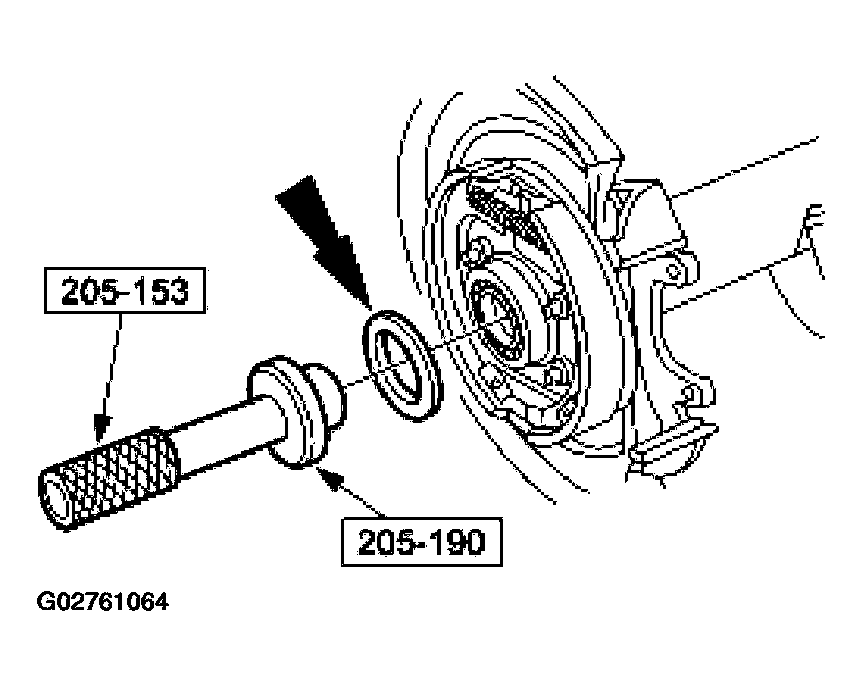

    Fig 2: Installing Wheel Bearing Oil Seal
    G02761064Courtesy of FORD MOTOR CO.
  5. Install the axle shafts. For additional information, refer to AXLE SHAFT .
