SPECIAL TOOL(S)

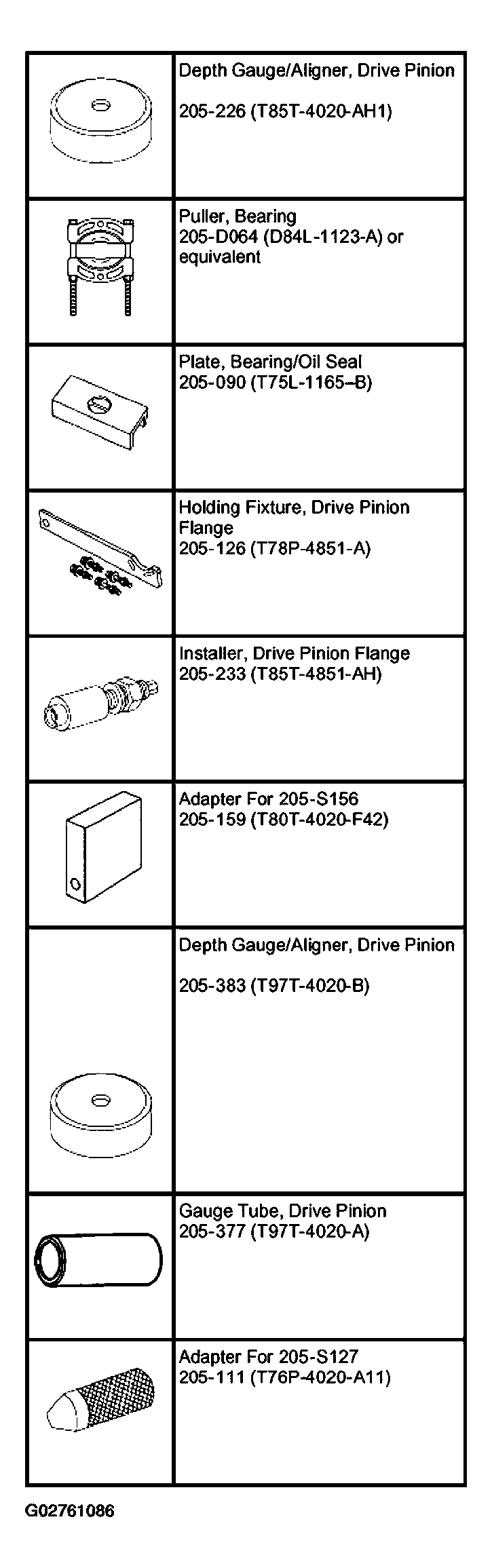

Fig 1: Identifying Special Tools (1 Of 2)
Courtesy of FORD MOTOR CO.

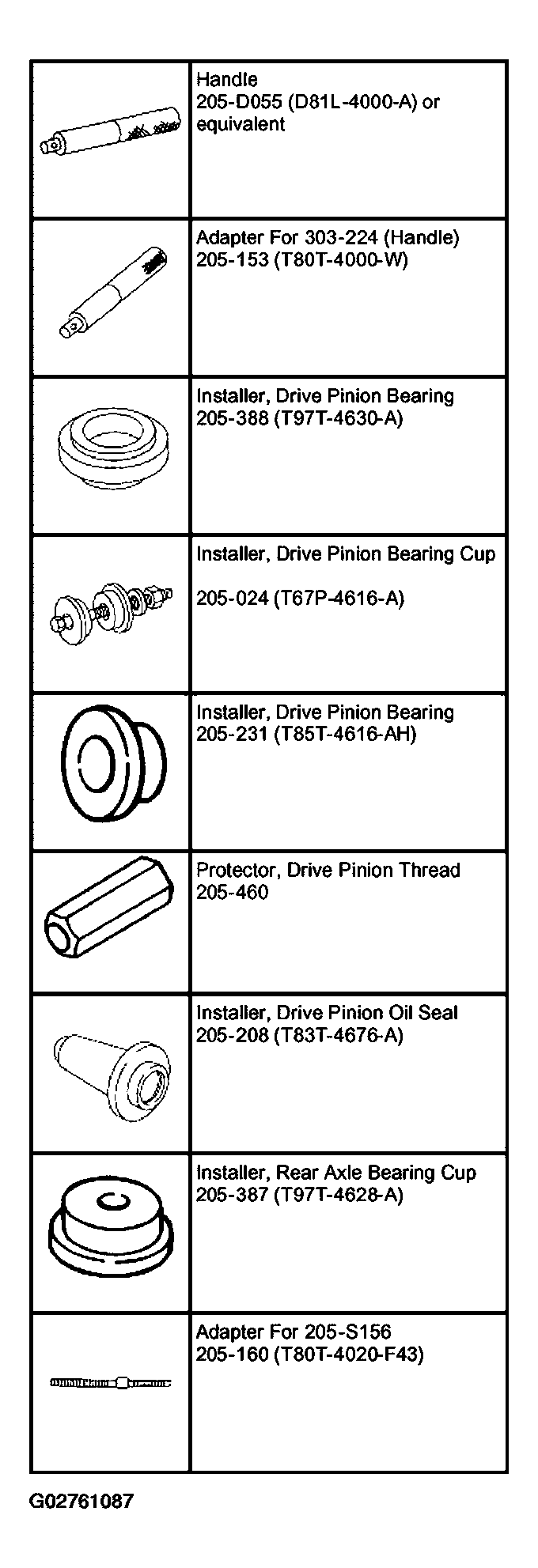

Fig 2: Identifying Special Tools (2 Of 2)
Courtesy of FORD MOTOR CO.
MATERIAL
MATERIAL SPECIFICATION
Item
Specification
SAE 75W-140 High Performance Rear Axle Lubricant XY-75W140-QL
