Drive Pinion Flange: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The rear wheels and disc brake calipers must be removed to prevent brake drag during drive pinion bearing preload adjustment.
  1. Remove the rear disc brake calipers and wire them aside. For additional information, refer to DISC & DRUM .
  2. Mark the driveshaft flange and pinion flange for correct alignment during installation.
    Fig 1: Marking Driveshaft Flange And Pinion Flange For Correct Alignment During Installation
    G02761066Courtesy of FORD MOTOR CO.
  3. Remove and discard the four bolts.

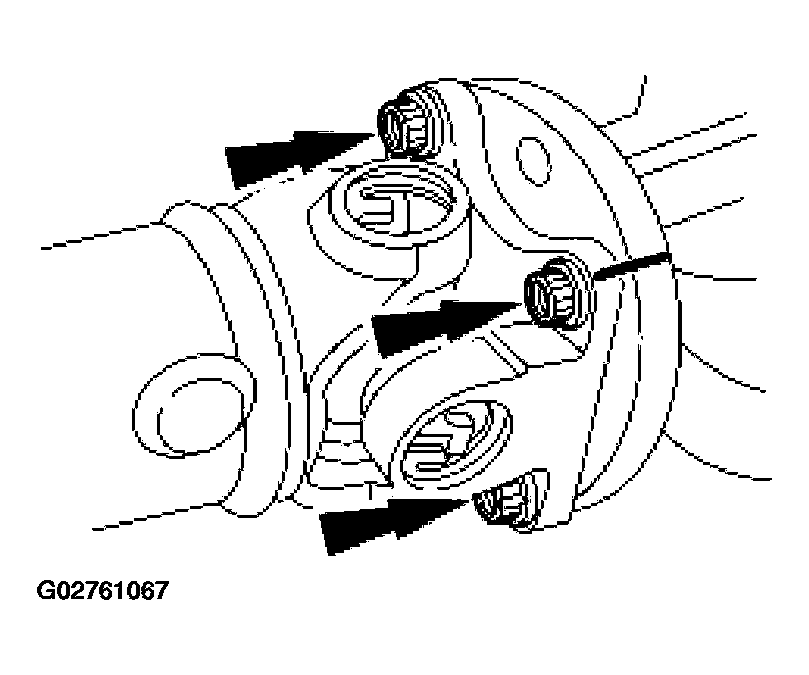

    Fig 2: Removing Driveshaft Flange Bolts
    G02761067Courtesy of FORD MOTOR CO.
  4. CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion flange pilot. Never hammer on the driveshaft or any of its components to disconnect the yoke from the flange. Pry only in the area shown with a suitable tool to disconnect the yoke from the flange.

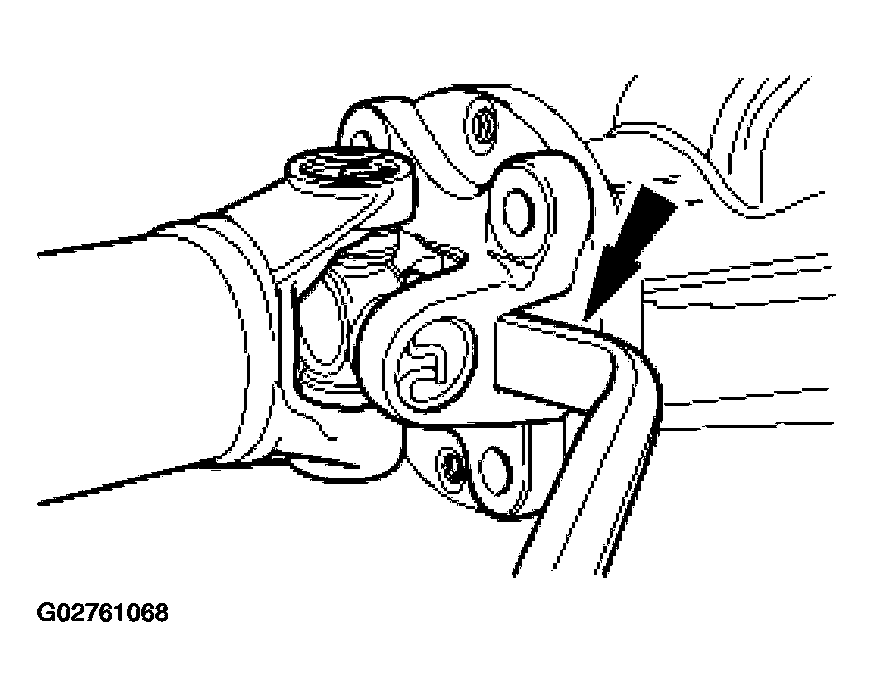

    Fig 3: Disconnecting Driveshaft Centering Socket Yoke From Rear Axle Pinion Flange
    G02761068Courtesy of FORD MOTOR CO.
  5. Using a suitable tool as shown, disconnect the driveshaft centering socket yoke from the rear axle pinion flange.
    • Position the driveshaft out of the way.
  6. Install a torque wrench on the pinion nut and record the torque required to maintain rotation of the pinion through several revolutions.
    Fig 4: Identifying Torque Required To Maintain Rotation Of Pinion
    G02761069Courtesy of FORD MOTOR CO.
  7. CAUTION: After removal of the pinion nut, discard it. A new nut must be used for installation.
    Fig 5: Removing Pinion Nut
    G02761070Courtesy of FORD MOTOR CO.
  8. Using the special tool, hold the pinion flange and remove the pinion nut.
  9. Mark the pinion flange in relation to the drive pinion stem to ensure correct alignment during installation.
    Fig 6: Marking Pinion Flange In Relation To Drive Pinion Stem To Ensure Correct Alignment During Installation
    G02761071Courtesy of FORD MOTOR CO.
  10. Using the special tool, remove the pinion flange.
    Fig 7: Removing Pinion Flange
    G02761072Courtesy of FORD MOTOR CO.
