Axle Shaft: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the wheel and tire assembly. For additional information, refer to WHEELS AND TIRES .
  3. Remove the differential housing cover.
  4. Remove the rear disc brake calipers and wire them aside. For additional information, refer to DISC & DRUM .
    • Remove the rear brake discs.
  5. Remove the differential pinion shaft.
    1. Remove and discard the differential pinion shaft lock bolt.
    2. Remove the differential pinion shaft.
    Fig 1: Removing Differential Pinion Shaft
    G02761054Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not damage the rubber O-rings in the U-washer grooves.

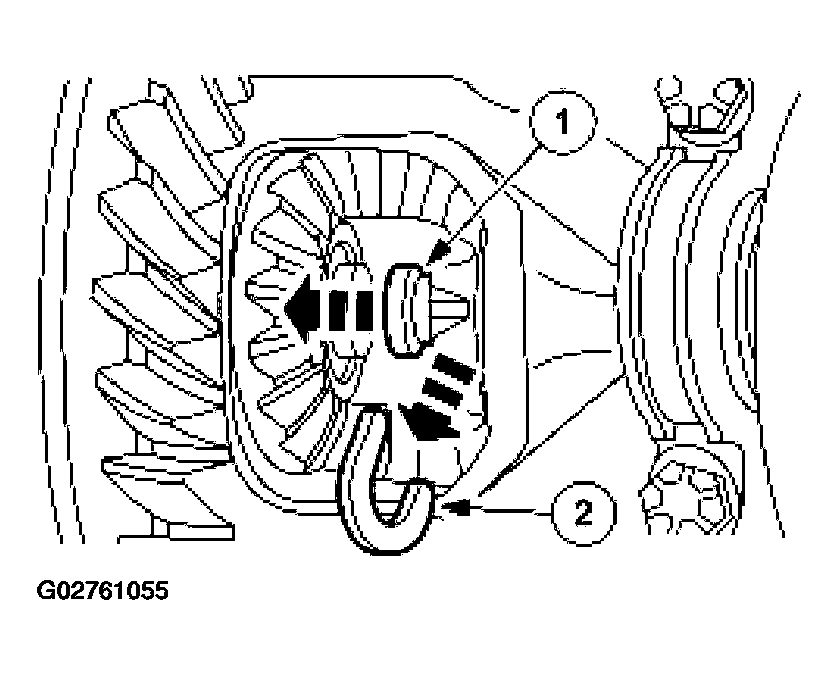

    Fig 2: Removing U-Washers
    G02761055Courtesy of FORD MOTOR CO.
  6. Remove the U-washers.
    1. Push the axle shafts inboard.
    2. Remove the U-washers.
    7. CAUTION: Do not damage the wheel bearing oil seal.

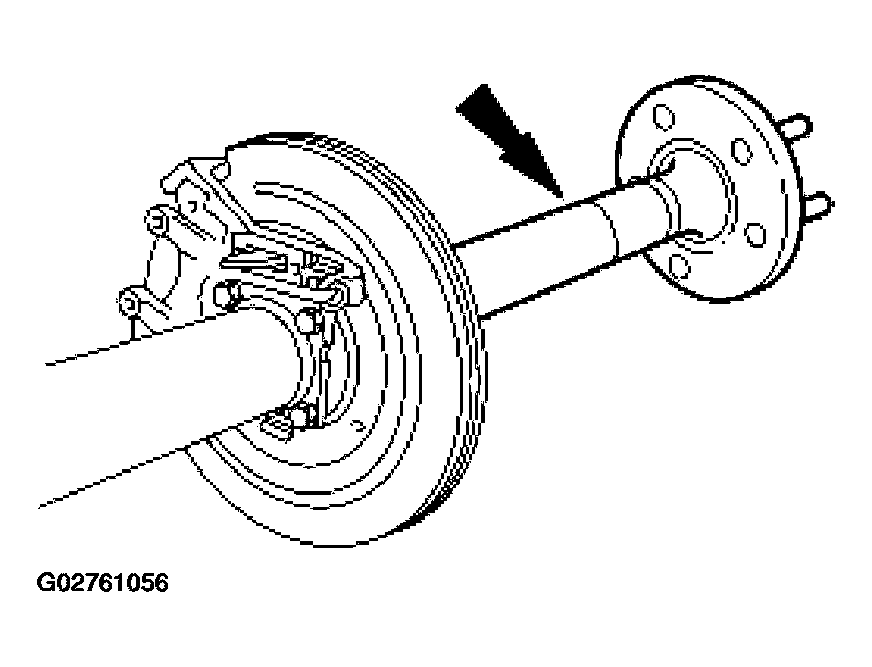

    Fig 3: Removing Two Axle Shafts
    G02761056Courtesy of FORD MOTOR CO.
  7. Remove the two axle shafts.
