Drive Pinion Seal: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pinion flange. For additional information, refer to DRIVE PINION FLANGE .
  2. Using a screwdriver, force the metal flange of the rear axle drive pinion seal up and strike it with a hammer.
    Fig 1: Forcing Metal Flange Of Rear Axle Drive Pinion Seal Up
    G02760819Courtesy of FORD MOTOR CO.
  3. Install gripping pliers and remove the seal.

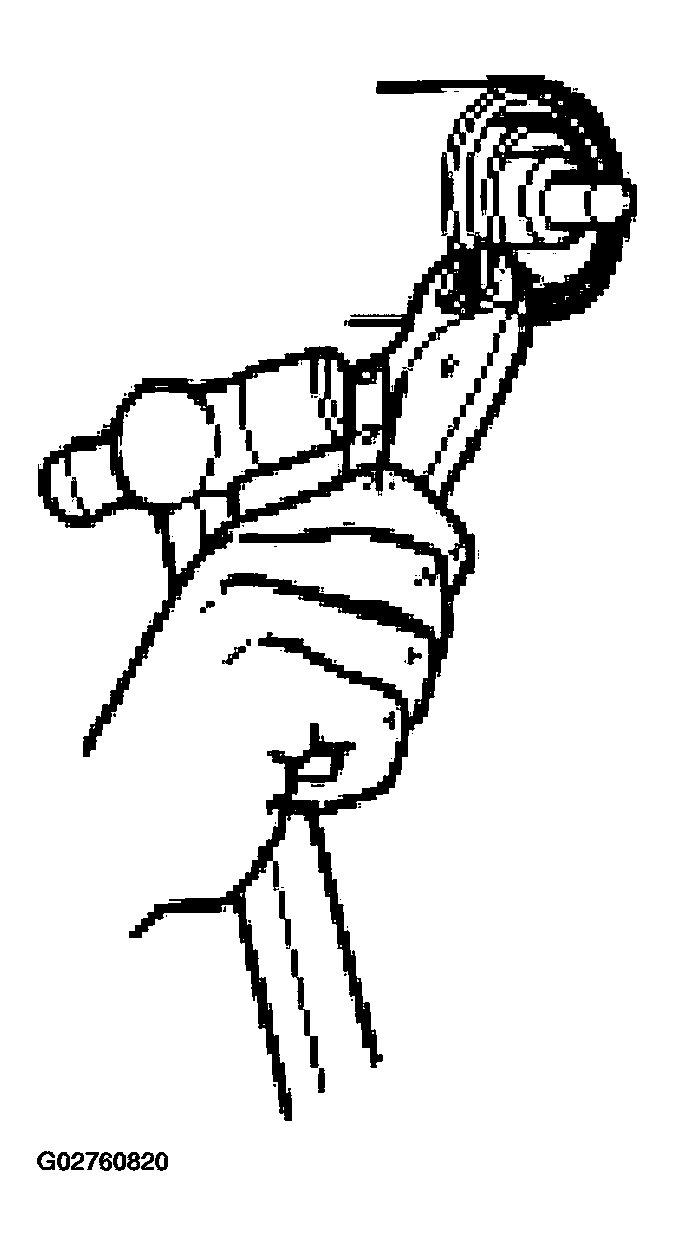

    Fig 2: Removing Seal
    G02760820Courtesy of FORD MOTOR CO.
  4. Discard the seal.
