Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear hub and brake disc assembly. For additional information, refer to HUB .

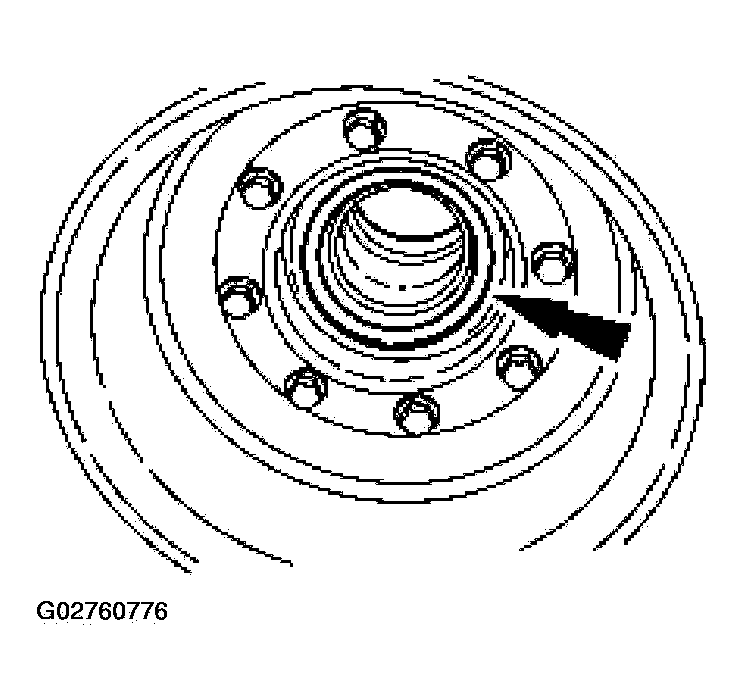

  2. Remove the rear hub seal and the inner rear wheel bearing.
    • Discard the rear hub seal.
    Fig 1: Discarding Rear Hub Seal
    G02760776Courtesy of FORD MOTOR CO.

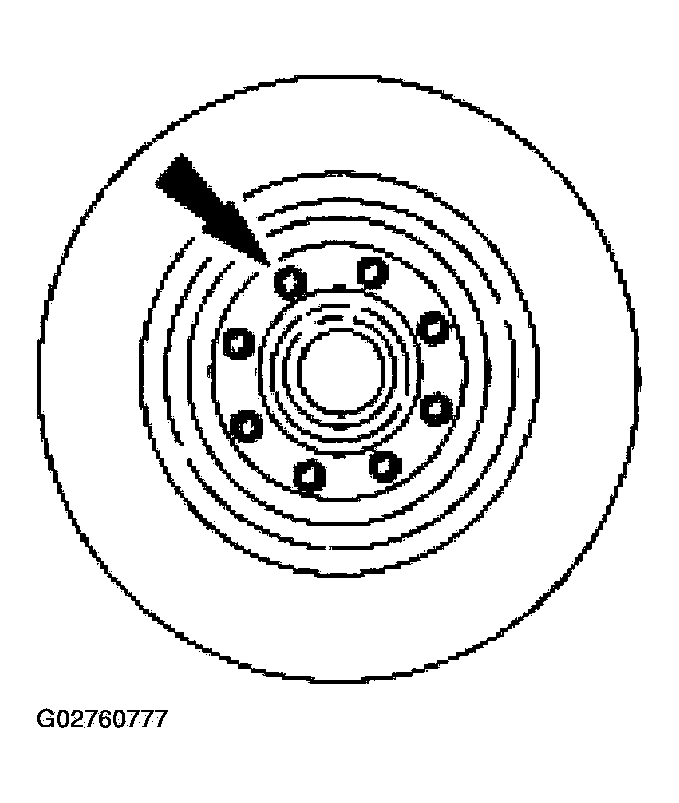

  3. If not done previously, remove the bolts and separate the rear hub from the brake disc.
    Fig 2: Removing Bolts
    G02760777Courtesy of FORD MOTOR CO.
  4. Clean all the old grease and axle lubricant out of the rear hub.

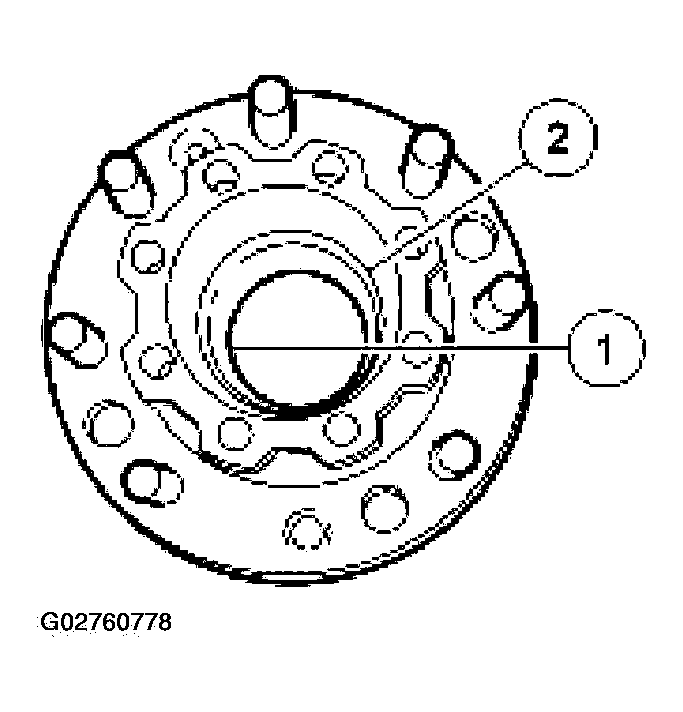

  5. Remove the inner and outer bearing cups.
    1. Use special tools 205-277 and 205-153 to remove the inner bearing cup.
    2. Use special tools 205-275 and 205-153 to remove the outer bearing cup.
    Fig 3: Removing Inner And Outer Bearing Cups
    G02760778Courtesy of FORD MOTOR CO.
  6. Clean the following components:
    • The rear axle housing spindle.
    • All the old grease and axle lubricant from the rear hub.
    • The rear wheel bearings and cups.

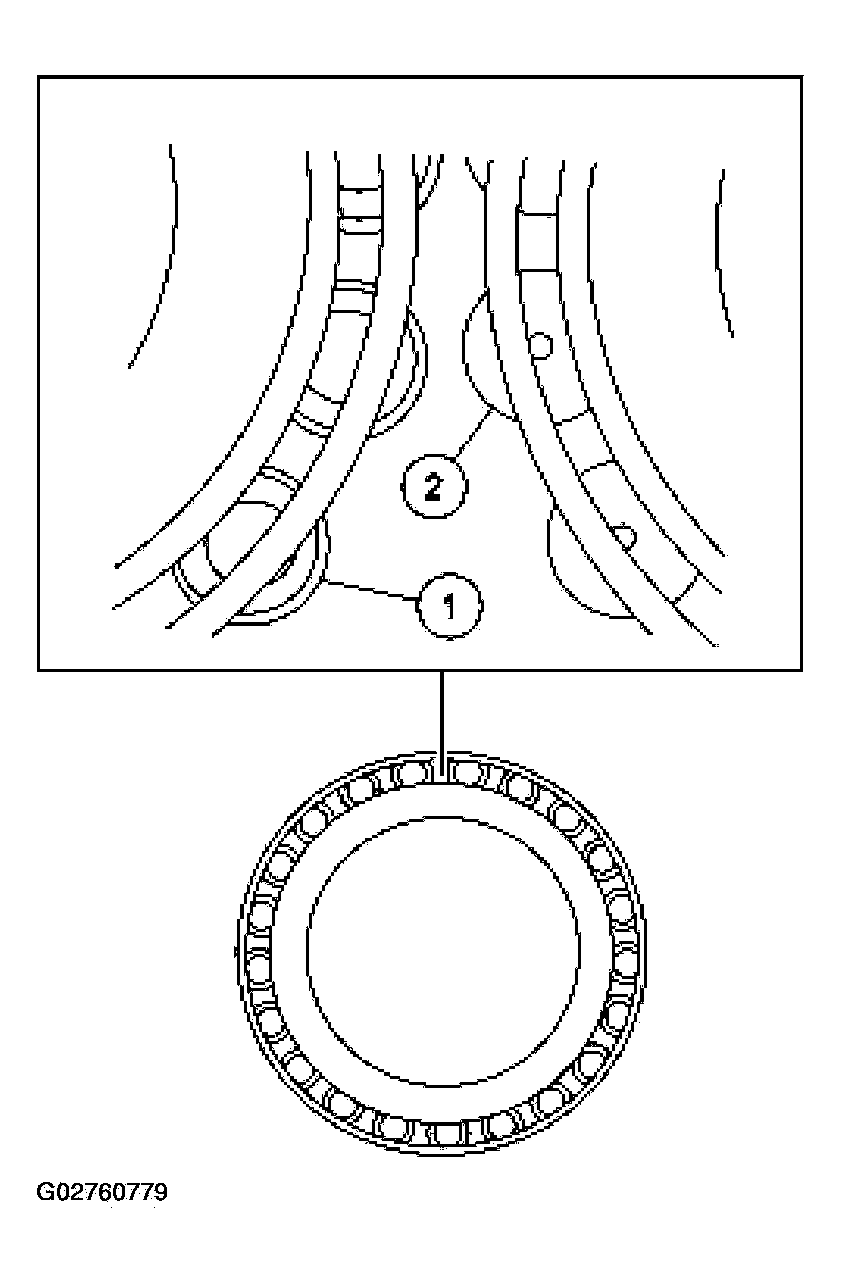

  7. Inspect the bearing races and rollers for pitting, galling or erratic wear patterns. Check the rollers for end wear. Discard the bearings, if necessary.
  1. A typical new bearing roller.
  2. A worn bearing roller.
    Fig 4: Inspecting Bearing Races And Rollers
    G02760779Courtesy of FORD MOTOR CO.
